ASUS CUSL2 User’s Manual
3. HARDWARE SETUP
20
Motherboard Settings
3. H/W SETUP
3) Onboard Audio CODEC Setting (ADN#)
(available on audio model only)
The onboard audio CODEC may be enabled or disabled using all of these jump-
ers. Disable the onboard audio CODEC if you are using an ISA or PCI audio
card on any of the expansion slots or a primary audio/modem CNR on a CNR
slot (see CNR Slot later in this section). If using a PCI audio expansion card,
Onboard AC97 Audio Controller in 4.4.2 I/O Device Configuration must
also be disabled.
Setting ADN#
Enable [1-2] (default)
Disable [2-3]

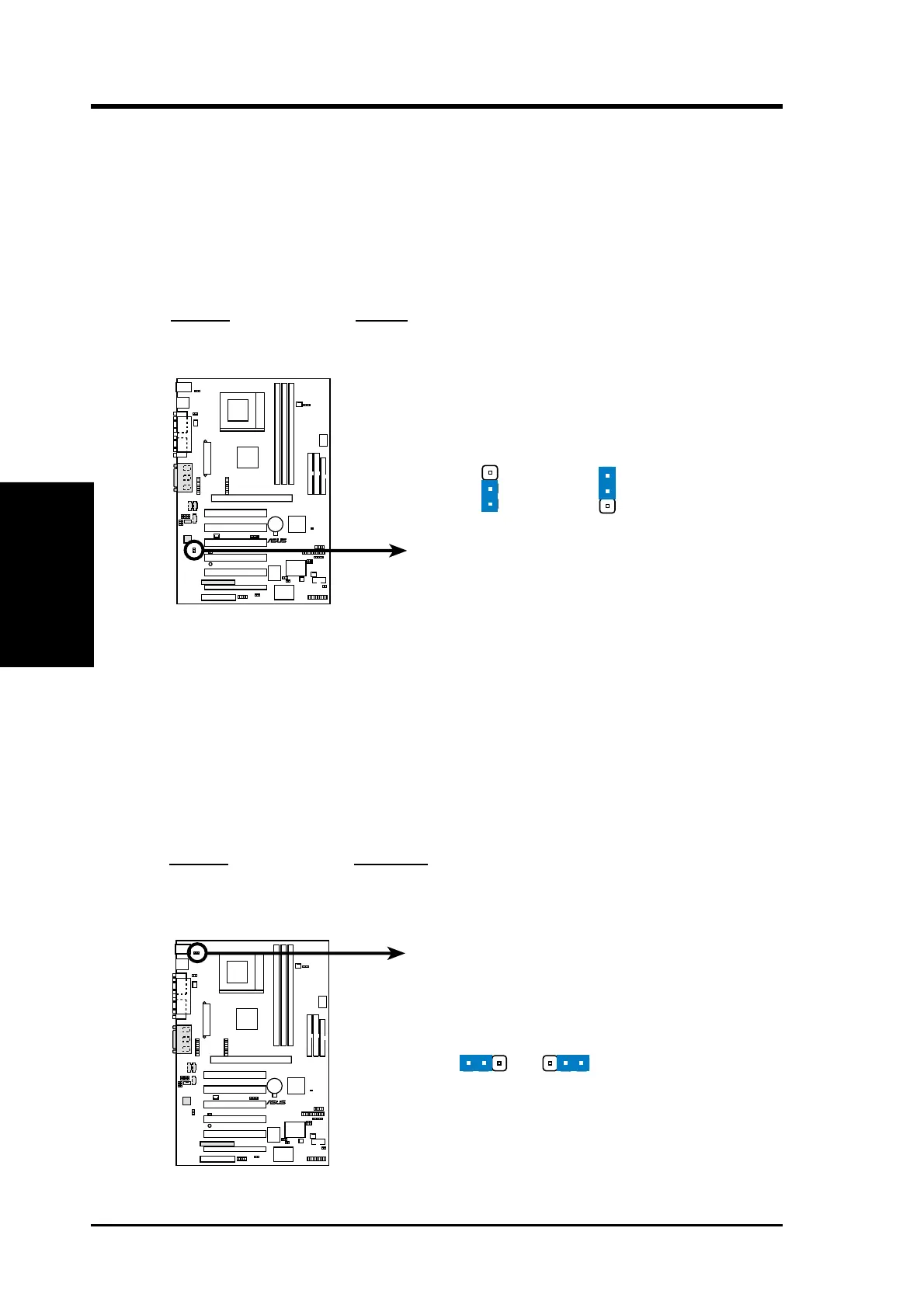

CUSL2 Audio Codec Setting
DisableEnable
(Default)
1
2
2
3
ADN#
ADN#
CUSL2
®
4) Keyboard Power Up (KBPWR)
This allows you to disable or enable the keyboard power up function. Set this
jumper to Enable if you wish to use your keyboard (by pressing <Spacebar>) to
power up your computer. This feature requires an ATX power supply that can
supply at least 300mA on the +5VSB lead. The default is set to Disable because
not all computers have the appropriate ATX power supply. Your computer will not
power ON if you set this to Enable but do not have the appropriate ATX power
supply. NOTE: This jumper must be set in conjunction with Wake On PS2 KB/
PS2 Mouse/CIR in 4.5.1 Power Up Control.
Setting KBPWR
Enable [1-2] (default)
Disable [2-3]
CUSL2 Keyboard Power Setting
Enable Disable
12
2
3
KBPWR
CUSL2
®
