Motherboard Settings
Motherboard Frequency Settings (DIP Switches)
The motherboard frequency is adjusted through the DIP switches. The white block
represents the switch’s position. The example below shows all the switches in the
OFF position.

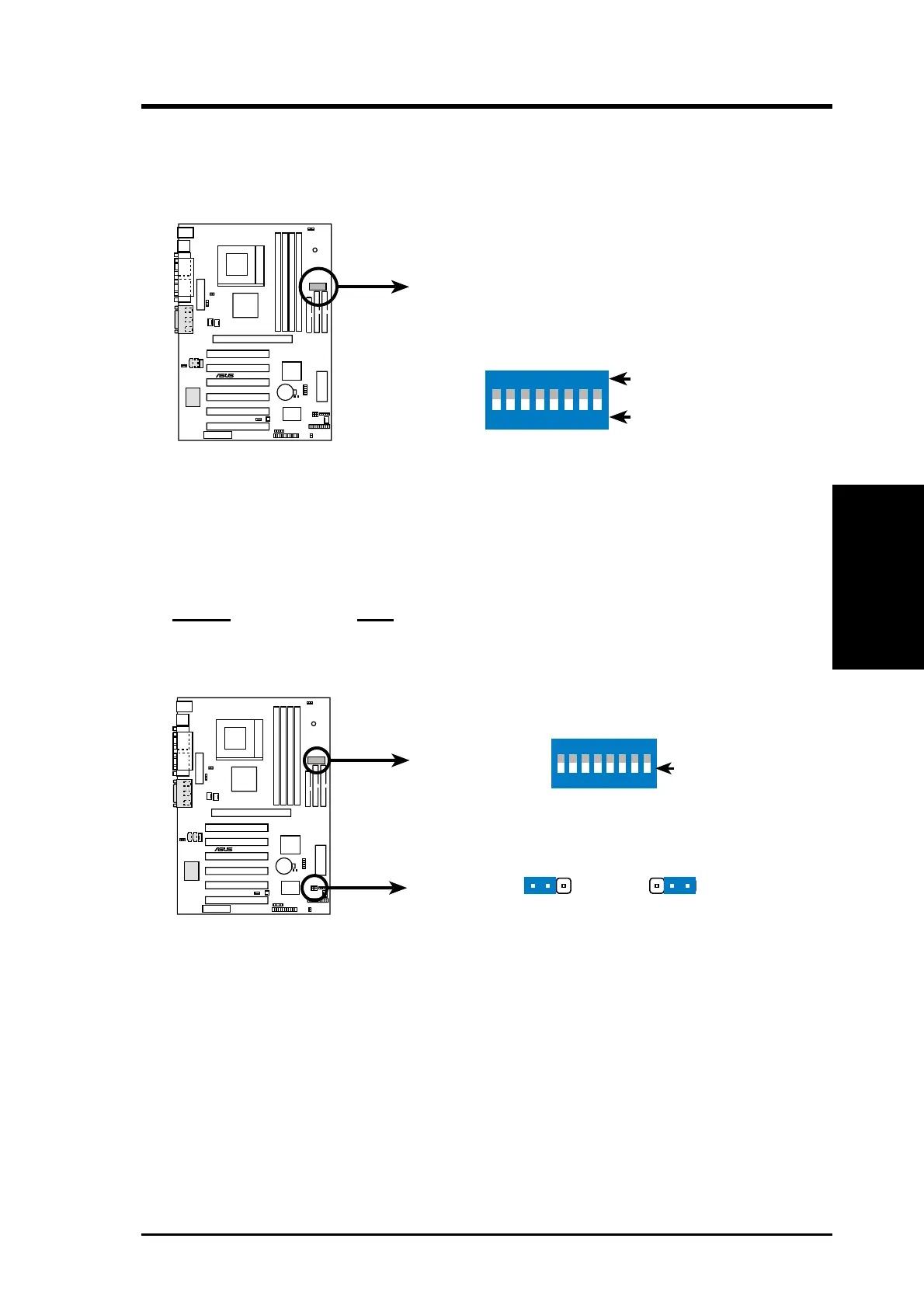

1) JumperFree™ Mode (JEN)
This jumper allows you to enable or disable the JumperFree™ mode. The
JumperFree™ mode allows processor settings to be made through the BIOS
setup (see 4.4 Advanced Menu).
Setting JEN
Enable (JumperFree) [2-3] (default)
Disable (Jumper) [1-2]
NOTE: In JumperFree™ mode, set all DIP switches (DIP_SW) to OFF.
CUV4X-E
®
CUV4X-E JumperFree™ Mode Setting
Jumper
Mode
JumperFree
Mode
(Default)
23
JEN
12
ON
12345678
OFF
DIP_SW
CUV4X-E DIP Switches
ON
12345678
OFF
ON
< Frequency Multiple < Frequency Multiple < Frequency Multiple < Frequency Multiple < Frequency Selection < Frequency Selection < Frequency Selection < Frequency Selection
