Assembly procedure

3 - 3

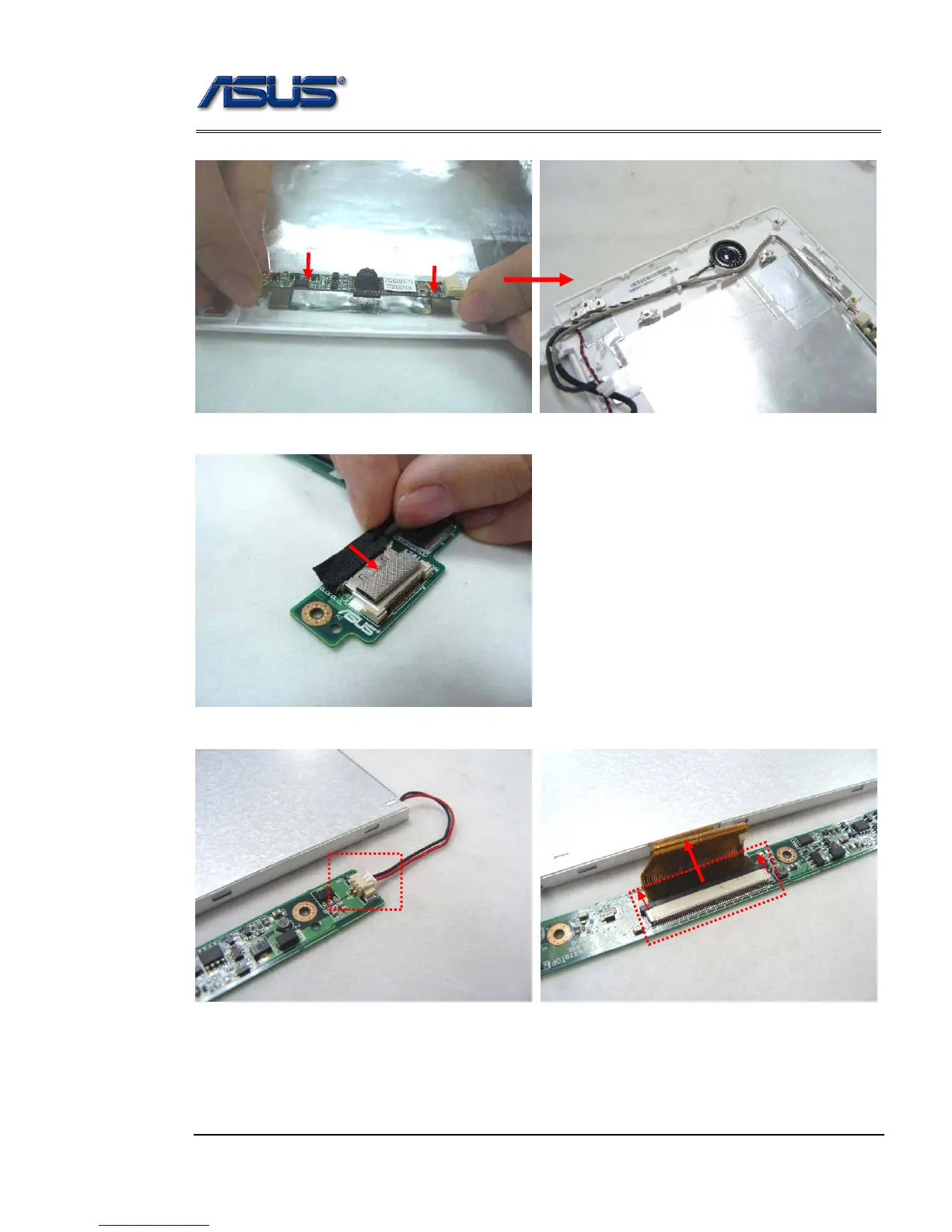

3. Install the camera board on LCD back cover, pay attention to the aiming pole.

4. Connect the coaxial cable with inverter board.

5. Connect the inverter cable, LCD FPC cable with inverter board.
