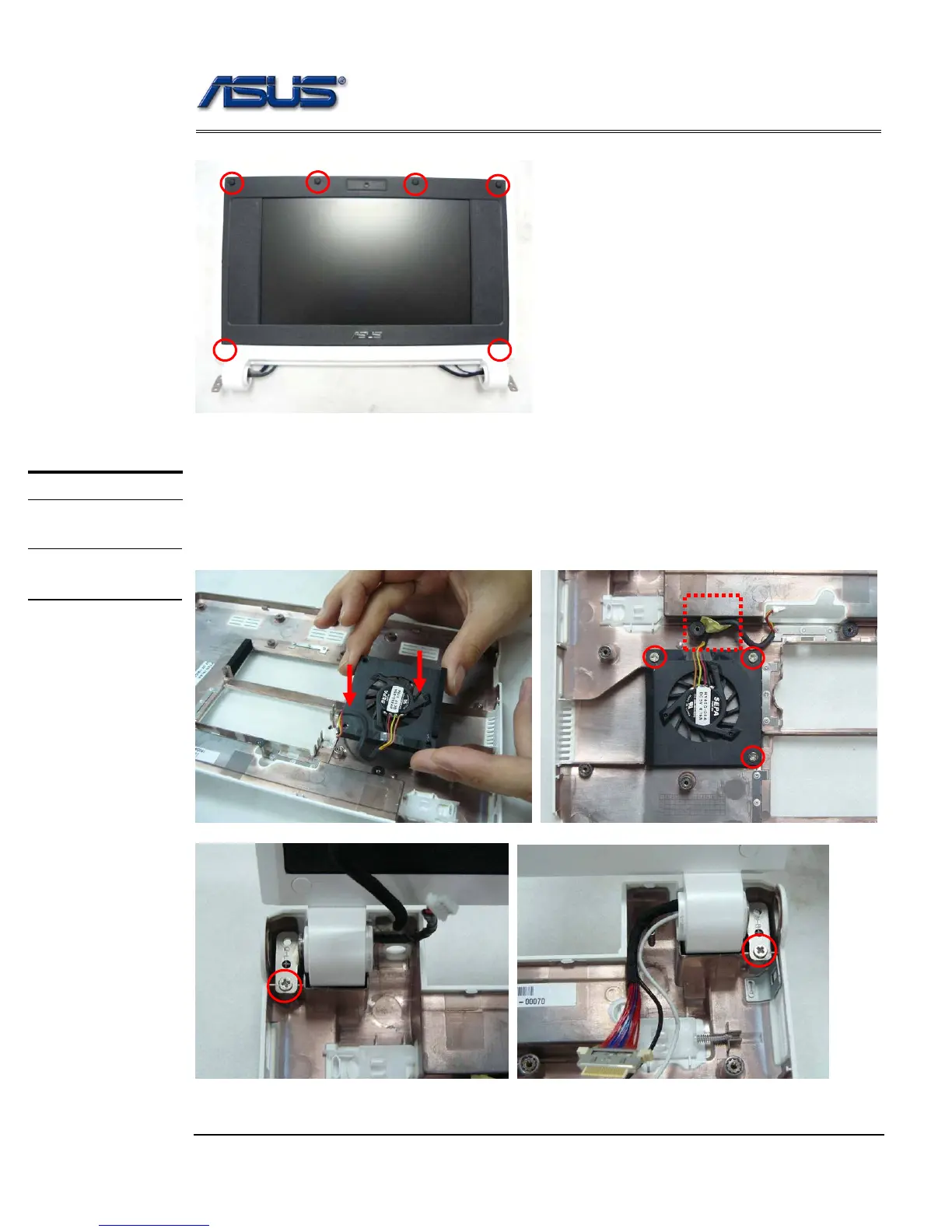

Asus Eee PC 4G - Motherboard

Assembly procedure
3 - 5
9. Secure 6 screws (M2*4)on LCD front bezel and then fix 6 rubber pads on it.
Motherboard
The illustrations below show how to assemble and install the motherboard of the Eee
PC 4G (701).
1. Install the Fan module on bottom case, secure 3 screws on it and fix 1 piece of tape on the cable.
2. Hold the LCD to fix its hinges on bottom case and then secure 2 screws(M2*4).
MOTHERBOARD
MOTHERBOARD
ASSEMBLY
