Assembly procedure
3 - 10
Top case Module

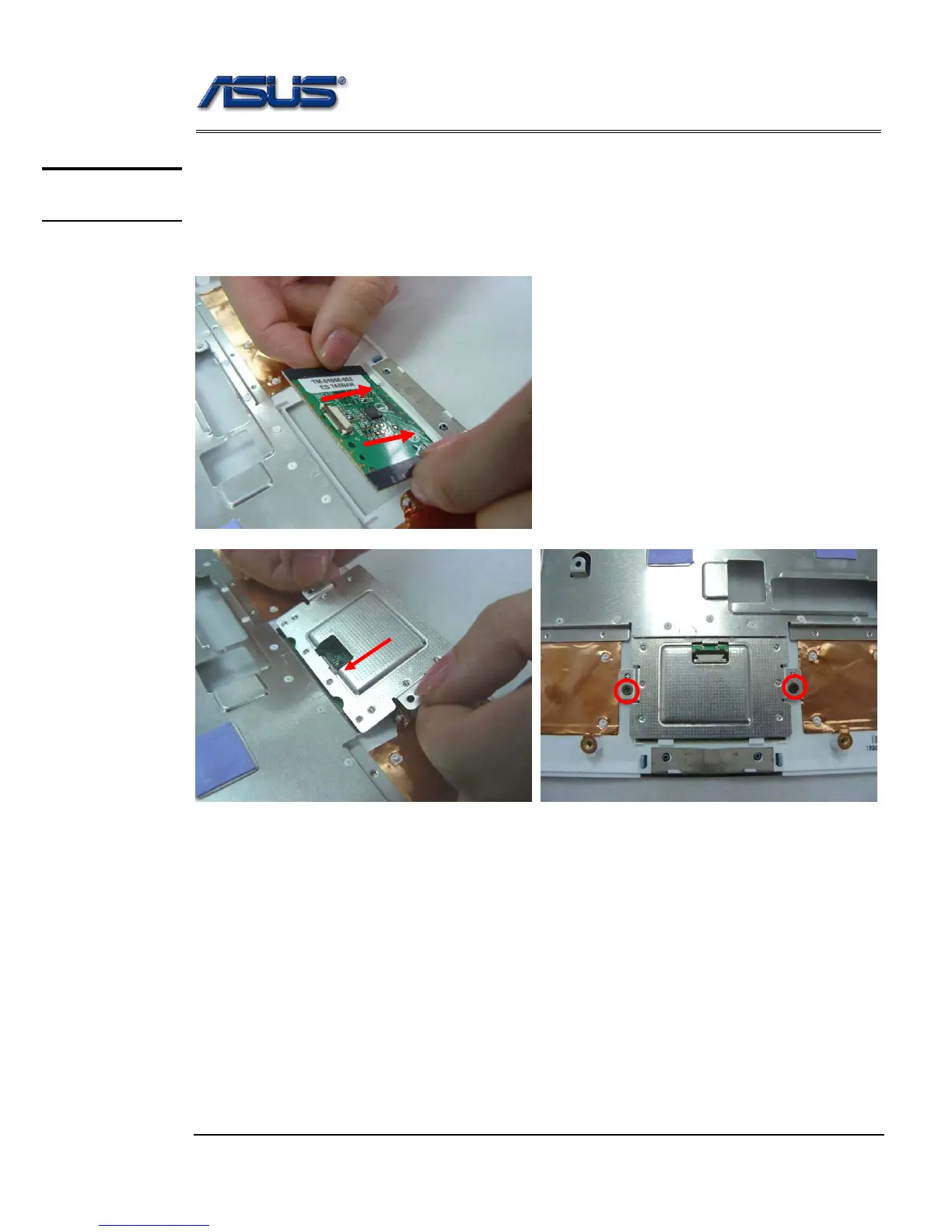

The illustrations below show how to assemble and install the top case module of the
Eee PC 4G (701).
1. Install the touch pad board on top case.
2. Install the touch pad bracket and then secure 2 screws (M2*4) on it.
TOP CASE
MODULE
