ASUS H110M-C D3
1-3

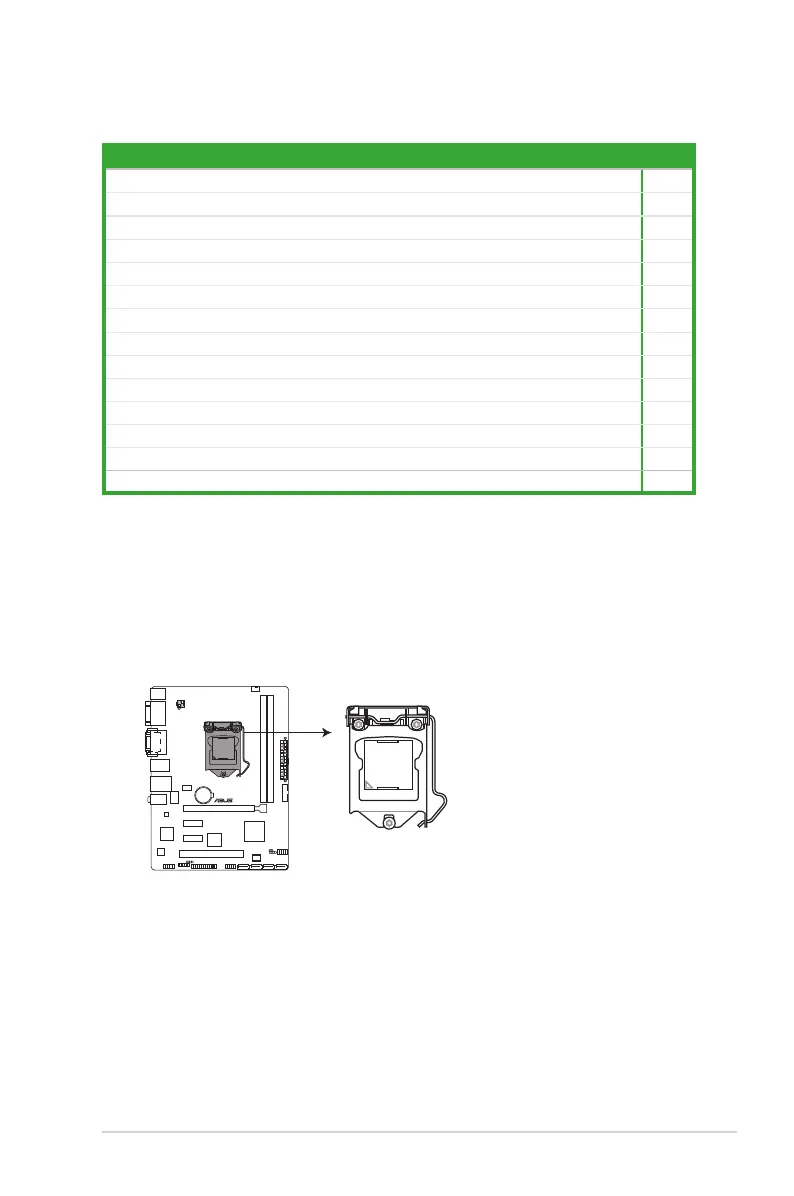

1.2.4 Layout contents
1.3 Central Processing Unit (CPU)
ThismotherboardcomeswithasurfacemountLGA1151socketdesignedforthe6th
GenerationIntel
®
Core™i7/Core™i5/Core™i3,Pentium
®
andCeleron
®
processors.
Connectors/Jumpers/Slots/LED Page
1.
ATXpowerconnectors(24-pinEATXPWR,4-pinATX12V)
1-17
2.
CPUandchassisfanconnectors(4-pinCPU_FAN,4-pinCHA_FAN)
1-14
3.
Intel
®
LGA1151CPUsocket
1-3
4. DDR3DIMMslots 1-7
5. USB3.0connector(20-1pinUSB3_12) 1-16
6. ClearRTCRAM(2-pinCLRTC) 1-11
7. Systempanelconnector(10-1pinF_PANEL)
1-19
8. Speakerconnector(4-pinSPEAKER) 1-17
9. Intel
®
H110SerialATA6.0Gb/sconnector(7-pinSATA6G_1~4) 1-18
10. USB2.0connectors(10-1pinUSB910) 1-16
11. LPTconnector(26-1pinLPT) 1-15
12. Chassisintrusionconnector(4-1pinCHASSIS) 1-12
13. TPMconnector(14-1pinTPM) 1-20
14. Frontpanelaudioconnector(10-1pinAAFP) 1-18
H110M-C D3
H110M-C D3 CPU socket LGA1151

Asus H110M-C D3 Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM, DDR3L-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1333, 1600 MHz
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Intel® Core i3/i5/i7/i9 series	i3-6xxx, i5-6xxx, i7-6xxx
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	16 Mbit
USB 2.0 connectors	1
Number of SATA III connectors	4
Number of Parallel ATA connectors	0
Supported storage drive interfaces	SATA III
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H110
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Maximum graphics card memory	1024 MB
Parallel processing technology support	-

Weight and Dimensions

Depth	182 mm
Width	244 mm
