Asus H110T User Manual

ASUS H110T
1-1
Product introduction
1

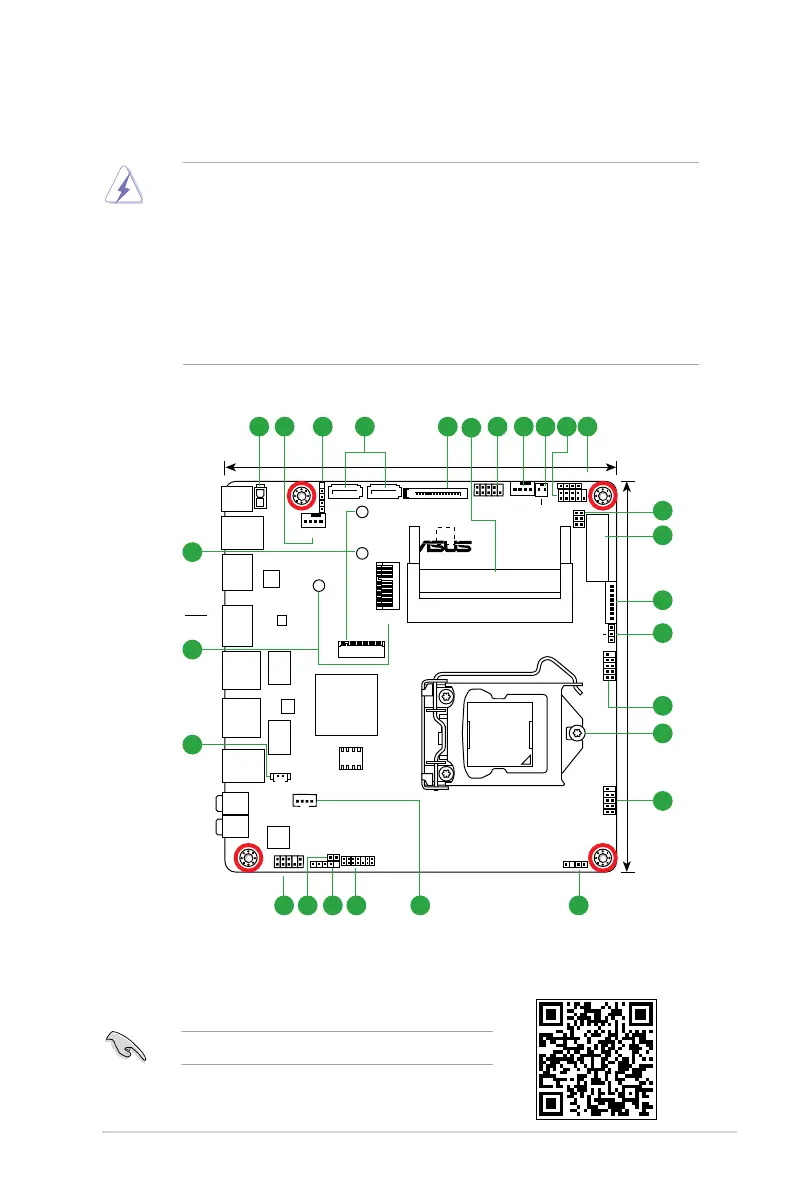

Motherboard overview
 Unplug the power cord from the wall socket before touching any component.
 Before handling components, use a grounded wrist strap or touch a safely grounded
object or a metal object, such as the power supply case, to avoid damaging them due
to static electricity.
 Before you install or remove any component, ensure that the ATX power supply is
switched off or the power cord is detached from the power supply. Failure to do so
may cause severe damage to the motherboard, peripherals, or components.
 Unplug the power cord before installing or removing the motherboard. Failure to do so
can cause you physical injury and damage to motherboard components.
Place this
side towards
the rear of the
chassis
H110T
F_PANEL
SPEAKER
COM
SATA_PWRCON
AAFP
LINE_OUT
LAN1
LAN2
DP
HDMI
USB3_34
USB3_12
DC_PWR
MIC IN
CLRTC
CPU_FAN
CHA_FAN
ALC
887
17cm(6.7in)
17cm(6.7in)
PANEL_SW
LCD_BLKT_PANEL
LVDS
SATA6G_1 SATA6G_2
2260
2242
DMIC
USB9
VCC_PWR_SEL
CHASSIS
BLKT_PWR_SEL
SPK_OUT
ATX19V1
DDR4 DIMM_B1 (64bit, 260-pin module)
M.2(WIFI)
DDR4 DIMM_A1 (64bit, 260-pin module)
USB56 USB78
BATT_CON
ASM
1442K
Realtek
8111H
LGA1151
Intel
®
H110
Intel
®
I219
Super
I/O
TPM
128Mb
BIOS
M.2(SOCKET3)
LANGuardLANGuard
832 5
6
71
3
12
11
15
3
14
13
1819 1721 20
1092
16
22
24
23
4
Scan the QR code to get the detailed pin denitions.

Asus H110T Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	2133 MHz
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Intel® Core i3/i5/i7/i9 series	i3-6xxx, i5-6xxx, i7-6xxx
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
Supported storage drive interfaces	M.2, SATA III
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
LAN controller	Intel I219-V, Realtek RTL8111H
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H110
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	1024 MB
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	16 Mbit
Cables included	SATA

Weight and Dimensions

Width	170 mm
