ASUS H81T
1-3

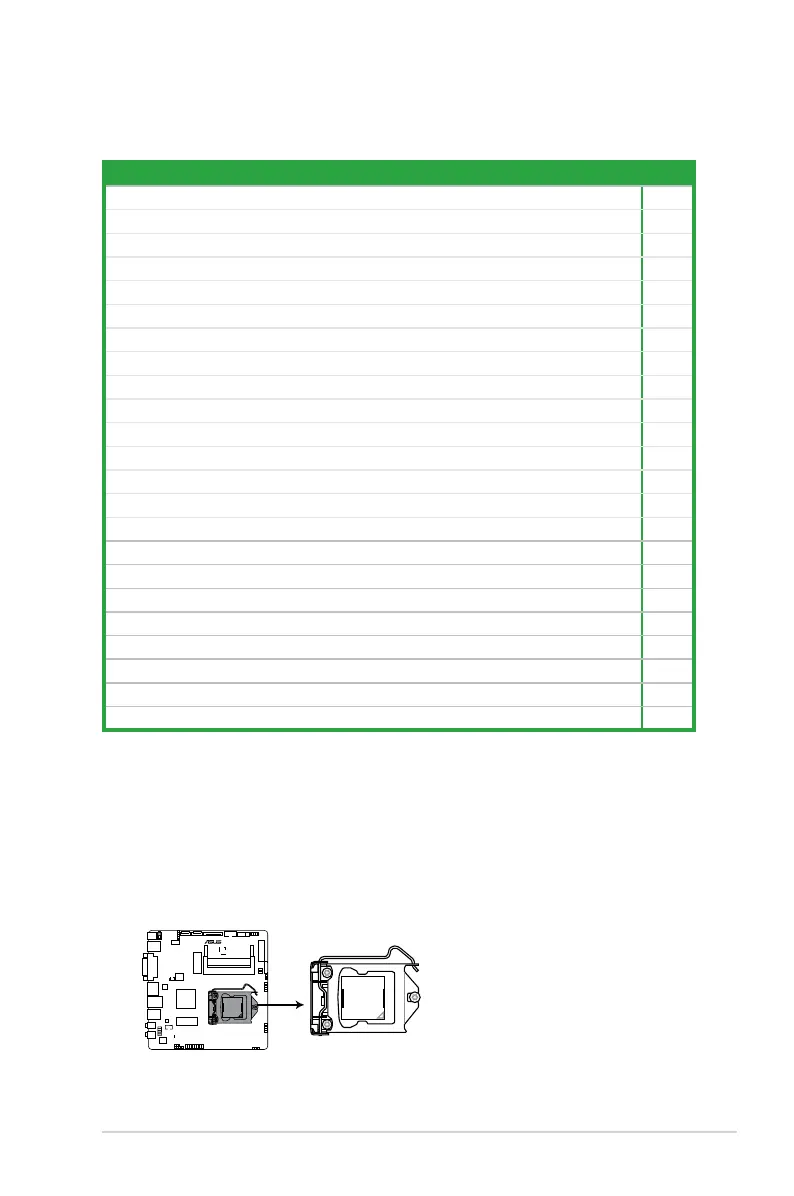

1.2.4 Layout contents
Connectors/Jumpers/Slots/LED Page
1. ATX power connector (2-pin ATX19V1) 1-15
2. CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN) 1-13
3. USB 2.0 connectors (5-1 pin USB11, 10-1 pin USB910, 10-2 pin USB56) 1-16
4. Intel
®
H81 Serial ATA 6.0Gb/s connector (7-pin SATA6G_1 [yellow]) 1-14
5. Intel
®
H81 Serial ATA 3.0Gb/s connector (7-pin SATA3G_1 [brown]) 1-14
6. SATA power connector (15-pin SATA_PWRCON) 1-15
7. DDR3 SO-DIMM slots 1-7
8. Serial port connector (10-1 pin COM) 1-13
9. Display panel power button (2 pin PANEL_SW) 1-17
10. System panel connector (10-1 pin F_PANEL) 1-17
11. LVDS connector (30-pin LVDS) 1-18
12. Flat panel display brightness (8-pin LCD_BLKT_PANEL) 1-18
13. Display panel backlight power selector (3-pin BLKT_PWR-SEL) 1-11
14. Display panel VCC power selector (6-pin VCC_PWR_SEL) 1-11
15. Chassis intrusion connector (4-1 pin CHASSIS) 1-11
16. Intel
®
LGA1150 CPU socket 1-3
17. Onboard LED (SB_PWR) 1-19
18. TPM header (20-1 pin TPM) 1-16
19. DMIC connectors (5-1 pin DMIC) 1-18
20. Clear RTC RAM (3-pin CLRTC) 1-10
21. Front panel audio connector (10-1 pin AAFP) 1-15
22. Internal Stereo Speaker connector (4-pin SPK_OUT) 1-19
23. RTC battery header (2-pin BATT_CON) 1-18
1.3 Central Processing Unit (CPU)
This motherboard comes with a surface mount LGA1150 socket designed for the Intel 4th
generation Core™ i7 / Core™ i5 / Core™ i3, Pentium
®
, Celeron
®
processors.
H81T
H81T CPU socket LGA1150

Asus H81T Specifications

General

Memory channels	Dual-channel
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
CPU fan connector	Yes
USB 2.0 connectors	3
Number of COM connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
Supported storage drive interfaces	SATA II, SATA III
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek 8111G
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC887-VD
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H81
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	Not supported
BIOS type	AMI
ACPI version	2.0a
BIOS memory size	64 Mbit
Cables included	SATA

Weight and Dimensions

Width	170 mm
