4. Front headphone connector (10-1 pin F_AUDIO1)
This connector is for a chassis-mounted front panel headphone port.
3. Serial ATA connectors (7-pin SATA1, SATA2)
These connectors are for the Serial ATA signal cables for Serial ATA hard disk
drives.
• Install the Windows
®
2000 Service Pack 4 or the Windows
®
XP Service Pack1
before using Serial ATA.
• When using the connectors in Standard IDE mode, connect the primary (boot)
hard disk drive to the SATA1 connector.

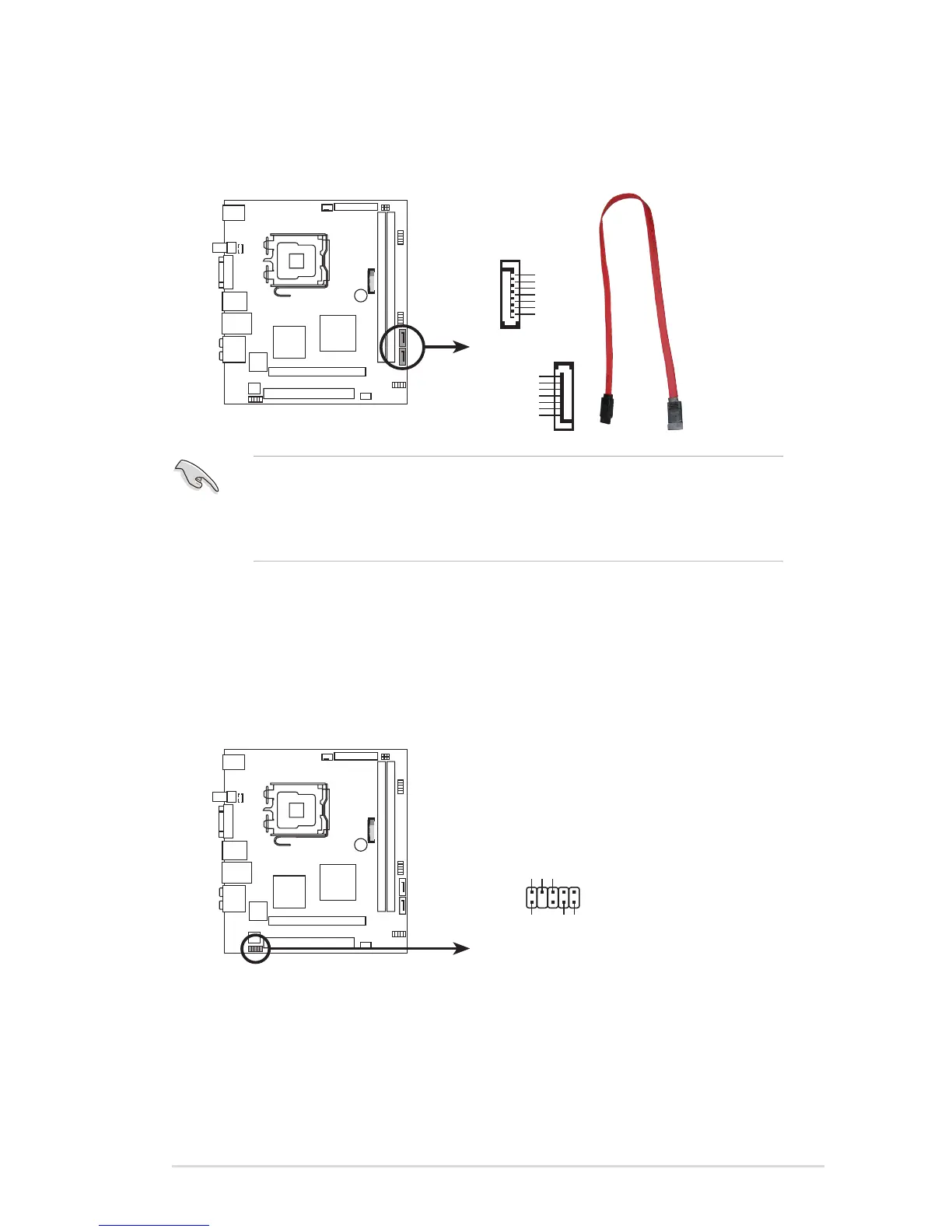

IPILP-AR
IPILP-AR SATA connectors
SATA1
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXP2
RSATA_RXN2
GND
SATA2
GND
RSATA_TXP0
RSATA_TXN0
GND
RSATA_RXP0
RSATA_RXN0
GND
IPILP-AR
IPILP-AR Front audio connector
F_AUDIO1
LIN2_RTU
AUD_DET#
AUDIO_GND
LIN2_L SENSE_B LIN2_R_C
