ASUS IPILP-AR 15
7. System panel connector (10-1 pin F_PANEL1)
This connector supports several chassis-mounted functions.
System power LED (2-pin PWR LED)
This 2-pin connector is for the system power LED. Connect the chassis power
LED cable to this connector. The system power LED lights up when you turn
on the system power, and blinks when the system is in sleep mode.
Hard disk drive activity (2-pin HD LED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED
cable to this connector. The IDE LED lights up or ashes when data is read from
or written to the HDD.
Power/Soft-off button (2-pin PWR BTN)
This connector is for the system power button. Pressing the power button turns
the system ON or puts the system in SLEEP or SOFT-OFF mode depending
on the BIOS settings. Pressing the power switch for more than four seconds
while the system is ON turns the system OFF.
Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot
without turning off the system power.

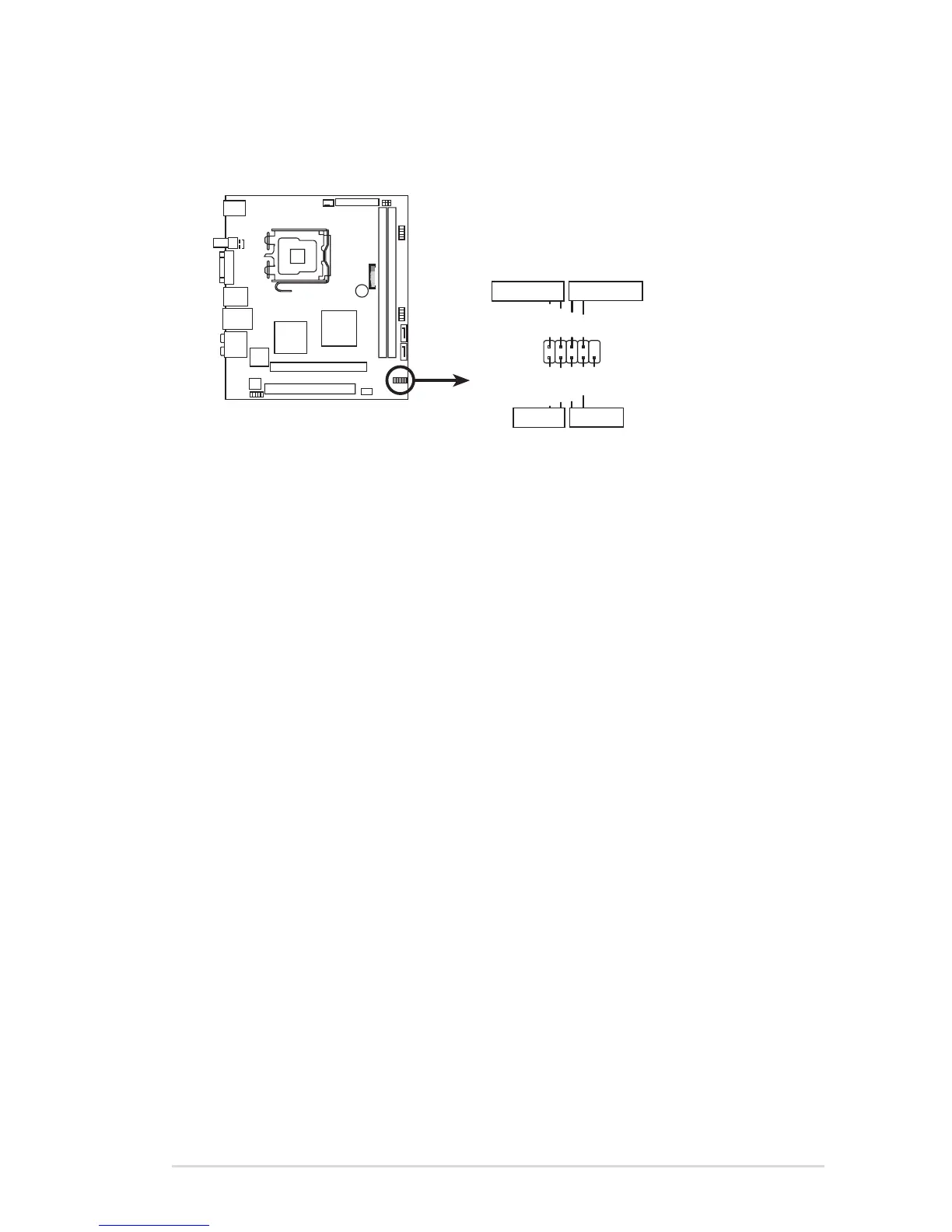

IPILP-AR
IPILP-AR System panel connector
F_PANEL
PLED-
PWR
PLED+
Ground
GND
Reset
HDLED+
HDLED-
HD LED
RESET
PWR LED
PWR BTN
NC
PIN1
