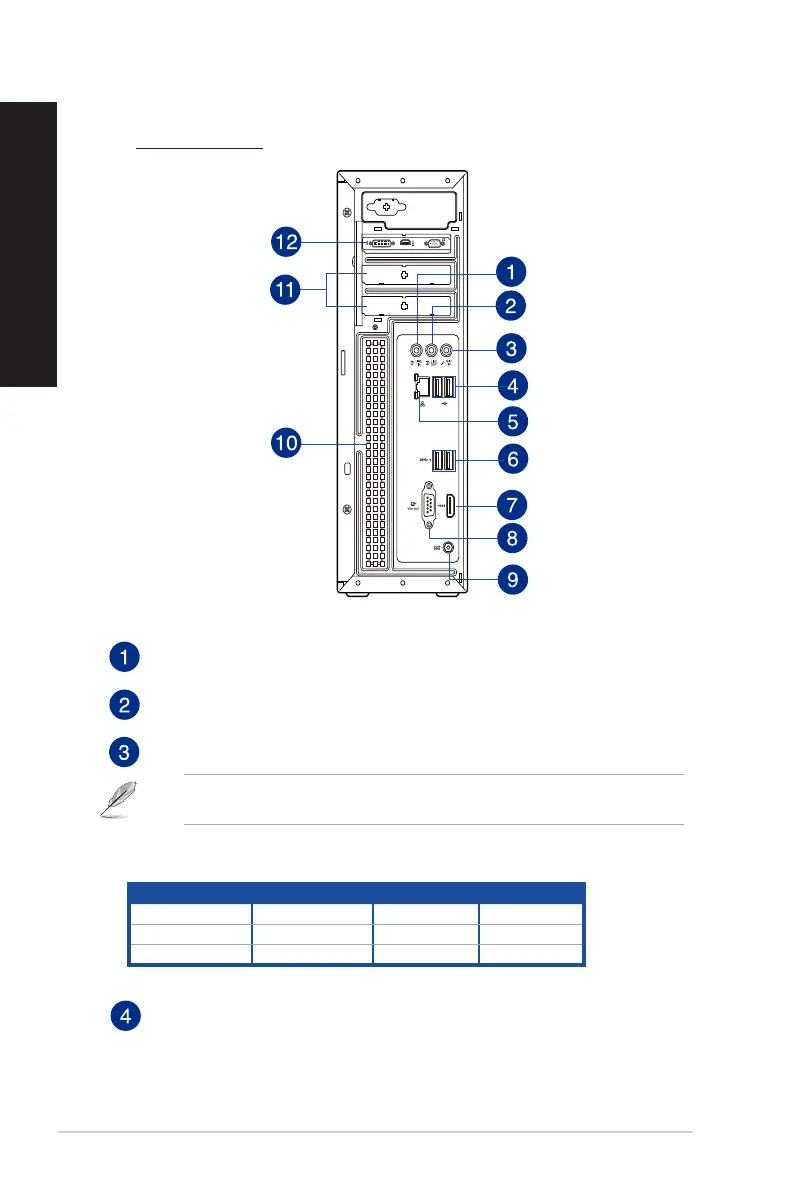

Rear panel
Line In port (light blue). This port connects to a tape, CD, DVD player, or other audio
sources.
Line Out port (lime). This port connects to a headphone or speaker. In a 4.1 or
5.1-channel configuration, the function of this port becomes Front Speaker Out.
Microphone port (pink). This port connects to a microphone.
Refer to the audio configuration table for the function of the audio ports in a 2.1, 4.1 or
5.1-channel configuration.
USB 2.0 ports. These Universal Serial Bus 2.0 (USB 2.0) ports connect to USB 2.0 devices
such as a mouse, printer, scanner, camera, PDA, and others.
K20DA / A20DA / F20DA
16 Chapter 1: Getting started
ENGLISH
ENGLISH
Audio 2.1, 4.1 or 5.1-channel configuration
Port Headset 2.1-channel 4.1-channel 5.1-channel
Light Blue (Rear panel) Line In Rear Speaker Out Rear Speaker Out
Lime (Rear panel) Line Out Front Speaker Out Front Speaker Out
Pink (Rear panel) Mic In Mic In Bass/Center
