2-26 Chapter 2: Hardware information

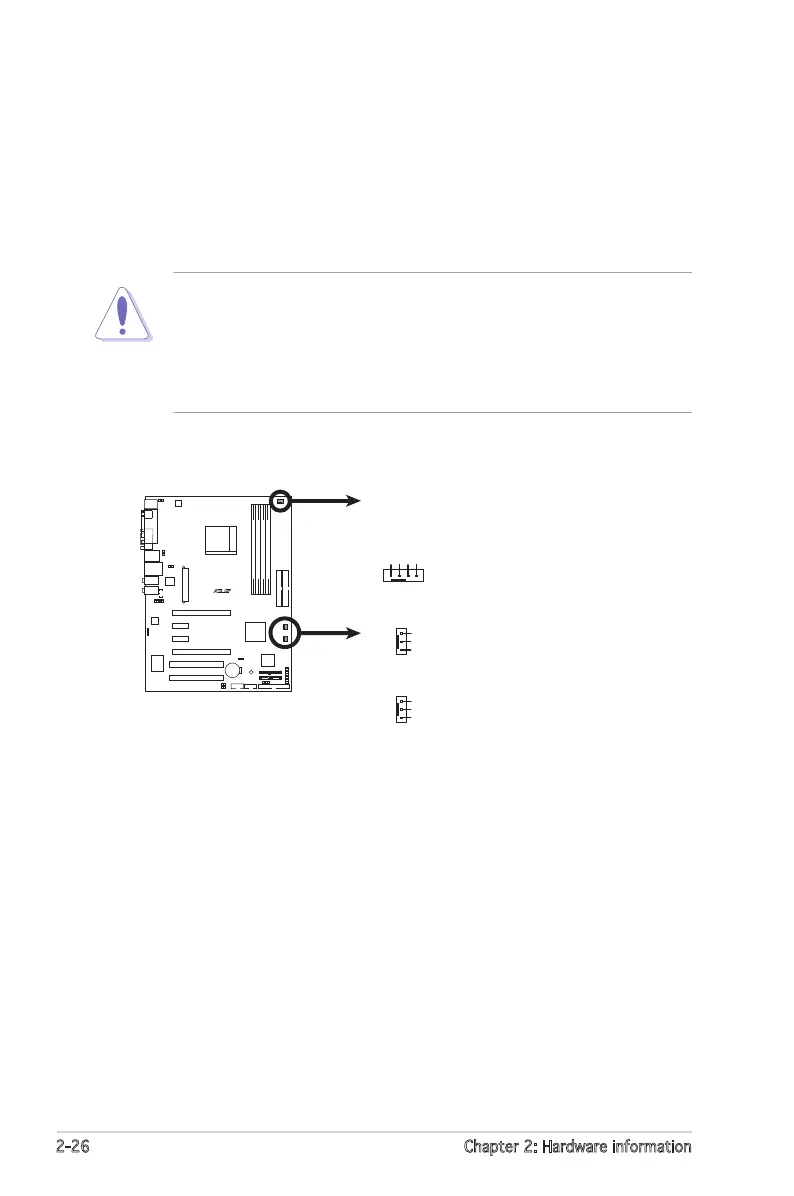

4. CPU, Chassis, and Power fan connectors
(3-pin CPU_FAN, 3-pin PWR_FAN, 3-pin CHA_FAN)
The fan connectors support cooling fans of 350mA~2000mA (24
W max.) or a total of 1A~3.48A (41.76 W max.) at +12V. Connect
the fan cables to the fan connectors on the motherboard, making
sure that the black wire of each cable matches the ground pin of the
connector.
• Do not forget to connect the fan cables to the fan connectors. Lack
of sufcient air ow inside the system may damage the motherboard
components. These are not jumpers! DO NOT place jumper caps on
the fan connectors!
• The ASUS Q-Fan function is supported using the CPU Fan (CPU_FAN)
and Chassis Fan (CHA_FAN) connectors only.
To Next Page
