Asus M2N68 PLUS - Motherboard Layout and Connectors; Motherboard Layout Diagram

M2N68 PLUS
SATA RAID
1000M LAN
5000HRS VRM
4PHASE POWER
DDR2-1066
PCIEX16
PCIEX1_1
PCIEX1_2
PCI2
PCI3
PCI4
PCI1
USB56 USB78 USB910
F_PANEL
SPDIF_OUT
AAFP
CD
ATX12V
EATXPWR
CPU_FAN
Lithium Cell
CMOS Power
Super
I/O
ALC
662
Realtek
8211CL
KBMS
8Mb
BIOS
SB_PWR
CLRTC
SPEAKER
20.3cm(8.0in)
NVIDIA
®
MCP68 SE
DDR2 DIMM_A1 (64bit, 240-pin module)
CPU Socket
DDR2 DIMM_B1 (64bit, 240-pin module)
SATA4
SATA3
SATA2
SATA1
AUDIO
LPT
COM
LAN1_USB12
USB34
30.5cm(12.0in)
PRI_IDE
1
4
2
3
5
6
7
8
91011121314

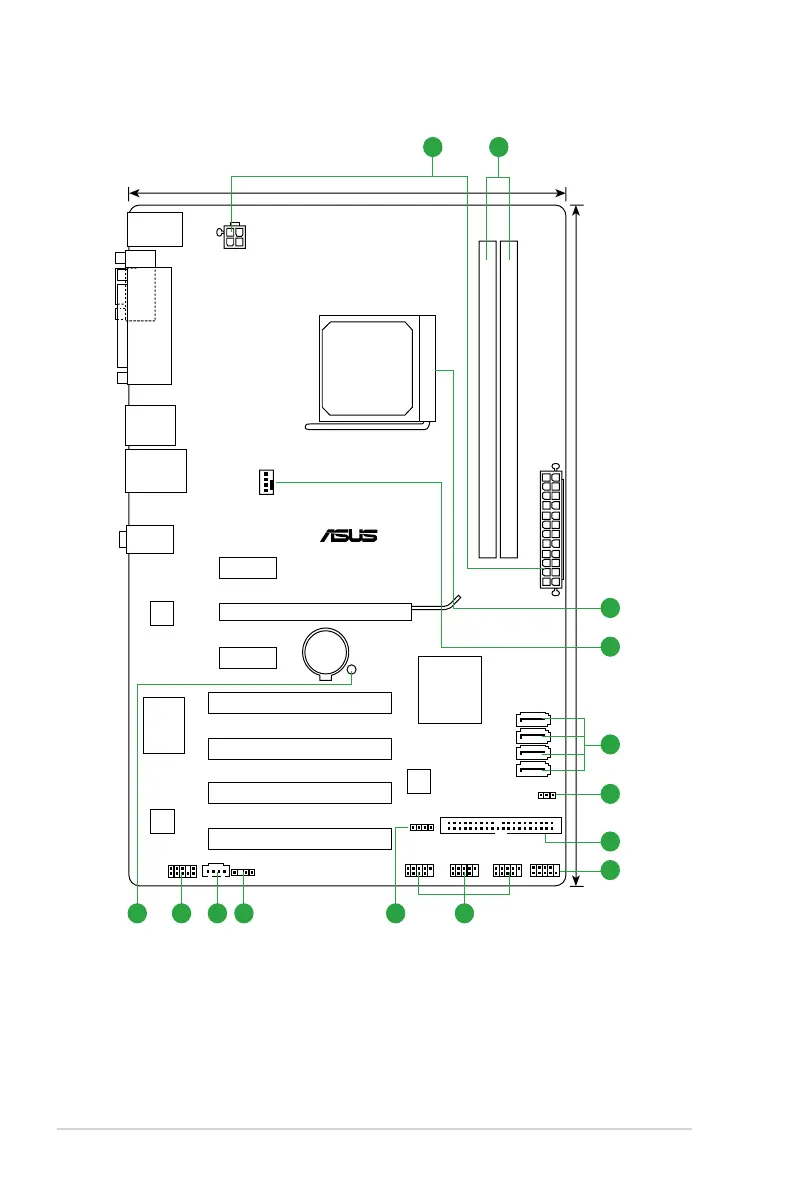

1.5.3 Motherboard layout
1-6 ASUS M2N68 PLUS
