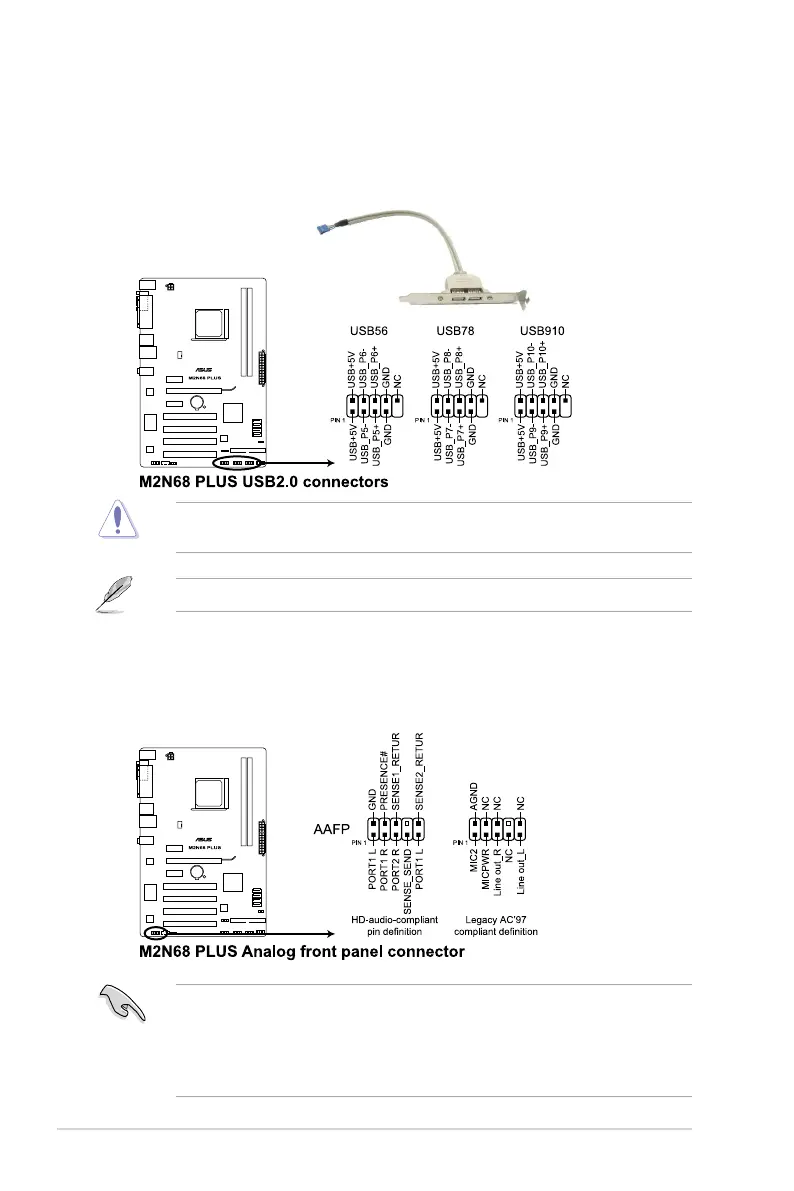

5. USB connectors (10-1 pin USB56, USB 78, USB910)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specication that supports up to
480 Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB 2.0 module is purchased separately.
6. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports
either High Denition Audio or AC`97 audio standard. Connect one end of the front
panel audio I/O module cable to this connector.
• We recommend that you connect a high-denition front panel audio module to this
connector to avail of the motherboard high-denition audio capability.
• By default, this connector is set to
[HD Audio]. If you want to connect a High Denition
front panel audio module to this connector, set the Front Panel Select item in the BIOS
to [HD Audio]. See section “2.4.3 Chipset” for details.
1-20 ASUS M2N68 PLUS
