Asus M2NPV-VM - Serial Port Connectors; Front Panel Audio Connector

ASUS M2NPV-VM 1-35
M2NPV-VM
®

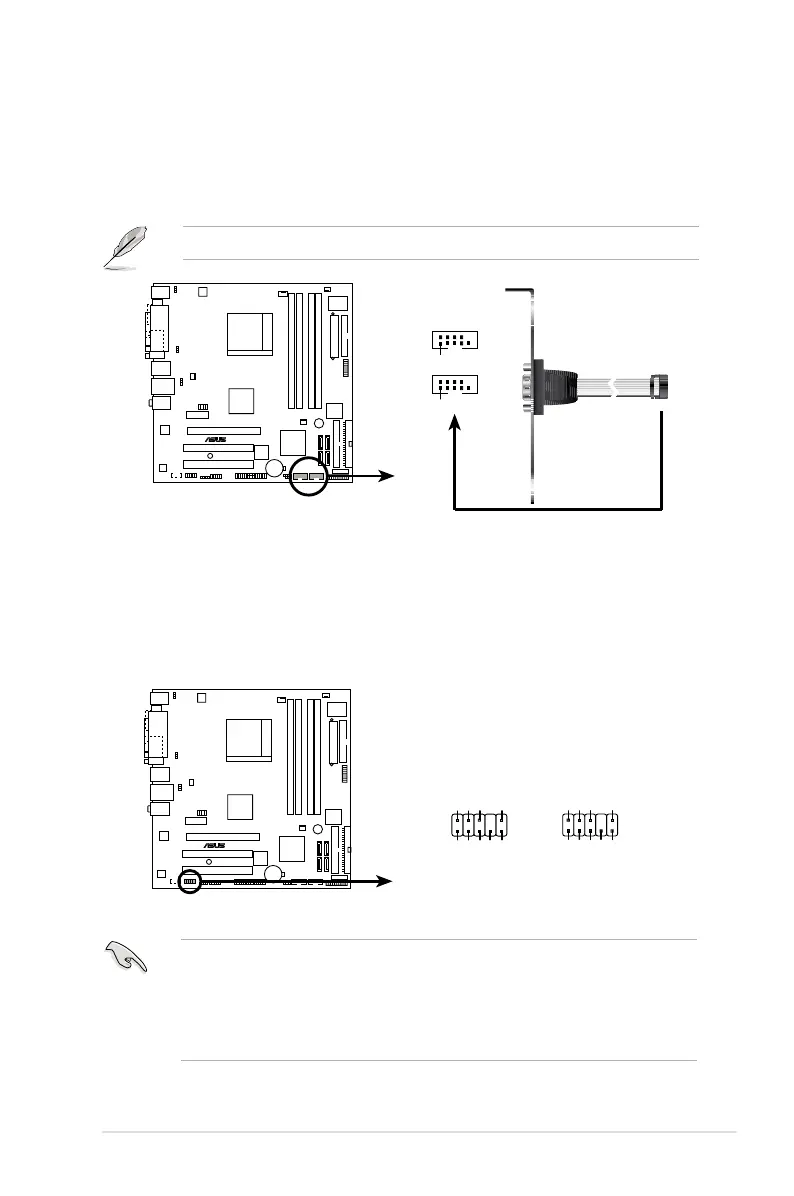

M2NPV-VM COM port connector
PIN 1
COM2
PIN 1
COM1
11. Serial port connectors (10-1 pin COM1; 10-1 pin COM2)
These connectors are for serial (COM) ports. Connect the serial port module
cable to any of these connectors, then install the module to a slot opening at
the back of the system chassis.
12. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that
supports either High Denition Audio or AC`97 audio standard. Connect one
end of the front panel audio I/O module cable to this connector.
• We recommend that you connect a high-denition front panel audio module
to this connector to avail of the motherboard high-denition audio capability.
• If you want to connect a high-denition front panel audio module to
this connector, make sure that the HD Audio item in the BIOS is set to
[Enabled]. See page 2-28 for details.
M2NPV-VM
®
M2NPV-VM Analog front panel connector
AAFP
Azalia-compliant
pin definition
Legacy AC’97-compliant
pin definition
NC
MIC2
Line out_R
Line out_L
NC
NC
MICPWR
NC
AGND
PORT1 R
SENSE2_RETUR
PORT1 L
PORT2 R
PORT2 L
SENSE1_RETUR
SENSE_SEND
PRESENCE#
GND
The serial port bracket (COM1) is purchased separately.
