Asus M4A78LT-M Installation Guide

ASUS Motherboard installation guide 5

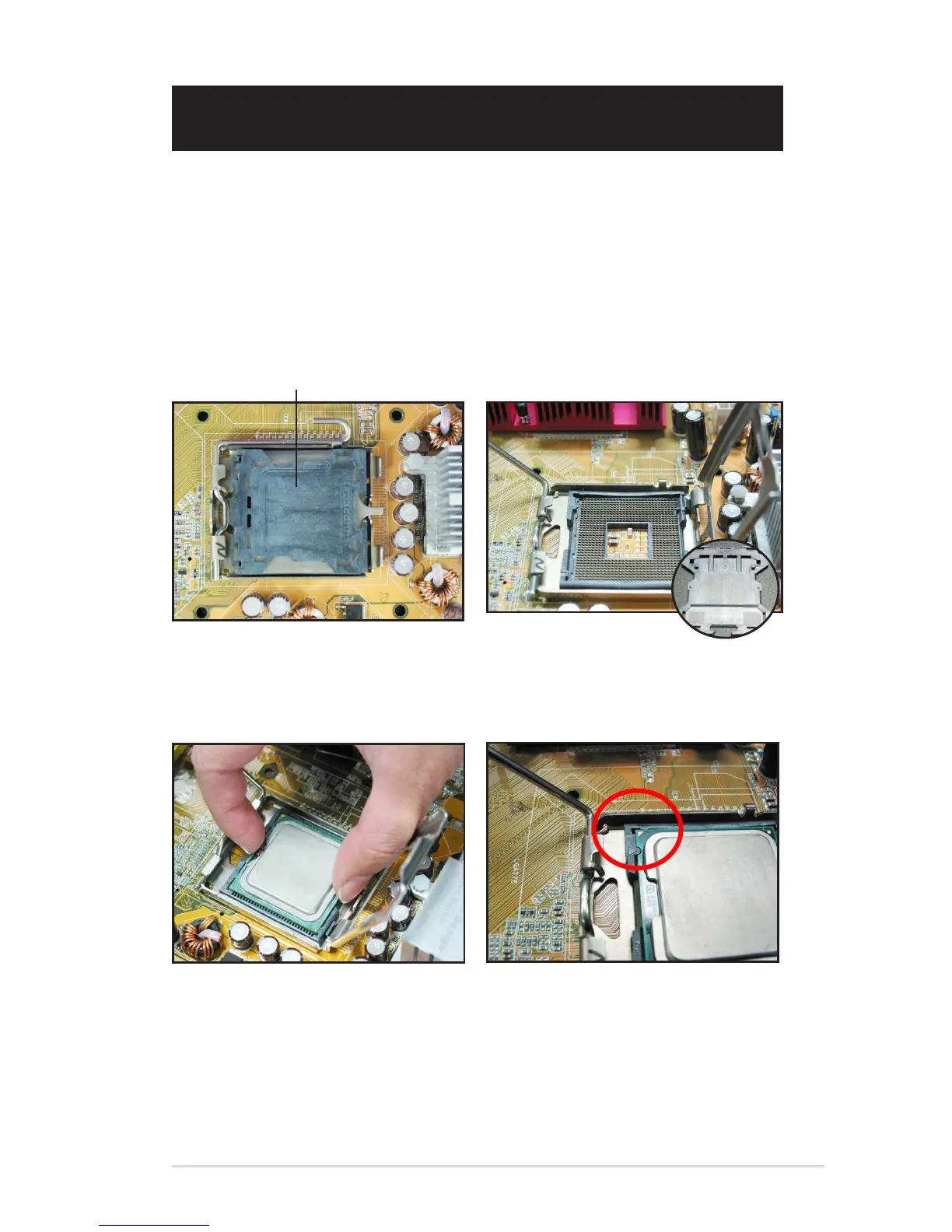

1.1.1 Intel LGA775 Socket
1. Locate the CPU socket on the
motherboard.
2. Release the load lever from the
retention tab and lift the load plate.
Then push the PnP cap from the
load plate window to remove
To prevent damage to the socket
pins, do not remove the PnP cap
unless you are installing a CPU.
3. Position the CPU over the socket.
4. Ensure that the gold triangle is
on the bottom‑left corner of the
socket.
Chapter 1: Quick Start
1.1 Installing the CPU
Pick and Place Cap (PnP Cap)

Asus M4A78LT-M Specifications

General

Form Factor	Micro ATX
Chipset	AMD 760G
Socket	AM3
Memory Slots	4 x DIMM
Memory Type	DDR3
Maximum Memory	16 GB
PCIe x16 Slots	1
PCIe x1 Slots	1
PCI Slots	2
SATA Ports	6 x SATA 3Gb/s
Integrated Graphics	ATI Radeon HD 3000
Audio	8-Channel High Definition Audio
Video Outputs	D-Sub, DVI
USB Ports	12 (6 on back panel, 6 via headers)
