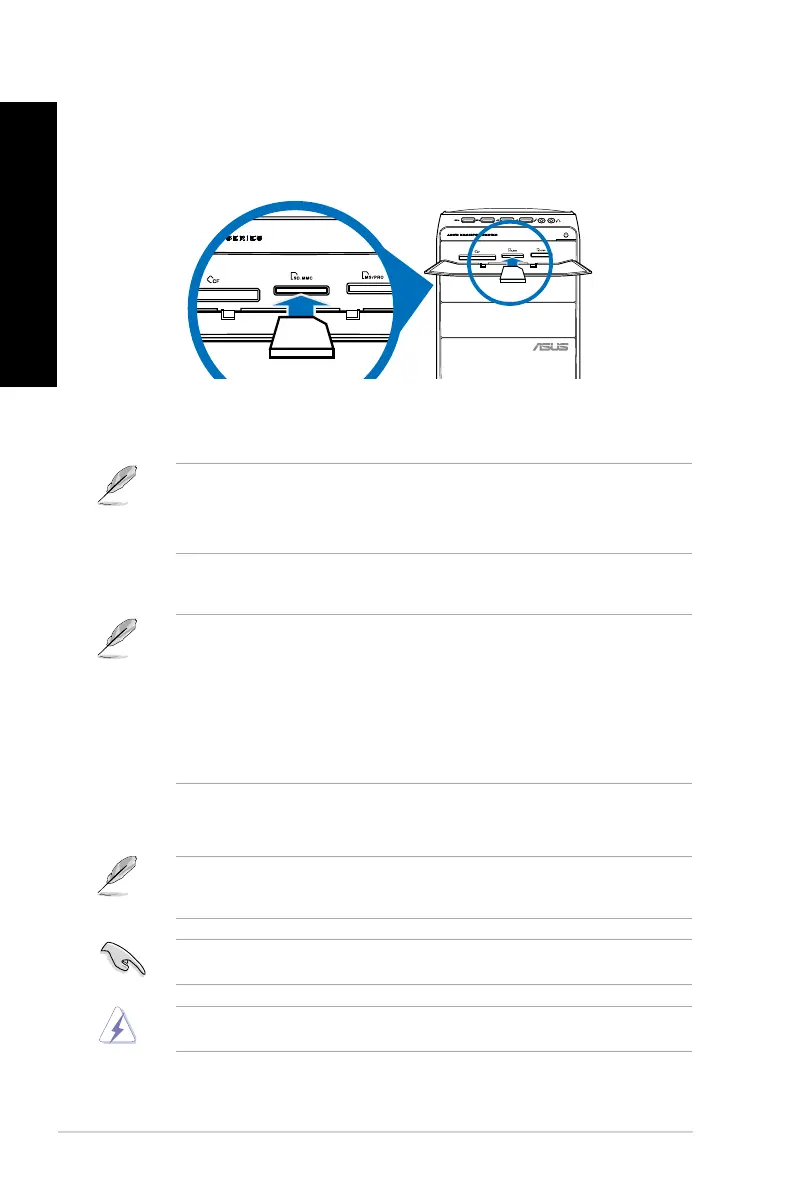

Using the memory card reader
Digital cameras and other digital imaging devices use memory cards to store digital picture or
media les. The built-in memory card reader on the front panel of your system allows you to
read from and write to different memory card drives.
3. When nished, right-click the memory card drive icon on the Computer screen, click
Eject, and then remove the card.
Never remove cards while or immediately after reading, copying, formatting, or deleting
data on the card or else data loss may occur.
To prevent data loss, use “Safely Remove Hardware and Eject Media” in the Windows
®
notication area before removing the memory card.
To use the memory card:
1. Insert the memory card into the card slot.
2. Select a program from the AutoPlay window to access your les.
• On Windows
®
7, if AutoPlay is NOT enabled in your computer, click Windows
®
7 Start
button on the taskbar, click Computer, and then double-click the memory card icon to
access the data on it.
• On Windows
®
8.1, if AutoPlay is NOT enabled in your computer, hover your mouse
pointer over the lower left corner of Windows
®
desktop then right-click on the Start
screen’s thumbnail. From the popup menu, click File Explorer, and then double-click
the memory card icon to access the data on it.
• Each card slot has its own drive icon which is displayed on the
Computer screen.
• A memory card is keyed so that it ts in only one direction. DO NOT force a card into a
slot to avoid damaging the card.
• You can place media in one or more of the card slots and use each media
independently. Place only one memory card in a slot at one time.
On Windows
®
8.1, hover your mouse pointer over the lower left corner of Windows
®
desktop then right-click on the Start screen’s thumbnail. From the popup menu, click File
Explorer to open the Computer screen.

Asus M51AD Specifications

General

Tcase	71.35 °C
Bus type	QPI
Stepping	C0
Processor cache	8 MB
Processor cores	4
Processor model	i7-4770S
System bus rate	- GT/s
Processor family	Intel® Core™ i7
Processor series	Intel Core i7-4700 Desktop series
Processor socket	LGA 1150 (Socket H3)
Processor threads	8
Processor codename	Haswell
Processor frequency	3.1 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	3.9 GHz
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	65 W
Number of processors installed	1
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333, 1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	32 GB
Scalability	1S
Processor code	SR14H
Processor ARK ID	75124
Intel TSX-NI version	0.00
Processor package size	37.5 x 37.5 mm
Conflict-Free processor	Yes
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal solution specification	PCG 2013C
Intel Identity Protection Technology version	1.00
On-board graphics card ID	0x412
Discrete graphics card model	NVIDIA® GeForce® GTX 760
On-board graphics card model	Intel® HD Graphics 4600
Discrete graphics card memory	3 GB
Maximum on-board graphics card memory	1.74 GB
On-board graphics card base frequency	350 MHz
On-board graphics card DirectX version	11.1
On-board graphics card burst frequency	1200 MHz
Number of displays supported (on-board graphics)	3
Internal memory	16 GB
Memory channels	Dual-channel
Memory clock speed	1600 MHz
Memory layout (slots x size)	2 x 8 GB
HDD size	3.5 \
HDD speed	7200 RPM
Storage media	HDD
Optical drive type	DVD±RW
Total storage capacity	1000 GB
USB 2.0 ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Chassis type	Tower
Product color	Black
Audio chip	Realtek ALC892
Audio system	SonicMaster
Product type	PC
Motherboard chipset	Intel® H81
Audio output channels	7.1 channels
Operating system installed	Windows 8.1

Weight and Dimensions

Depth	400 mm
Width	175 mm
Height	420 mm
Weight	9200 g
