7. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports connect to
USB 2.0 devices.
8. USB 2.0 ports 3 and 4.
These two 4-pin Universal Serial Bus (USB) ports connect to
USB 2.0 devices.
9. Video Graphics Adapter (VGA) port.
This 15-pin port is for a VGA monitor or other
VGA-compatible devices.
10. Serial port.
This 9-pin COM1 port is for pointing devices or other serial devices.
11. PS/2 Keyboard port (purple). This port is for a PS/2 keyboard.
• We recommend that you connect a high-denition front panel audio module to this
connector to avail of the motherboard high-denition audio capability.
• If you want to connect a high denition front panel audio module to this connector, set
the Front Panel Select item in the BIOS to [HD Audio]. See section 2.4.4 Onboard
Devices Conguration for details.
• The front panel audio I/O module is purchased separately.
1.10.2 Internal connectors
1. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports
either High Denition Audio or AC`97 audio standard. Connect one end of the front
panel audio I/O module cable to this connector.

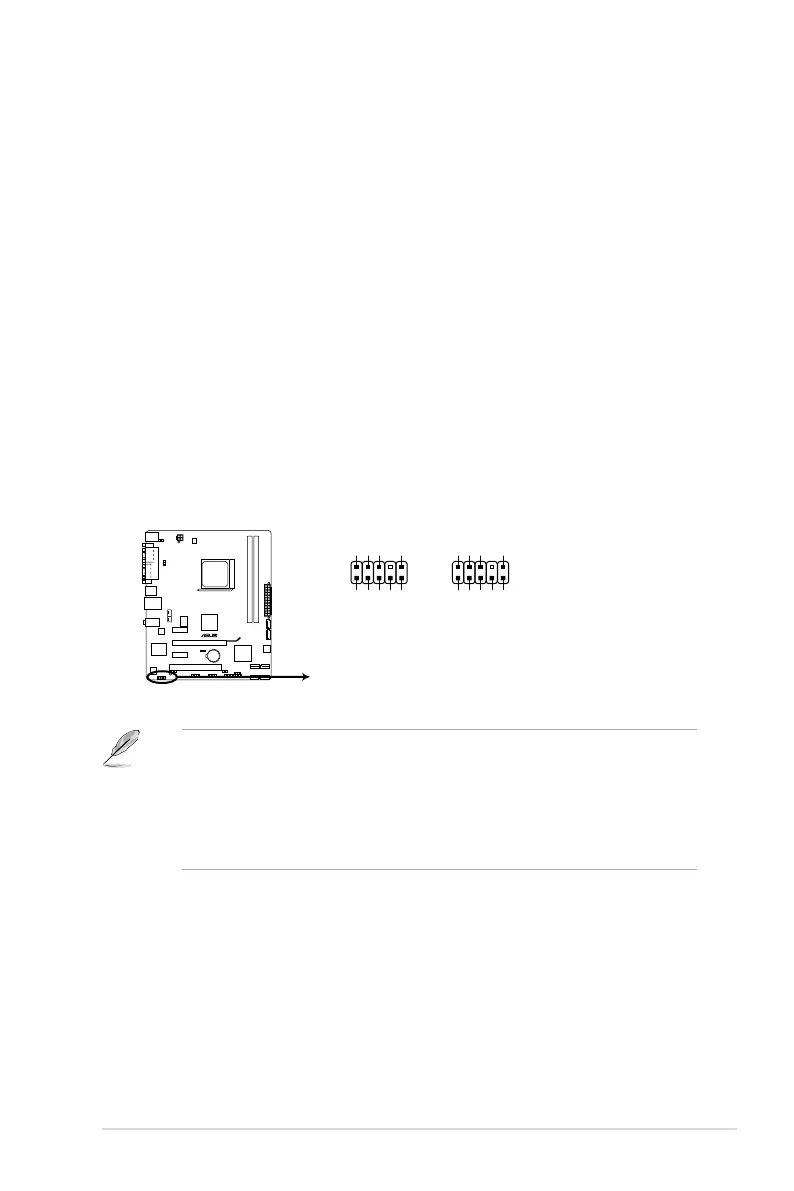

M5A78L-M LX PLUS
M5A78L-M LX PLUS Front panel audio connector
AAFP
PIN 1
GND PRESENCE# SENSE1_RETUR SENSE2_RETUR
PORT1 L
PORT1 R PORT2 R
SENSE_SEND
PORT2 L
HD-audio-compliant
pin definition
PIN 1
AGND NC NC NC
MIC2
MICPWR
Line out_R
NC
Line out_L
Legacy AC’97
compliant definition
ASUS M5A78L-M LX Series 1-21

Asus M5A78L-M LX V2 Specifications

General

ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	8 GB
Supported memory clock speeds	1066, 1333, 1600, 1866 MHz
Supported memory module capacities	4GB
System bus rate	5.2 GT/s
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
USB 2.0 connectors	3
Power fan connector	No
Number of SATA II connectors	6
Number of EATX power connectors	1
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	4
Audio chip	Realtek ALC887
Cooling type	Active
Component for	PC
Power source type	ATX
Motherboard chipset	AMD 760G
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Motherboard southbridge	AMD SB710
RAID levels	0, 1, 10, JBOD
Supported storage drive interfaces	SATA II
Cables included	SATA
Graphics card	Radeon HD 3000
DirectX version	10.0
Maximum resolution	2560 x 1440 pixels
Graphics card family	ATI
Parallel processing technology support	Hybrid CrossFireX
PCI Express slots version	2.0
Controller interface type	SB710
LAN controller	Realtek RTL8111E
Networking features	Gigabit Ethernet
BIOS type	AMI
ACPI version	2.0a
BIOS memory size	16 Mbit

Weight and Dimensions

Depth	203 mm
Width	244 mm
