ASUS M5A97 EVO R2.0
4-39
Chapter 4
A. Realtek HD Audio Manager with DTS UltraPC II for Windows
®
7™ / Vista™
4.3.15 Audio congurations
The Realtek
®
audio CODEC provides 8-channel audio capability to deliver the ultimate audio
experience on your computer. The software provides Jack-Sensing function, S/PDIF Out
support, and interrupt capability. The CODEC also includes the Realtek
®
proprietary UAJ
®
(Universal Audio Jack) technology for all audio ports, eliminating cable connection errors and
giving users plug and play convenience.
Follow the installation wizard to install the Realtek
®
Audio Driver from the support DVD that
came with the motherboard package.

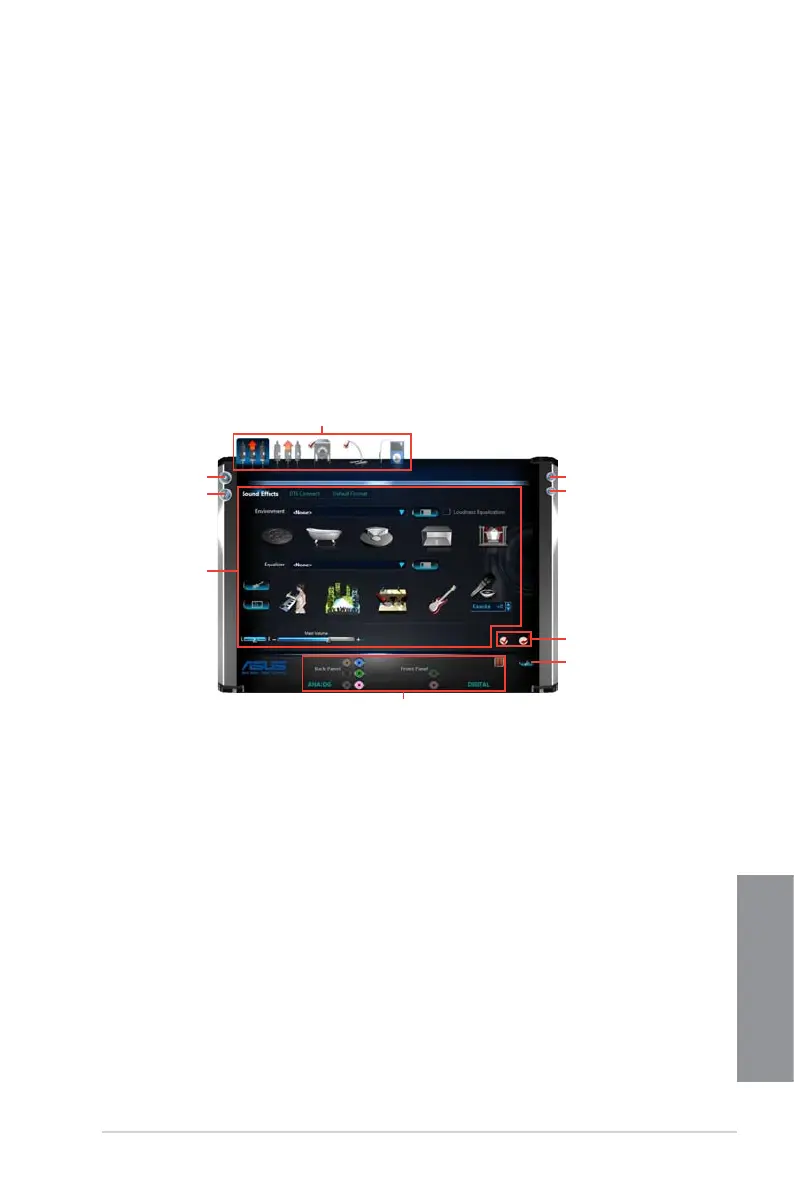

If the Realtek audio software is correctly installed, you will nd the Realtek HD Audio
Manager icon on the taskbar. Double-click on the icon to display the Realtek HD Audio
Manager.
Control settings
Conguration option tabs (vary with the audio devices connected)
Device advanced
settings
Information button
Exit button
Minimize button
Connector settings
Analog and digital connector status
Set default device buttons

Asus M5A97 EVO R2.0 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1866, 2133 MHz
System bus rate	4.8 GT/s
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom FX, AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6, AMD Phenom II X8
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA III connectors	6
Number of Parallel ATA connectors	-
eSATA ports quantity	2
USB 2.0 ports quantity	8
Audio chip	Realtek ALC892
Cooling type	Passive
Component for	PC
Motherboard chipset	AMD 970
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard southbridge	AMD SB950
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
On-board graphics card	No
Parallel processing technology support	Quad-GPU CrossFireX
PCI Express slots version	2.0
PCI Express configurations	1x4, 1x16, 2x1
Controller 2nd interface type	ASMedia PCIe SATA
Trial software	AntiVirus
Cables included	SATA
Bundled software	ASUS Utilities ASUS Update
LAN controller	Realtek RTL8111F
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
