2.8 Connectors
2.8.1 Rear panel connectors

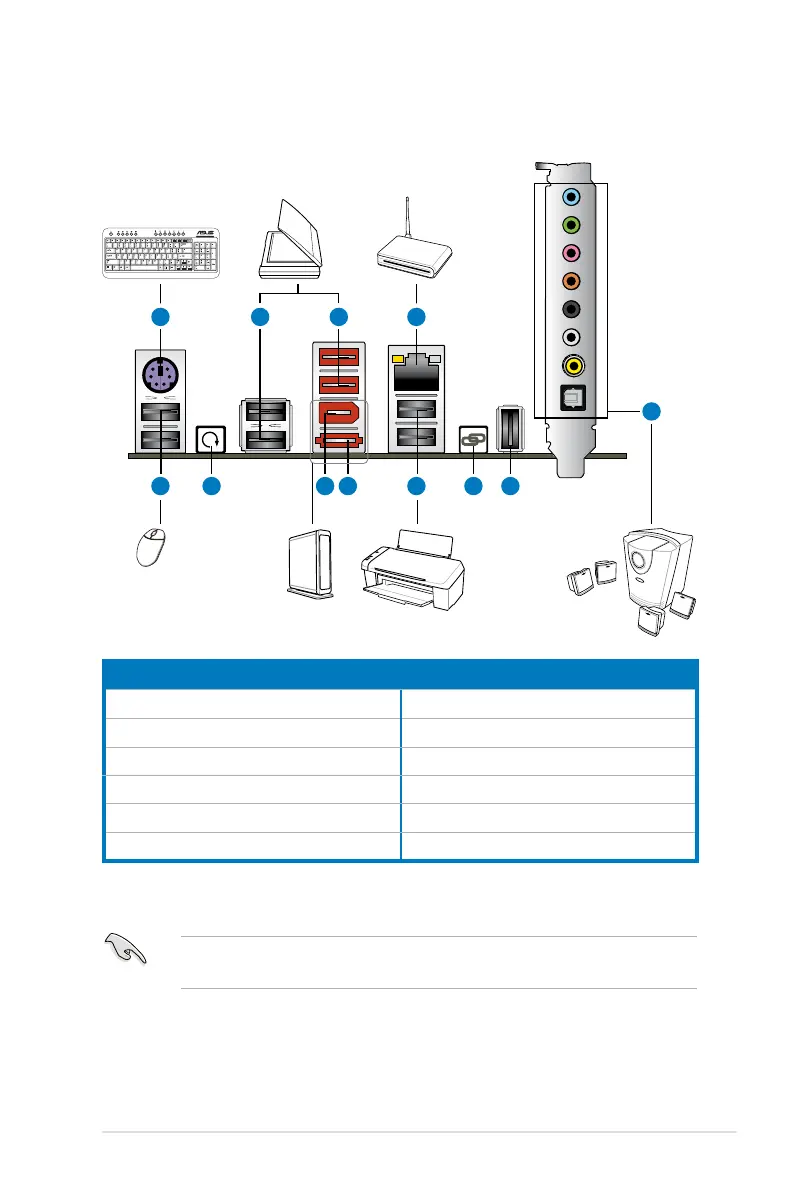

Rear panel connectors
1. PS/2 keyboard port (purple) 7. Clear CMOS switch
2. USB 2.0 ports 3 and 4 8. IEEE 1394a port
3. USB 2.0 ports 5 and 6 9. External SATA port
4. LAN (RJ-45) port* 10. USB 2.0 ports 1 and 2
5. Audio Ports** 11. ROG Connect switch
6. USB 2.0 ports 7 and 8 12. USB 2.0 port 14
To use hot-plug, set the Controller Mode in the BIOS settings to [AHCI] mode.
See section for details.
ROG Maximus III Formula 2-29
