PEG Port Configuration
Allows you to congure the PEG Port settings.
PCIEX16/X8_1
PCIEX16/X8_1 Link Speed [Auto]
Allows you to select the operating speed of the PCIEX16/X8_1 speed.
Conguration options:
[Auto] The system will automatically select the PCIEX16/X8_1 slot speed.
[Gen1] The PCIEX16/X8_1 slot will run at PCI-E 1.0 speed.
[Gen2] The PCIEX16/X8_1 slot will run at PCI-E 2.0 speed.
[Gen3] The PCIEX16/X8_1 slot will run at PCI-E 3.0 speed.
PCIEX8_2
PCIEX8_2 Link Speed [Auto]
Allows you to select the operating speed of the PCIEX8_2 speed.
Conguration options:
[Auto] The system will automatically select the PCIEX16/X8_1 slot speed.
[Gen1] The PCIEX8_2 slot will run at PCI-E 1.0 speed.
[Gen2] The PCIEX8_2 slot will run at PCI-E 2.0 speed.
[Gen3] The PCIEX8_2 slot will run at PCI-E 3.0 speed.

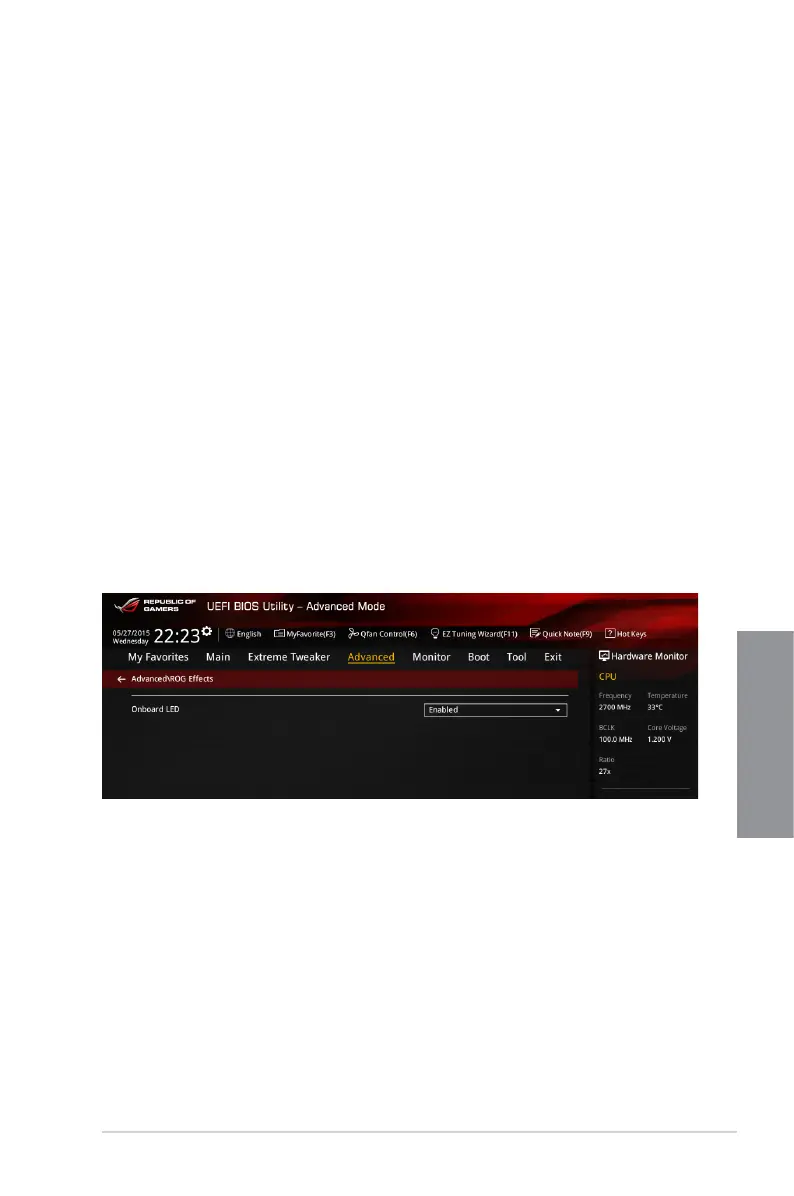

3.6.4 ROG Effects
Onboard LED [Enabled]
This item allows you to enable all the onboard LEDs.
Conguration options: [Enabled] [Disabled]
SupremeFX (ROG Audio) LED [Enabled]
This item allows you to enable ROG Audio LED.
Conguration options: [Enabled] [Disabled]
PCH (Logo) LED [Enabled]
[Enabled] LEDs will always light up at the S0(Working), S3(Sleep), and S5(Soft off)
states, but not light up at the S5 state when the “ErP Ready” is enabled.
[Disabled] LEDs will not light up.

Asus Maximus VIII Hero Specifications

General

Form Factor	ATX
Chipset	Intel Z170
Socket	LGA 1151
Memory Slots	4
Maximum Memory	64GB
Memory Type	DDR4
PCIe x16 Slots	3
PCIe x4 Slots	0
PCIe x1 Slots	3
SATA 6Gb/s Ports	6
M.2 Slots	1
USB 3.0 Ports	6
USB 2.0 Ports	6
Memory Speed	DDR4 2133/2400/2666/2800/3000/3200/3333/3400/3466 MHz (OC)
USB 3.1 Ports	1 x USB 3.1 Type-A, 1 x USB 3.1 Type-C
Audio	8-Channel High Definition Audio CODEC
LAN	Intel I219-V Gigabit LAN
RAID Support	0, 1, 5, 10
Multi-GPU Support	AMD 3-Way CrossFireX
