2-18
Chapter 2: Hardware Information
2.

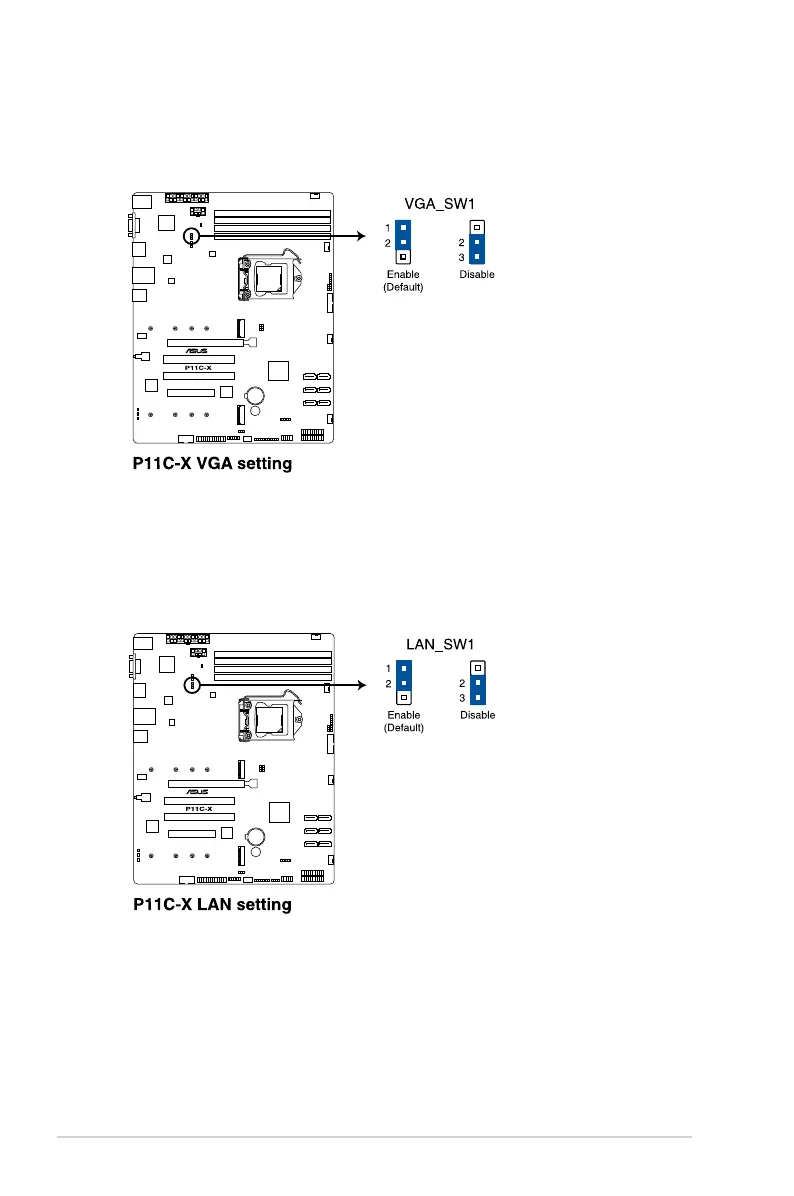

VGA
controller setting (3-pin VGA_SW1)
ThisjumperallowsyoutoenableordisabletheonboardVGAcontroller.
Settopins1–2
toactivatetheVGAfeature.
3.
LAN controller setting (3-pin LAN_SW1)
ThisjumperallowsyoutoenableordisabletheonboardLAN_SW1.Settopins1
-2 to
activatetheGigabitLANfeature.
33
35
Table of Contents
default chapter
3
Table of Contents
3
Safety Information
7
About this Guide
8
P11C-X Specifications Summary
10
Chapter 1: Product Introduction
13
Welcome
14
Package Contents
14
Serial Number Label
15
Special Features
15
Product Highlights
15
Chapter 2: Hardware Information
17
Before You Proceed
18
Motherboard Overview
19
Placement Direction
19
Screw Holes
19
Motherboard Layout
20
Central Processing Unit (CPU)
22
Installing the CPU
22
Installing the CPU Heatsink
25
Uninstalling the CPU Heatsink and Fan
26
Installing the CPU Heatsink in Rack
27
System Memory
28
Overview
28
Memory Configurations
28
Installing a DIMM on a Single Clip DIMM Socket
29
Expansion Slots
30
Installing an Expansion Card
30
Configuring an Expansion Card
30
Interrupt Assignments
31
PCI Express X16 Slot (X16 Gen3 Link)
31
PCI Express X8 Slot (X4 Gen3 Link)
31
PCI Slot
31
Jumpers
33
Onboard Leds
36
Connectors
38
Rear Panel Connectors
38
Internal Connectors
39
Chapter 3: Powering up
49
Starting up for the First Time
50
Powering off the Computer
51
Using the os Shut down Function
51
Using the Dual Function Power Switch
51
Chapter 4: BIOS Setup
53
Managing and Updating Your BIOS
54
ASUS Crashfree BIOS 3 Utility
54
ASUS EZ Flash Utility
55
BUPDATER Utility
56
BIOS Setup Program
58
BIOS Menu Screen
59
Menu Bar
59
Menu Items
60
Submenu Items
60
Navigation Keys
60
General Help
60
Configuration Fields
60
Pop-Up Window
60
Scroll Bar
60
Main Menu
61
Advanced Menu
62
CPU Configuration
63
Power & Performance
65
Server ME Configuration
66
Trusted Computing
67
APM Configuration
67
Runtime Error Logging Settings
68
Onboard LAN Configuration
68
Serial Port Console Redirection
69
Intel TXT Information
71
PCI Subsystem Settings
72
USB Configuration
72
Network Stack Configuration
74
CSM Configuration
75
Nvme Configuration
76
WHEA Configuration
76
Iscsi Configuration
77
Tls Auth Configuration
77
Chipset Menu
78
System Agent (SA) Configuration
78
PCH-IO Configuration
81
Security Menu
83
Boot Menu
86
Monitor Menu
88
Tool Menu
89
Event Logs Menu
89
Change Smbios Event Log Settings
89
View Smbios Event Log
90
Save & Exit Menu
91
Chapter 5: RAID Configuration
93
Setting up RAID
94
RAID Definitions
94
Installing Hard Disk Drives
95
Setting the RAID Item in BIOS
95
Intel ® Rapid Storage Technology Enterprise
96
Creating a RAID Set
97
Deleting a RAID Set
99
Resetting Disks to Non-RAID
100
Exiting the Intel ® Rapid Storage Technology Enterprise
101
SATA Option ROM Utility
101
Rebuilding the RAID
101
Setting the Boot Array in the BIOS Setup Utility
103
Intel ® Rapid Storage Technology Enterprise (Windows)
104
Creating a RAID Set
105
Changing a Volume Type
107
Deleting a Volume
108
Preferences
109
Chapter 6: Driver Installation
111
RAID Driver Installation
112
Creating a USB Flash Drive with RAID Drive
112
Installing the RAID Controller Driver
112
Management Applications and Utilities Installation
115
Running the Support DVD
115
Installing the System Drivers
116
Appendix
119
P11C-X Block Diagram
120
Q-Code Table
121
Notices
124
Simplified EU Declaration of Conformity
126
ASUS Contact Information
127
