1.7 Motherboard installation
Before you install the motherboard, study the configuration of your chassis to
ensure that the motherboard fits into it. The motherboard uses the micro-ATX form
factor that measures 9.6 inches x 9.6 inches (24.5 cm x 24.5 cm).
1.7.1 Placement direction
When installing the motherboard, make sure that you place it into the chassis in
the correct orientation. The edge with external ports goes to the rear part of the
chassis as indicated in the image below.
1.7.2 Screw holes

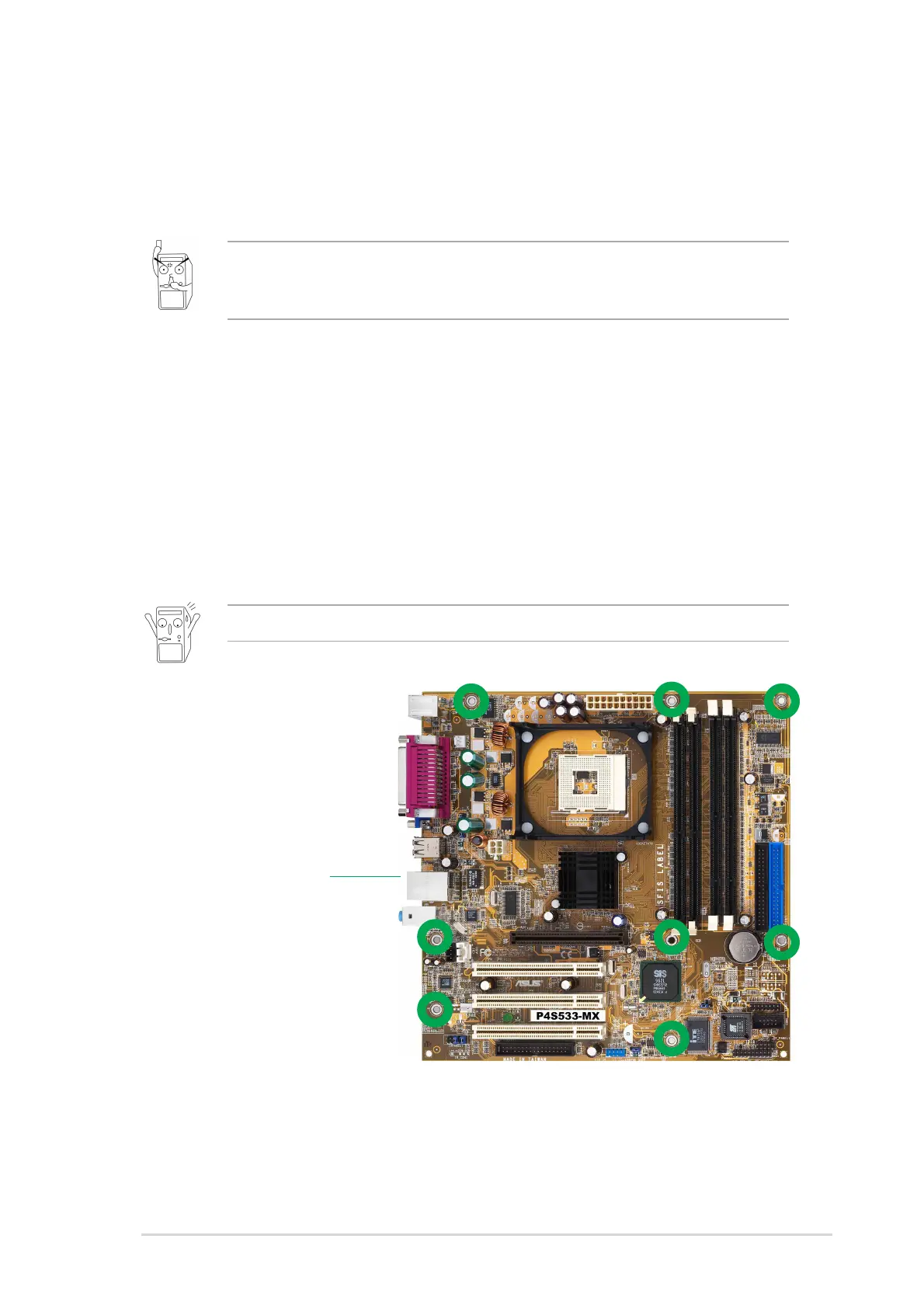

Place eight (8) screws into the holes indicated by circles to secure the
motherboard to the chassis.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause you physical injury and damage
motherboard components.
Do not overtighten the screws! Doing so may damage the motherboard.
Place this side towards
the rear of the chassis

Asus P4S533-MX Specifications

General

Form Factor	Micro ATX
Socket Type	Socket 478
Memory Type	DDR SDRAM
Memory Slots	2
Max Memory Supported	2 GB
Expansion Slots	1 x AGP, 3 x PCI
Onboard Audio	Yes
Audio Chipset	Realtek ALC650
Onboard LAN	Yes
LAN Chipset	Realtek RTL8100B
USB Ports	4 x USB 2.0
Front Side Bus	400/533 MHz
Chipset	SiS 651
IDE	2
AGP Slot	1 x AGP 4x
