2-16 Chapter 2: Hardware information
De scription IN TA IN TB IN TC NT D REQ# GNT#
PCI-3 PIRQF# PIRQG# PIRQH# PIRQE# REQ0 GNT0
PCI-4 PIRQG# PIRQH# PIRQE# PIRQF# REQ1 GNT1
USB UHCI Controller 1 PIRQH#
USB UHCI Controller 2 PIRQD#
USB UHCI Controller 3 PIRQC#
USB EHCI Controller PIRQH#
Onboard LAN1 PIRQA#
Onboard LAN2 PIRQB#
Onboard VGA PIRQF#

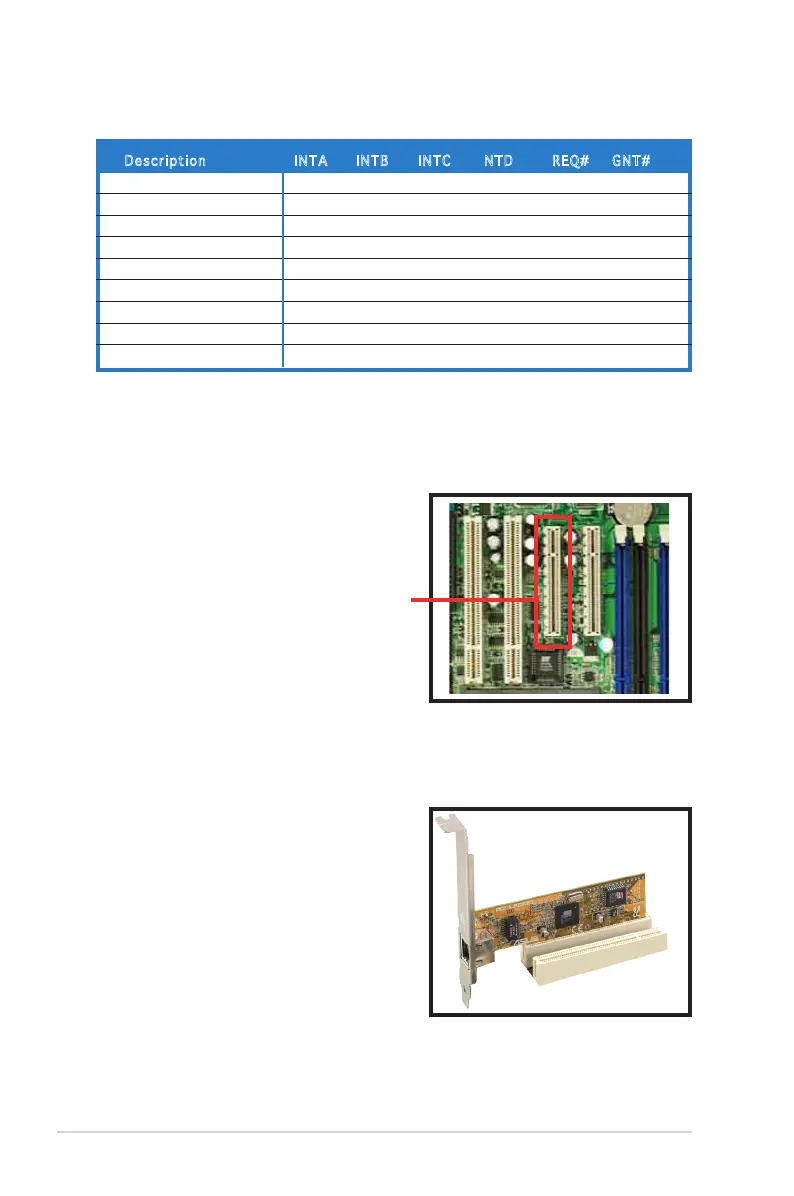

PCI Bus Number, IDSEL, and IRQ assignments
2.5.5 PCI slots
The PCI slots support cards such as a LAN
card, SCSI card, USB card, and other cards
that comply with PCI 2.2 specications. The
gure shows a LAN card installed on a 32-bit
PCI slot.
2.5.4 PCI Express x8 slot
This motherboard supports PCI Express
x8 network cards, SCSI cards, and other
cards that comply with PCI Express 1.0a
specications.
PCI Express x8 slot
