1-24 Chapter 1: Product introduction
P5GZ-MX XJ Setting
P5GZ-MX
R
XJ1-5
PCI-E x1, x1 PCI-Ex4, N/A
(Default)
1 2 2 3

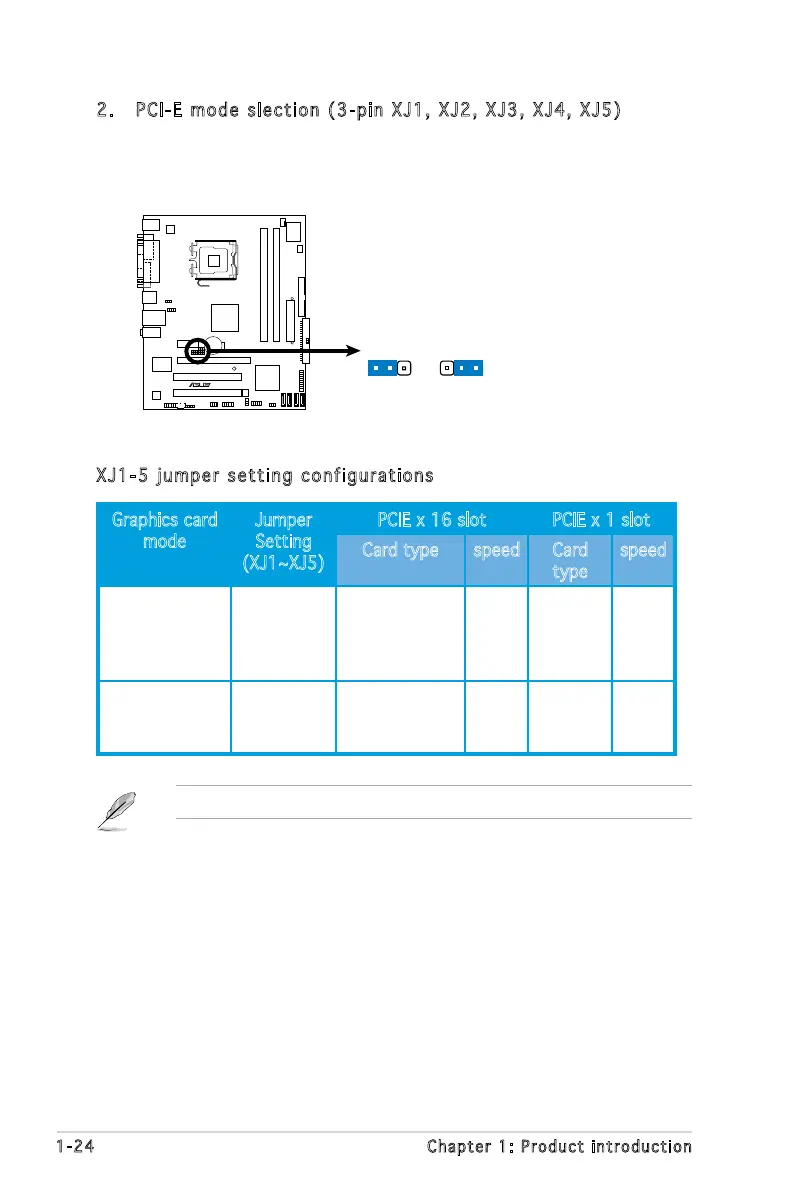

2. PCI-E mode slection (3-pin XJ1, XJ2, XJ3, XJ4, XJ5)
These jumpers allow you to adjust the operating speed of PCIE x1 and
PCIE x16 slots. Refer to the table below for detailed jumper setting
congurations.
Graphics card
mode
Jumper
Setting
(XJ1~XJ5)
PCIE x 16 slot PCIE x 1 slot
Card type speed Card
type
speed
Add-on card
mode
2-3 pin PCIe graphics
card or other
PCIe x8/x4
device
x4 N/A N/A
Integrated
Graphics mode
(default)
1-2 pin other PCIe
devices
x1 other
PCIe
devices
x1
The PCIEx1 slot is disabled when you set XJ1-5 to pins 2-3.
XJ1-5 jumper setting configurations
