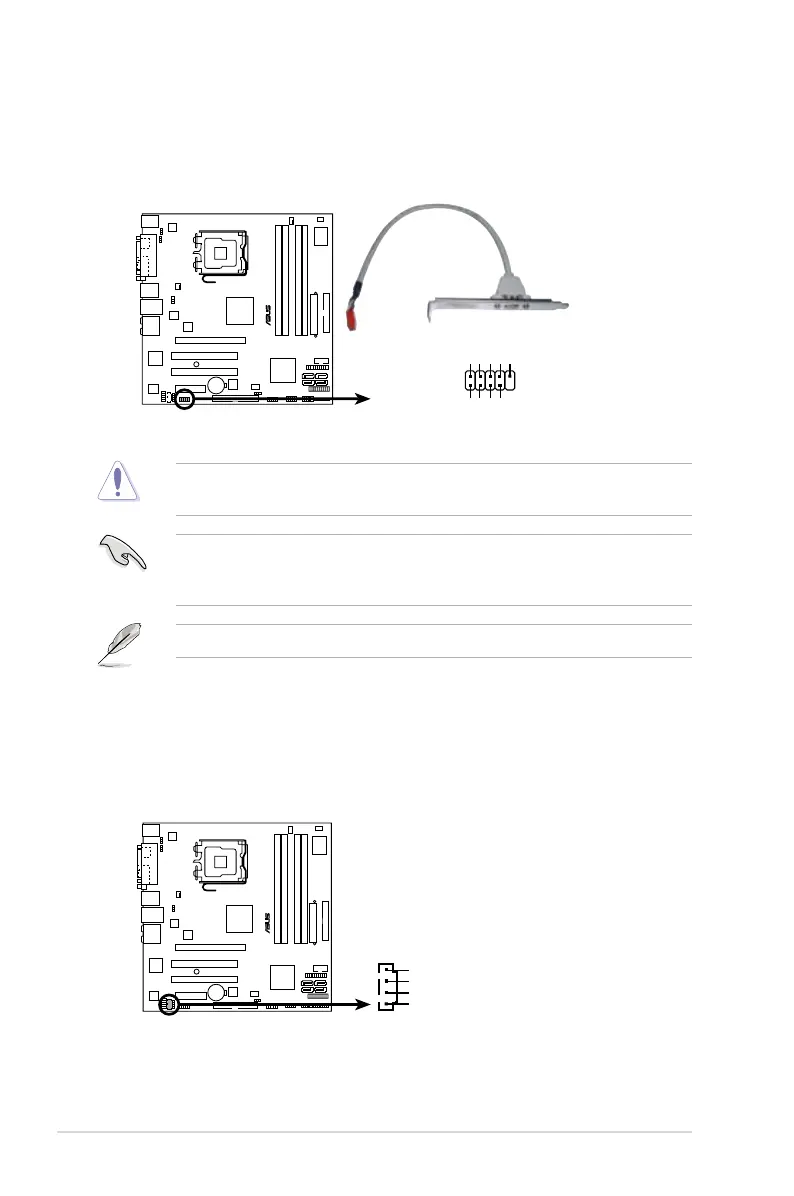

1-34 Chapter 1: Product introduction
6. IEEE 1394a port connector (10-1 pin IE1394_2)
This connector is for a IEEE 1394a port. Connect the IEEE 1394a module
cable to this connector, then install the module to a slot opening at the back
of the system chassis.
P5K-VM
®
P5K-VM IEEE 1394a connector
IE1394_2
PIN 1
GND
+12V
TPB2-
GND
TPA2-
+12V
TPB2+
GND
TPA2+
Never connect a USB cable to the IEEE 1394a connector. Doing so will damage
the motherboard!
You can connect the front panel 1394 cable to the ASUS Q-Connector (1394,
red) rst, and then install the Q-Connector (1394) to the 1394 connector
onboard if your chassis supports front panel 1394 ports.
The IEEE 1394a module cable is purchased separately.
7. Optical drive audio connector (4-pin CD)
These connectors allow you to receive stereo audio input from sound sources
such as a CD-ROM, TV tuner, or MPEG card.
P5K-VM
®
P5K-VM Internal audio connector
CD
Right Audio Channel
Left Audio Channel
Ground
Ground
