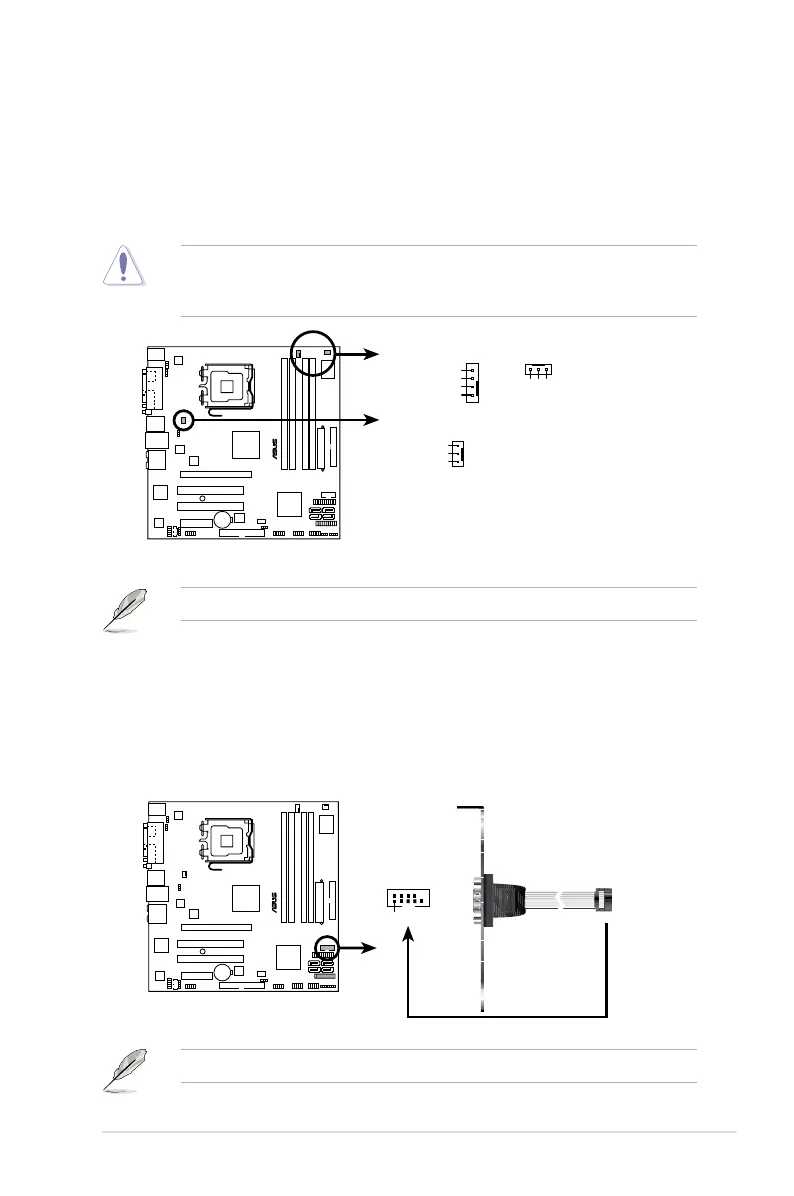

8. CPU, chassis, and power fan connectors
(4-pin CPU_FAN, 3-pin CHA_FAN1, 3-pin PWR_FAN)
The fan connectors support cooling fans of 350 mA~2000 mA (24 W max.)
or a total of 1 A~7 A (84 W max.) at +12V. Connect the fan cables to the fan
connectors on the motherboard, making sure that the black wire of each
cable matches the ground pin of the connector.
Do not forget to connect the fan cables to the fan connectors. Insufcient air
ow inside the system may damage the motherboard components. These are
not jumpers! Do not place jumper caps on the fan connectors!
Only the CPU-FAN connectors support the ASUS Q-FAN feature.
P5K-VM
®
P5K-VM Fan connectors
CPU_FAN CHA_FAN1
GND
Rotation
+12V
PWR_FAN
GND
CPU FAN PWR
CPU FAN IN
CPU FAN PWM
GND
Rotation
+12V
9. Serial port connector (10-1 pin COM1)
This connector is for a serial (COM) port. Connect the serial port module
cable to this connector, then install the module to a slot opening at the back
of the system chassis.
P5K-VM
®
PIN 1
COM1
P5K-VM COM port connector
The serial port module is purchased separately.

Asus P5K-VM Specifications

General

ECC	No
Non-ECC	Yes
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Maximum number of SMP processors	1
USB 2.0 connectors	6
Special features	ASUS AI Lifestyle Features: - AP Trigger. - ASUS AI Gear2. - ASUS AI Nap. - ASUS Q-Fan. ASUS Crystal Sound: - ASUS Noise Filter. ASUS EZ DIY: - ASUS Q-Connector. - ASUS CrashFree BIOS 3. - ASUS EZ Flash 2.
Manageability features	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Controller interface type	Serial ATA
Controller 2nd interface type	UltraDMA 100/66/33
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC883
Power source type	ATX
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS PC Probe II ASUS Update
Graphics card	GMA 3100
Maximum graphics card memory	256 MB
LAN controller	Marvell 88E8056
Networking features	Gigabit Ethernet
BIOS memory size	64 Mbit

Weight and Dimensions

Width	244 mm
