ASUS P5KR 2-31

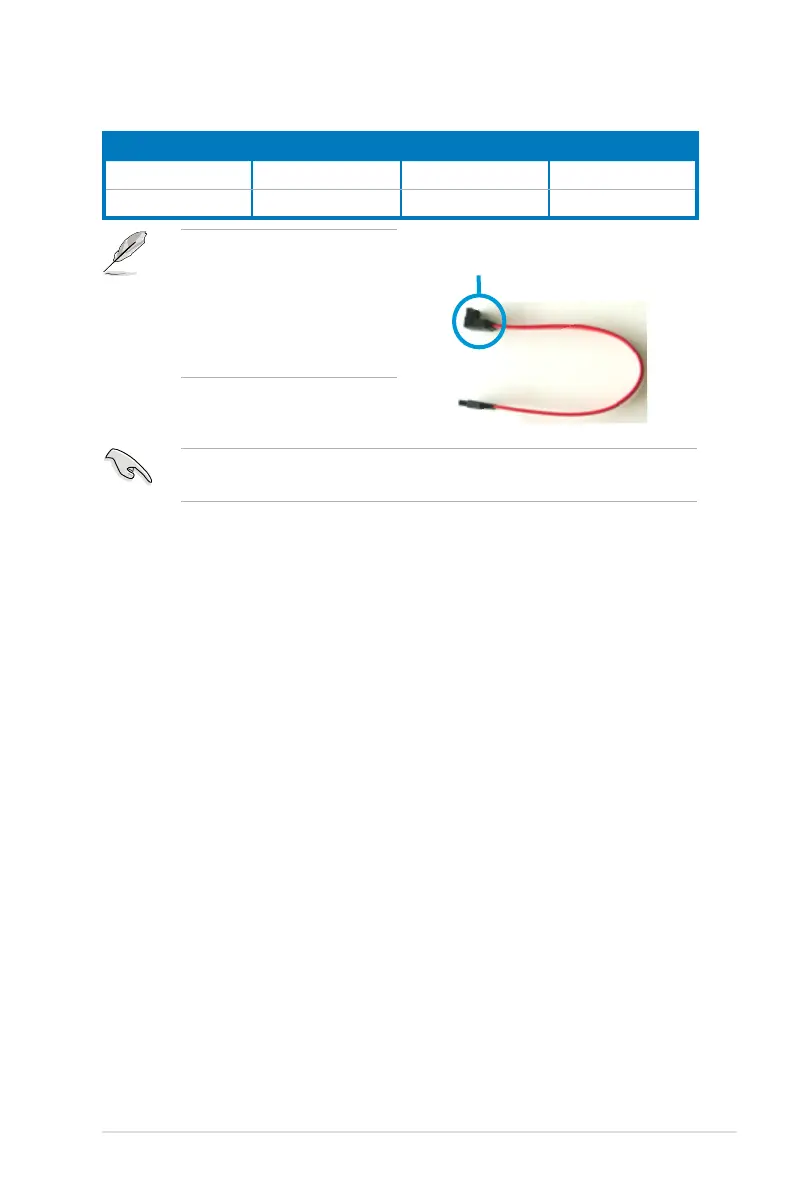

Connect the right-angle side
of SATA signal cable to SATA
device. Or you may connect the
right-angle side of SATA cable to
the onboard SATA port to avoid
mechanical conict with huge
graphics cards.
right angle side
Serial ATA hard disk drive connection
Connector Color Setting Use
SATA 1/2 Red Master Boot disk
SATA 3/4 Black Slave Data disk
When using hot-plug and NCQ, set the Congure SATA as in the BIOS to
[AHCI]. See section 4.3.6 SATA Conguration for details.
