Chapter 1: Product introductionChapter 1: Product introduction
Chapter 1: Product introductionChapter 1: Product introduction
Chapter 1: Product introduction
Onboard LEDOnboard LED
Onboard LEDOnboard LED
Onboard LED
The motherboard comes with a standby power LED that lights up to
indicate that the system is ON, in sleep mode, or in soft-off mode.
This is a reminder that you should shut down the system and unplug
the power cable before removing or plugging in any motherboard

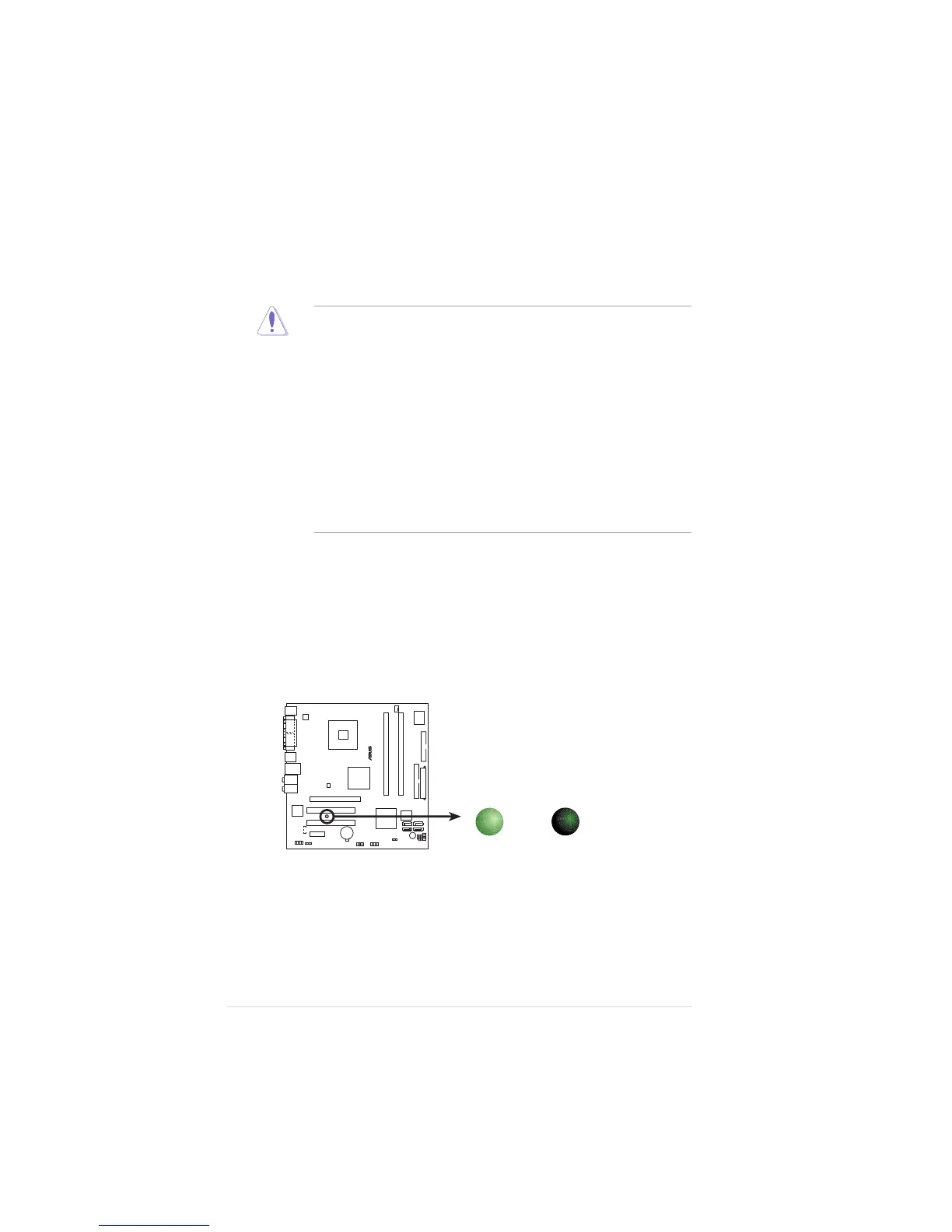

component. The illustration below shows the location of the onboard
LED.
1.4 Before you proceed
Take note of the following precautions before you install motherboard
components or change any motherboard settings.
• Unplug the power cord from the wall socket before touching any
component.
• Use a grounded wrist strap or touch a safely grounded object or to
a metal object, such as the power supply case, before handling
components to avoid damaging them due to static electricity
• Hold components by the edges to avoid touching the ICs on them.
• Whenever you uninstall any component, place it on a grounded
antistatic pad or in the bag that came with the component.
•
Before you install or remove any component, ensureBefore you install or remove any component, ensure
Before you install or remove any component, ensureBefore you install or remove any component, ensure
Before you install or remove any component, ensure
that the ATX power supply is switched off or thethat the ATX power supply is switched off or the
that the ATX power supply is switched off or thethat the ATX power supply is switched off or the
that the ATX power supply is switched off or the
power cord is detached from the power supply. power cord is detached from the power supply.
power cord is detached from the power supply. power cord is detached from the power supply.
power cord is detached from the power supply. Failure
to do so may cause severe damage to the motherboard, peripherals,
and/or components.
®
P5LD2-VM SE
P5LD2-VM SE Onboard LED
SB_PWR
ON
Standby
Power
OFF
Powere
d
Off

Asus P5LD2-VM SE Specifications

General

ECC	No
Number of memory slots	2
Maximum internal memory	2 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Maximum number of SMP processors	1
S/PDIF out connector	Yes
Number of SATA connectors	4
Special features	ASUS CrashFree BIOS 2 ASUS C.P.R. ASUS Q-Fan ASUS EZ Flash ASUS MyLogo
Manageability features	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Controller interface type	Serial ATA 300/150
Controller 2nd interface type	UltraDMA 100/66/33
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC882
Audio output channels	7.1 channels
Motherboard form factor	ATX
Bundled software	Drivers ASUS PC Probe II ASUS Update Anti-Virus software
Graphics card	GMA 950
Networking features	Gigabit Ethernet
BIOS memory size	32 Mbit

Weight and Dimensions

Width	245 mm
