Asus P5LD2-VM SE User Manual

ASUS P5LD2-VM SEASUS P5LD2-VM SE
ASUS P5LD2-VM SEASUS P5LD2-VM SE
ASUS P5LD2-VM SE
1-311-31
1-311-31
1-31
12.12.
12.12.
12.
Chassis intrusion connector (4-1 pin CHASSIS)Chassis intrusion connector (4-1 pin CHASSIS)
Chassis intrusion connector (4-1 pin CHASSIS)Chassis intrusion connector (4-1 pin CHASSIS)
Chassis intrusion connector (4-1 pin CHASSIS)
This connector is for a chassis-mounted intrusion detection sensor or
switch. Connect one end of the chassis intrusion sensor or switch
cable to this connector. The chassis intrusion sensor or switch sends a
high-level signal to this connector when a chassis component is
removed or replaced. The signal is then generated as a chassis
intrusion event.
By default, the pins labeled “Chassis Signal” and “Ground” are shorted
with a jumper cap. Remove the jumper caps only when you intend to
use the chassis intrusion detection feature.
11.11.
11.11.
11.

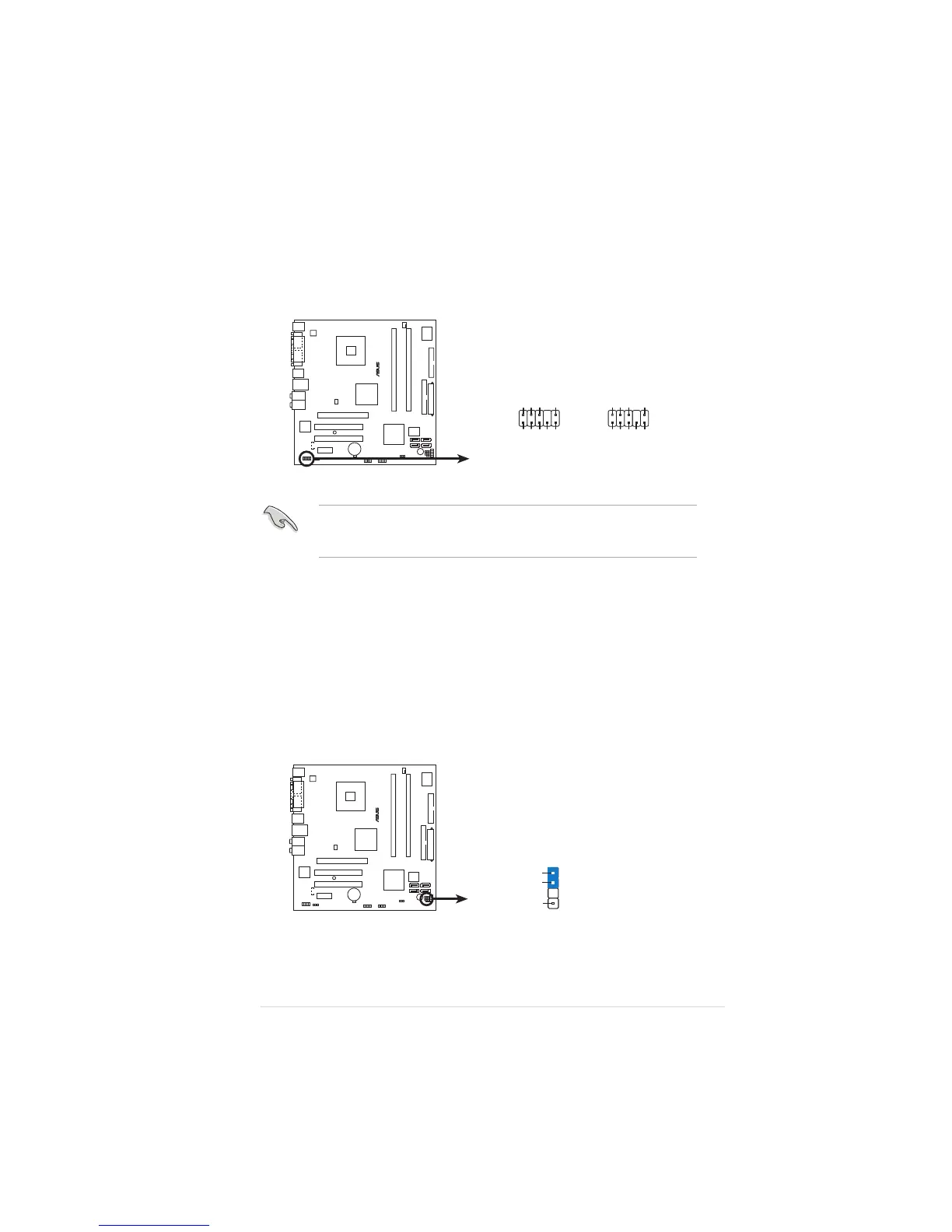

Front panel audio connector (10-1 pin AAFP)Front panel audio connector (10-1 pin AAFP)
Front panel audio connector (10-1 pin AAFP)Front panel audio connector (10-1 pin AAFP)
Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module
that supports either HD Audio or legacy AC’97 audio standard.
It is recommended that you connect a high-definition front panel audio
module to this connector to avail of the motherboard’s high-definition
audio capability.
®
P5LD2-VM SE
P5LD2-VM SE Analog front panel connector
AAFP
Legacy AC’97
compliant definitio
n
Azalia
compliant definition
SENSE2_RETUR
PORT1 L
PORT2 R
PORT2 L
SENSE1_RETUR
SENSE_SEND
PORT1 R
PRESENCE#
GND
NC
MIC2
Line out_R
Line out_L
NC
NC
MICPWR
NC
AGND
®
P5LD2-VM SE
P5LD2-VM SE Chassis intrusion connector
CHASSIS
(Defaul
t)
+5VSB_MB
Chassis Signal
GND

Asus P5LD2-VM SE Specifications

General

ECC	No
Number of memory slots	2
Maximum internal memory	2 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Maximum number of SMP processors	1
S/PDIF out connector	Yes
Number of SATA connectors	4
Special features	ASUS CrashFree BIOS 2 ASUS C.P.R. ASUS Q-Fan ASUS EZ Flash ASUS MyLogo
Manageability features	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Controller interface type	Serial ATA 300/150
Controller 2nd interface type	UltraDMA 100/66/33
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC882
Audio output channels	7.1 channels
Motherboard form factor	ATX
Bundled software	Drivers ASUS PC Probe II ASUS Update Anti-Virus software
Graphics card	GMA 950
Networking features	Gigabit Ethernet
BIOS memory size	32 Mbit

Weight and Dimensions

Width	245 mm
