Asus P5LD2-VM User Manual

1-141-14
1-141-14
1-14
Chapter 1: Product introductionChapter 1: Product introduction
Chapter 1: Product introductionChapter 1: Product introduction
Chapter 1: Product introduction

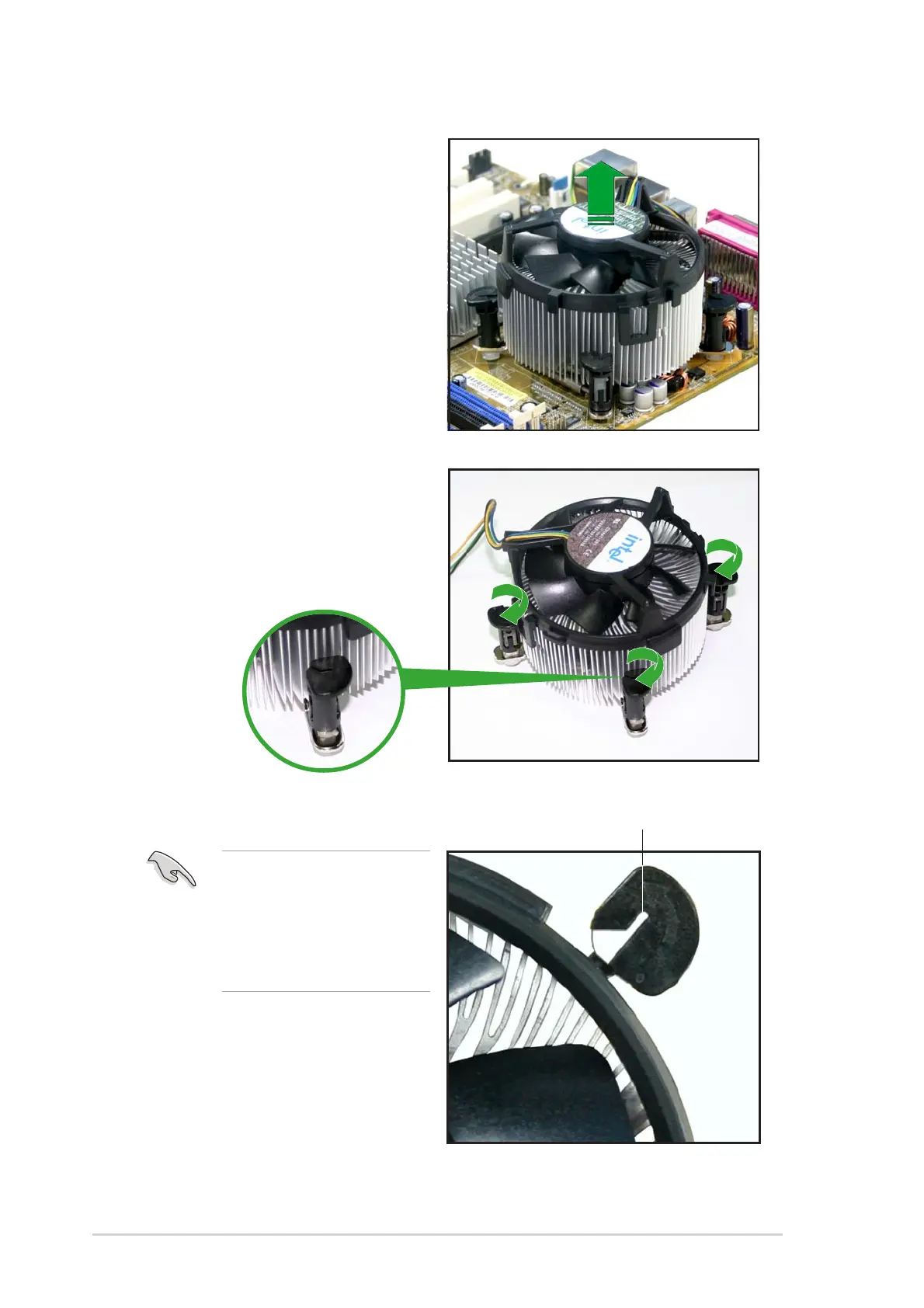

4. Remove the heatsink and fan
assembly from the
motherboard.
5. Rotate each fastener
clockwise to reset the
orientation.
The narrow end of the
groove should point
outward after resetting.
(The photo shows the
groove shaded for
emphasis.)
Narrow end of the grooveNarrow end of the groove
Narrow end of the grooveNarrow end of the groove
Narrow end of the groove

Asus P5LD2-VM Specifications

General

I/O ports	Back Panel I/O Ports 1 x Parallel 1 x Serial 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x VGA 1 x Audio I/O 1 x RJ45 4 x USB Internal I/O Connectors 2 x USB connectors supports additional 4 USB ports CPU / Chassis FAN connectors 24-pin EATX Power connector 4-pin ATX 12V Power connector Chassis Intrusion connector S/PDIF out connector CD audio in 3-pin PWR FAN connector Front panel High Definition Audio connector
Power source type	ATX
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS PC Probe II Anti-Virus Software ASUS LiveUpdate
Networking features	Intel Gb LAN
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
