Digital Audio connector (4-1 pin SPDIF_OUT)Digital Audio connector (4-1 pin SPDIF_OUT)
Digital Audio connector (4-1 pin SPDIF_OUT)Digital Audio connector (4-1 pin SPDIF_OUT)
Digital Audio connector (4-1 pin SPDIF_OUT)
This connector is for the S/PDIF audio module to allow digital sound
output. Connect one end of the S/PDIF audio cable to this connector
and the other end to the S/PDIF module.
The S/PDIF out module is purchased separately.
8.8.
8.8.
8.
Power LED connector (3-pin PLED)Power LED connector (3-pin PLED)
Power LED connector (3-pin PLED)Power LED connector (3-pin PLED)
Power LED connector (3-pin PLED)
This 3-pin connector is for the system power LED. The system power
LED lights up when you turn on the system power, and blinks when
the system is in sleep mode.
®

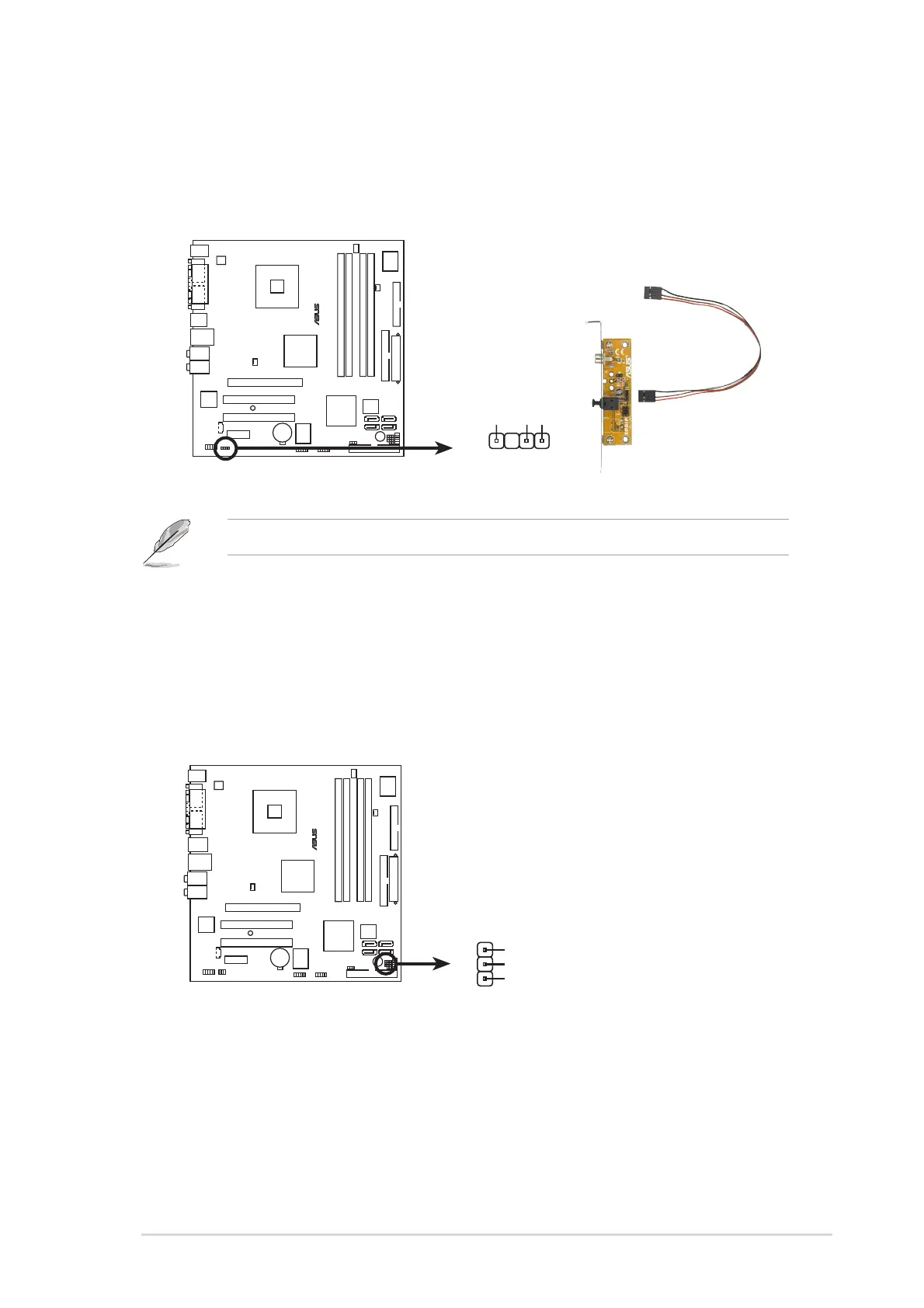

P5LD2-VM
P5LD2-VM Digital audio connector
+5V
SPDIFOUT GND
SPDIF_OUT
®
P5LD2-VM
P5LD2-VM PLED connector
PLED
PLED
+
1
NC
PLED
-

Asus P5LD2-VM Specifications

General

I/O ports	Back Panel I/O Ports 1 x Parallel 1 x Serial 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x VGA 1 x Audio I/O 1 x RJ45 4 x USB Internal I/O Connectors 2 x USB connectors supports additional 4 USB ports CPU / Chassis FAN connectors 24-pin EATX Power connector 4-pin ATX 12V Power connector Chassis Intrusion connector S/PDIF out connector CD audio in 3-pin PWR FAN connector Front panel High Definition Audio connector
Power source type	ATX
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS PC Probe II Anti-Virus Software ASUS LiveUpdate
Networking features	Intel Gb LAN
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
