Power/Soft-off button (Black 2-pin PWRSW)Power/Soft-off button (Black 2-pin PWRSW)
Power/Soft-off button (Black 2-pin PWRSW)Power/Soft-off button (Black 2-pin PWRSW)
Power/Soft-off button (Black 2-pin PWRSW)
This connector is for the system power button. Pressing the power
button turns the system ON or puts the system in SLEEP or SOFT-OFF
mode depending on the BIOS settings. Pressing the power switch for
more than four seconds while the system is ON turns the system OFF.
System Power LED connector (2-pin PWRLED)System Power LED connector (2-pin PWRLED)
System Power LED connector (2-pin PWRLED)System Power LED connector (2-pin PWRLED)
System Power LED connector (2-pin PWRLED)
This 2-pin connector is for the system power LED. The system power
LED lights up when you turn on the system power, and blinks when
the system is in sleep mode.
Reset button (Blue 2-pin RESET)Reset button (Blue 2-pin RESET)
Reset button (Blue 2-pin RESET)Reset button (Blue 2-pin RESET)
Reset button (Blue 2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for
system reboot without turning off the system power.
Hard disk drive activity (Red 2-pin IDELED)Hard disk drive activity (Red 2-pin IDELED)
Hard disk drive activity (Red 2-pin IDELED)Hard disk drive activity (Red 2-pin IDELED)
Hard disk drive activity (Red 2-pin IDELED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD
Activity LED cable to this connector. The IDE LED lights up or flashes
when data is read from or written to the HDD.
14.14.
14.14.
14.
System panel connector (10-1 pin F_PANEL)System panel connector (10-1 pin F_PANEL)
System panel connector (10-1 pin F_PANEL)System panel connector (10-1 pin F_PANEL)
System panel connector (10-1 pin F_PANEL)
This connector supports several chassis-mounted functions.
The sytem panel connector is color-coded for easy connection. Refer to
the connector description below for details.
®

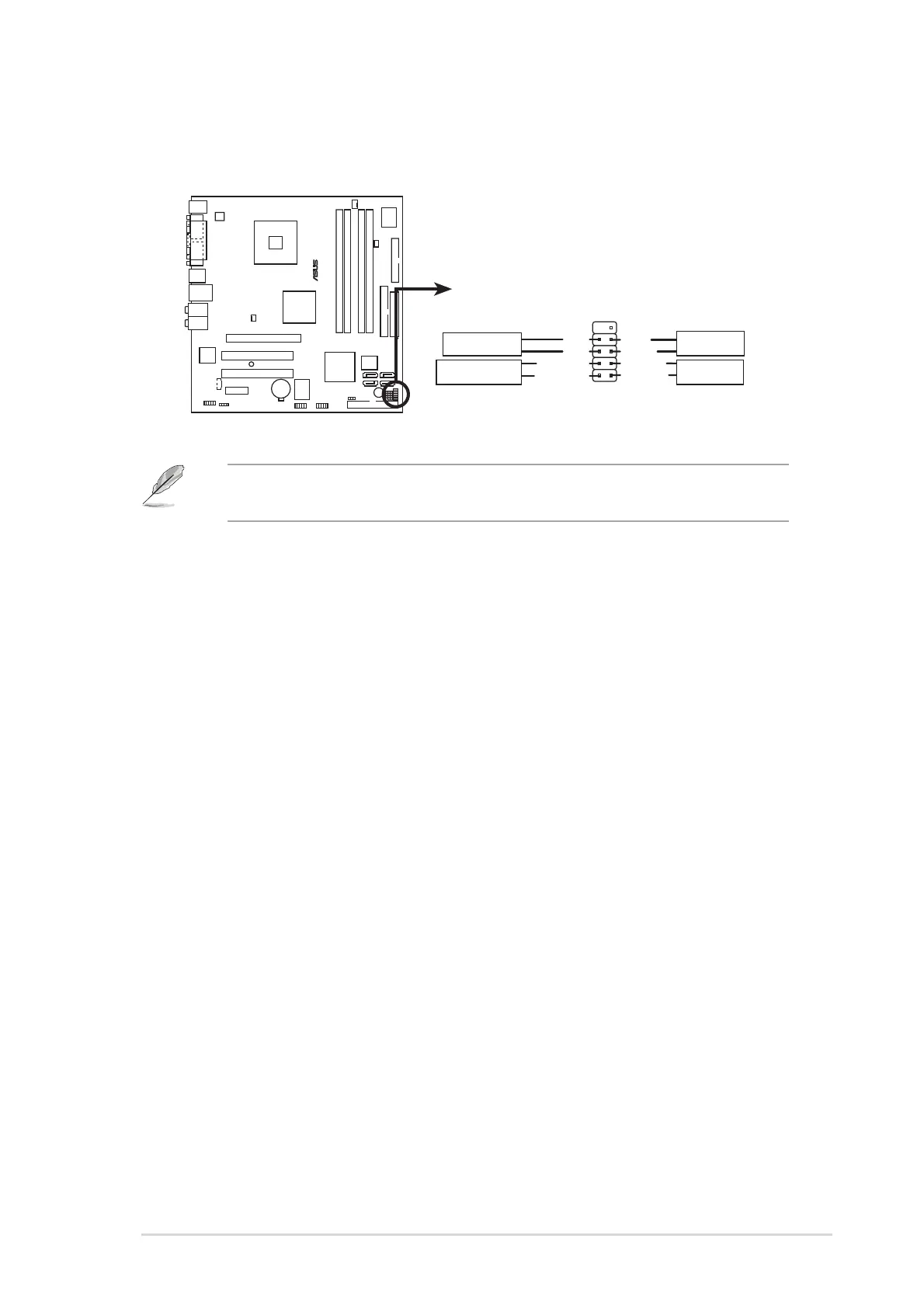

P5LD2-VM
F_PANEL
P5LD2-VM System panel connector
* Requires an ATX power supply.
PWR Ground
GND Reset
IDE_LED+
IDE_LED-
RESE
T
IDE LED
PWRSW
PWR_LED-
PWRLED
PWR_LED+
