Asus P5Q-E User Manual

2-20 Chapter 2: Hardware information
2.5.4 PCI slots
The PCI slots support cards such as a LAN card, SCSI card, USB card, and other
cards that comply with PCI specications. Refer to the gure below for the location
of the slots.
2.5.5 PCI Express x1 slots
This motherboard supports PCI Express x1 network cards, SCSI cards and other
cards that comply with the PCI Express specications. Refer to the gure below for
the location of the slots.
2.5.6 PCI Express 2.0 x16 slots
This motherboard has two PCI Express 2.0 x16 slots that support PCI Express
2.0 x16 graphic cards complying with the PCI Express specications. Refer to the
gure below for the location of the slots.
2.5.7 Universal PCI Express x16 slot
This motherboard also supports one Universal PCI Express x16 slot with a
maximum speed of x4 link. Refer to the gure below for the location of the slot.

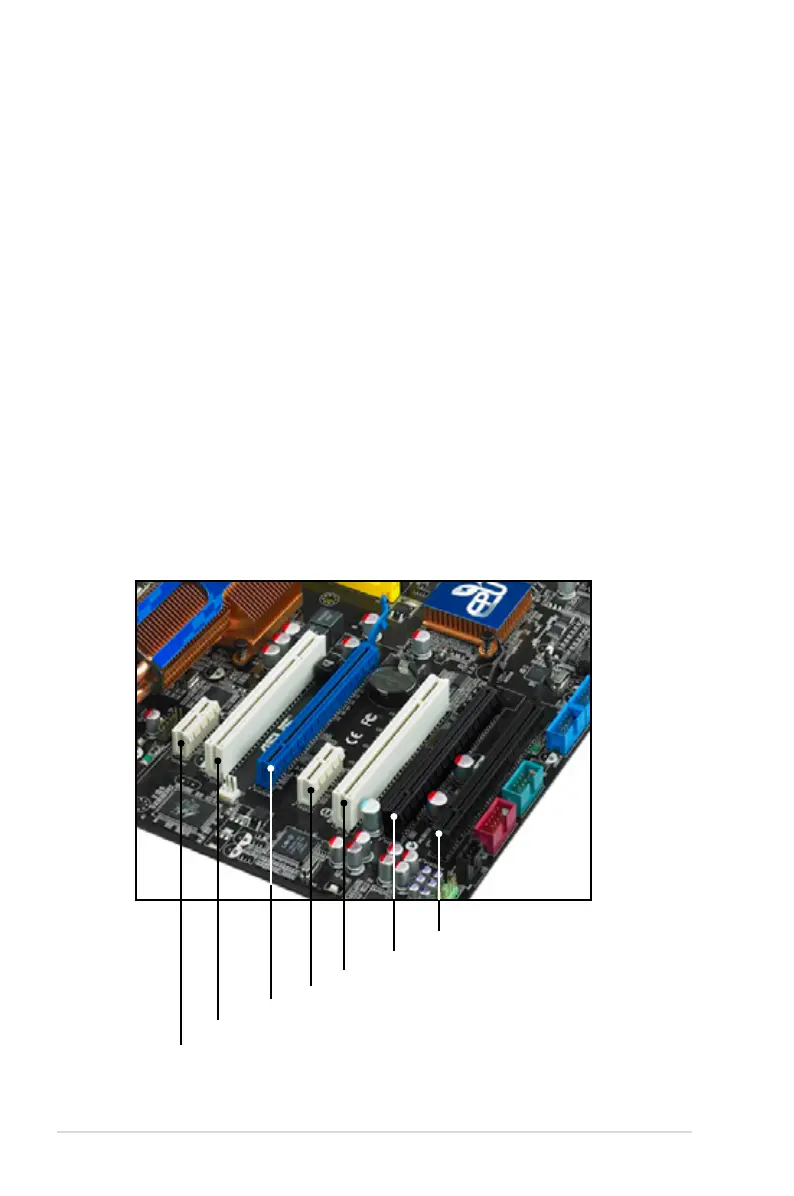

PCI1 slot
PCIe 2.0 x16_1 slot (blue)
Universal PCIe x16_3 slot (black, at max. x4 link)
PCIe x1_2 slot
PCI2 slot
PCIe 2.0 x16_2 slot (black, at max. x8 link)
PCIe x1_1 slot

Asus P5Q-E Specifications

General

Non-ECC	Yes
Number of memory slots	4
Maximum internal memory	16 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Number of COM connectors	1
Number of SATA connectors	6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
Audio chip	ADI AD2000B
Audio output channels	7.1 channels
Motherboard form factor	ATX
BIOS memory size	16 Mbit
RAID levels	0, 1, 10

Weight and Dimensions

Depth	244 mm
Width	305 mm
