Asus P6 Series - Rear Panel Features

3
Installation manual
English
4. Power connector.
5. One of the following audio ports congurations:
• 6-channel
• 8-channel
Refer to the conguration table in the User Guide
for details.
6. LAN (RJ-45) port ( )
7. USB 2.0 / USB 3.0 ports ( )
8. VGA port ( )
9. One of the following ports:
• E-SATA port ( )
• Serial (COM1) port ( )
• DVI port ( )
• HDMI port ( )
Do NOT cover the rear vent , and the ambient
temperature is limited up to 35
o
C to prevent the
system from overheating.

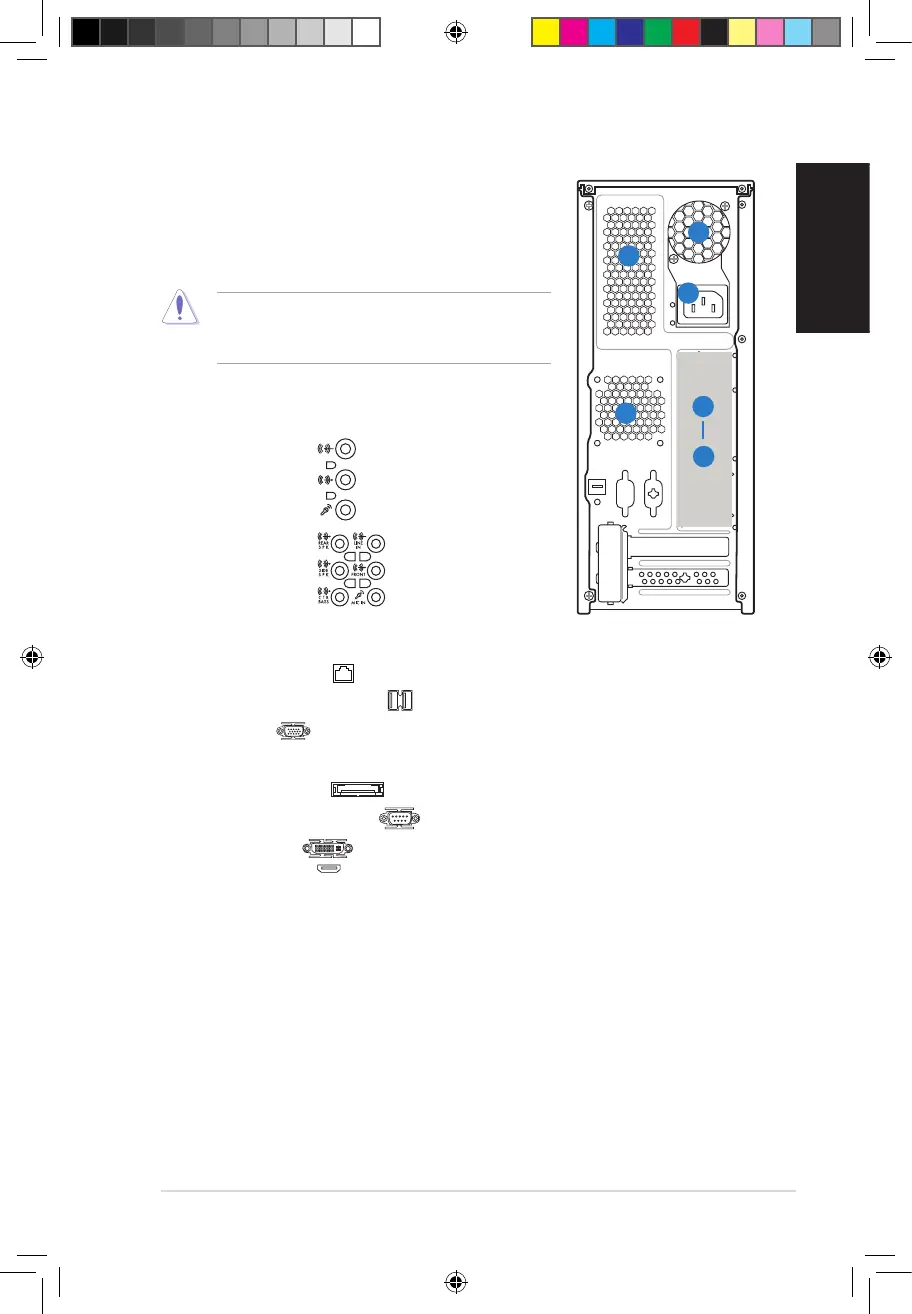

Rear panel features
1
2
3
1. Chassis air vent.
2. Power supply unit fan vent.
3. Chassis fan vent.
4
5
9
