5
Installation manual
English

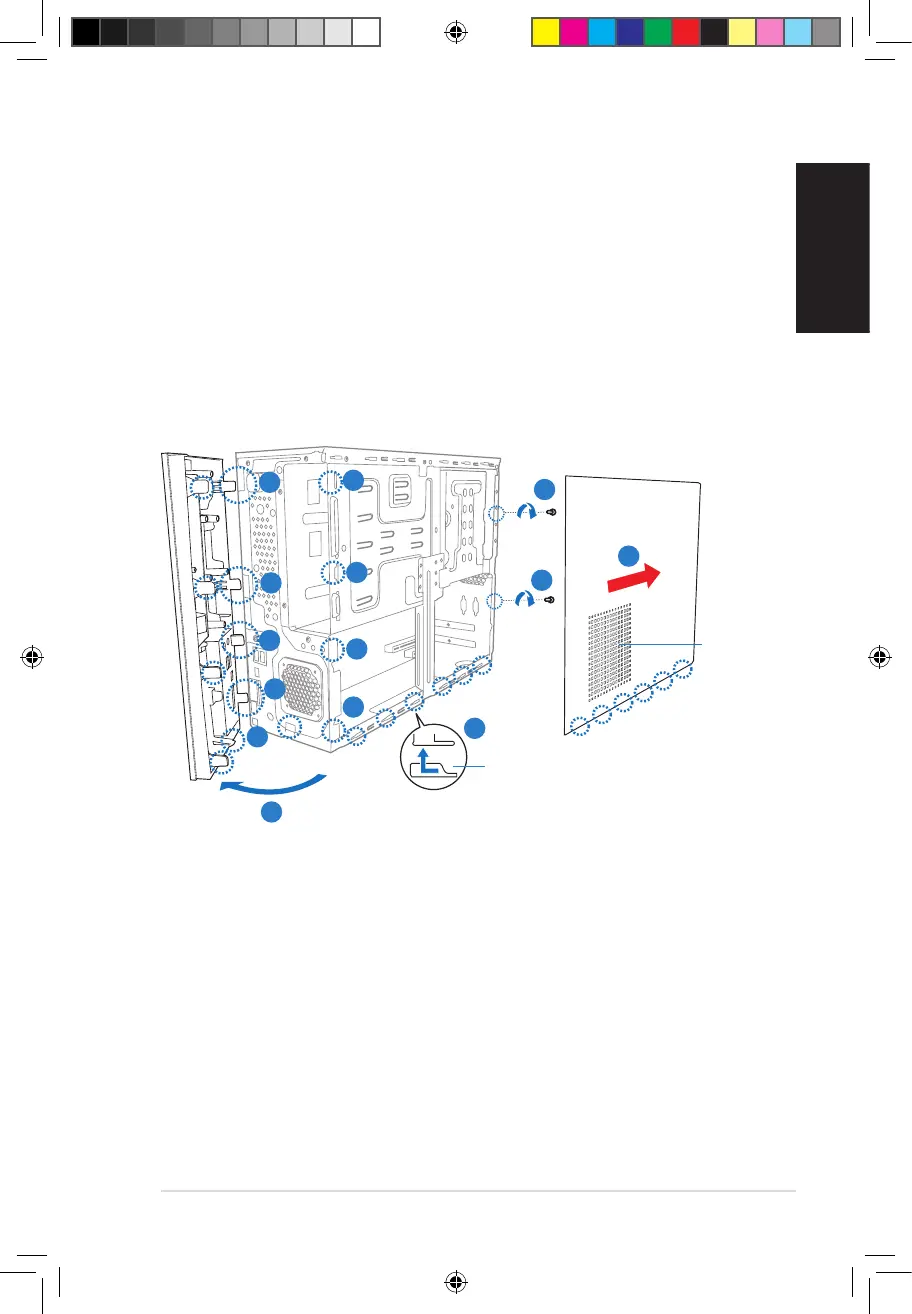

Removing the side cover and
front panel assembly
1. Remove the cover screws on the rear panel.
2. Pull the side cover toward the rear panel until its hooks disengage from the
chassis tab holes. Set the side cover aside.
3. Locate the front panel assembly hooks, then lift them until they disengage
from the chassis.
4. Swing the front panel assembly to the left, until the hinge-like tabs on the
right side of the assembly are exposed.
5. Remove the front panel assembly, then set aside.
Air duct
1
1
2
4
3
4
4
3
3
3
Chassis tab holes
4
4
2
4
A6359_P6 QSG.indb 5 2/16/11 5:43:12 PM
