Asus P8H61-M PLUS V2 User Manual

ASUS P8H61-M PLUS V21-2
P8H61-M PLUS V2
1.2 Motherboard overview
Before you install the motherboard, study the conguration of your chassis to ensure that the
motherboard ts into it.
Ensure that you unplug the power cord before installing or removing the motherboard.
Failure to do so can cause you physical injury and damage motherboard components.
1.2.1 Placement direction
When installing the motherboard, ensure that you place it into the chassis in the correct
orientation. The edge with external ports goes to the rear part of the chassis as indicated in
the image below.

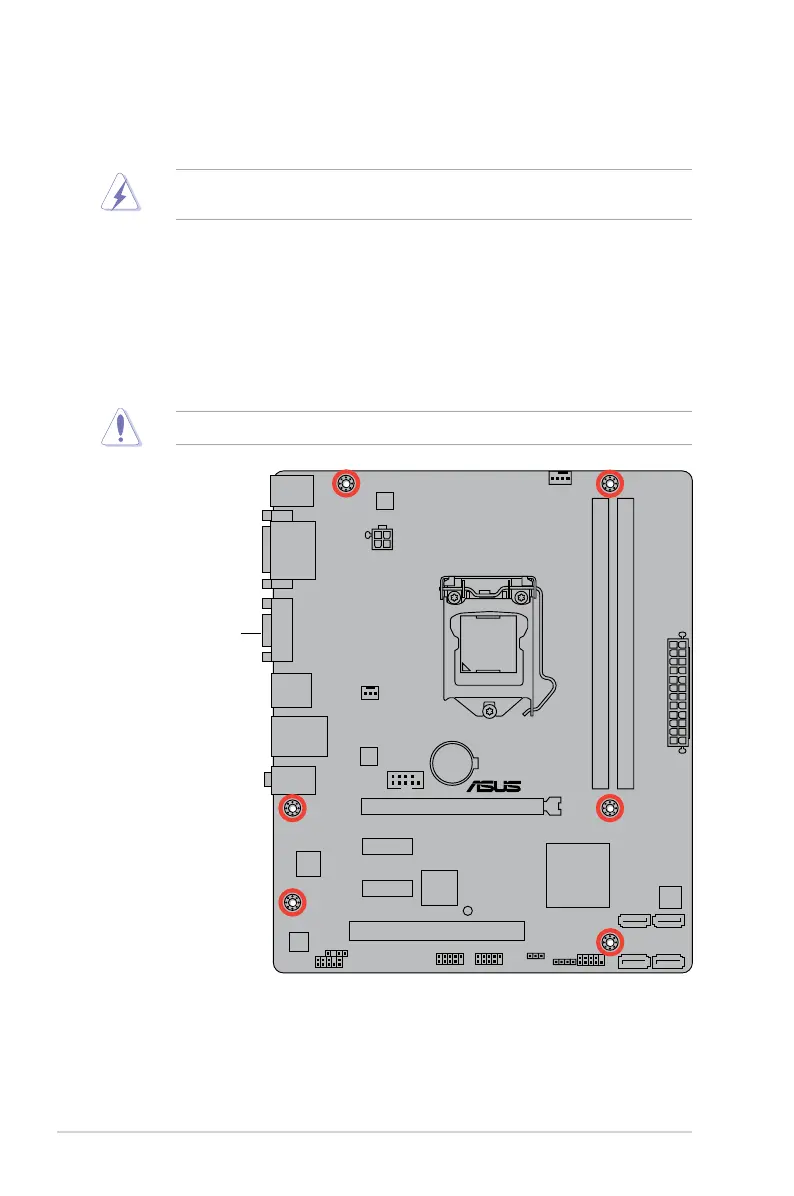

1.2.2 Screw holes
Place six screws into the holes indicated by circles to secure the motherboard to the chassis.
Do not overtighten the screws! Doing so can damage the motherboard.
Place this side towards
the rear of the chassis

Asus P8H61-M PLUS V2 Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
Memory Support	2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
CPU Support	Intel Socket 1155 for 2nd and 3rd Generation Core i7/Core i5/Core i3 Processors
Expansion Slots	1 x PCIe 3.0/2.0 x16
Storage	4 x SATA 3Gb/s
USB Ports	8 x USB 2.0 port(s) (4 at back panel, 4 at mid-board)
LAN	Realtek 8111F, 1 x Gigabit LAN Controller(s)
Video Outputs	1 x D-Sub
