Asus P8H61-M PLUS V2 User Manual

1-9Chapter 1: Product introduction
P8H61-M PLUS V2
P8H61-M PLUS V2 240-pin DDR3 DIMM sockets
DIMM_A1 DIMM_B1
1.4 System memory
1.4.1 Overview
The motherboard comes with two Double Data Rate 3 (DDR3) Dual Inline Memory Modules
(DIMM) sockets.
A DDR3 module has the same physical dimensions as a DDR2 DIMM but is notched
differently to prevent installation on a DDR2 DIMM socket. DDR3 modules are developed for
better performance with less power consumption.

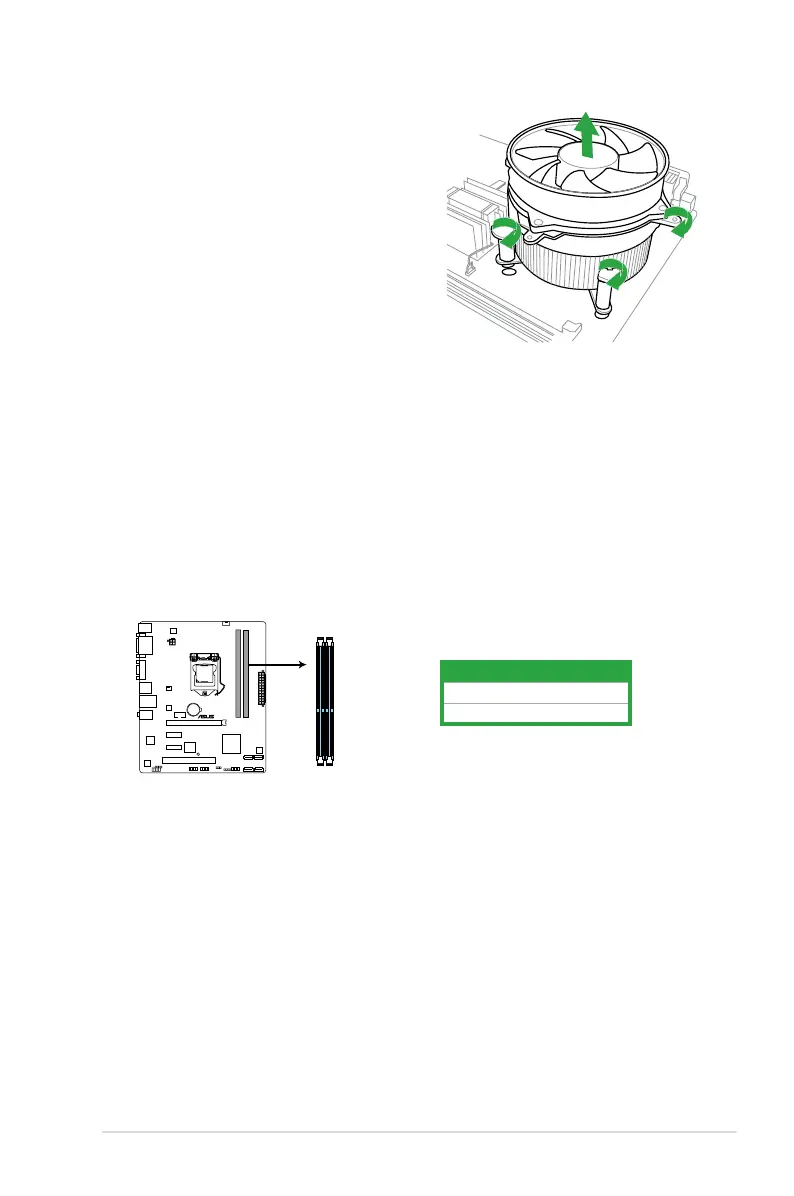

The gure illustrates the location of the DDR3 DIMM sockets:
4. Carefully remove the heatsink and fan
assembly from the motherboard.
5. Rotate each fastener clockwise to ensure
correct orientation when reinstalling.
Channel Sockets
Channel A DIMM_A1
Channel B DIMM_B1

Asus P8H61-M PLUS V2 Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
Memory Support	2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
CPU Support	Intel Socket 1155 for 2nd and 3rd Generation Core i7/Core i5/Core i3 Processors
Expansion Slots	1 x PCIe 3.0/2.0 x16
Storage	4 x SATA 3Gb/s
USB Ports	8 x USB 2.0 port(s) (4 at back panel, 4 at mid-board)
LAN	Realtek 8111F, 1 x Gigabit LAN Controller(s)
Video Outputs	1 x D-Sub
