Asus P8H61-M PLUS V2 User Manual

1-13Chapter 1: Product introduction

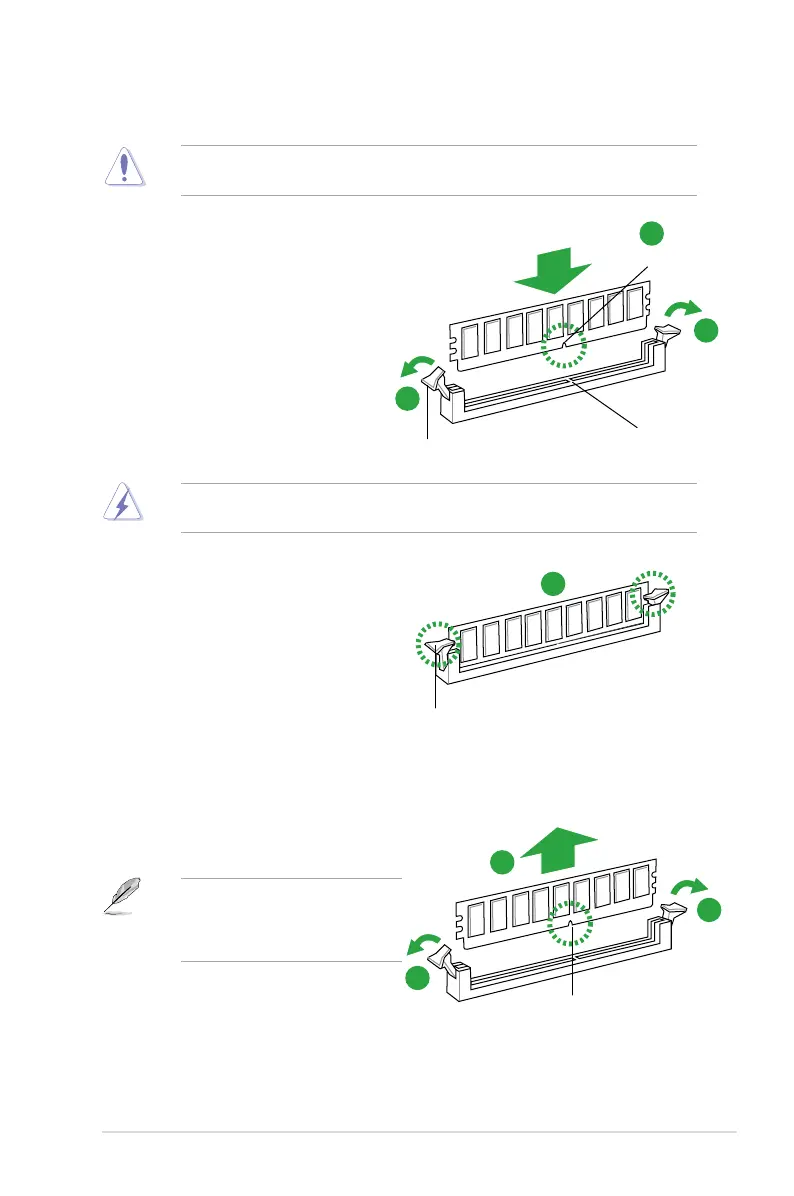

1.4.3 Installing a DIMM
Unplug the power supply before adding or removing DIMMs or other system components.
Failure to do so can cause severe damage to both the motherboard and the components.
1. Press the retaining clips outward to
unlock a DIMM socket.
2. Align a DIMM on the socket such that
the notch on the DIMM matches the
DIMM slot key on the socket.
Unlocked retaining clip
1
DIMM notch
2
1
A DIMM is keyed with a notch so that it ts in only one direction. DO NOT force a DIMM into
a socket in the wrong direction to avoid damaging the DIMM.
3. Firmly insert the DIMM into the socket
until the retaining clips snap back in place
and the DIMM is properly seated.
Locked Retaining Clip
3
1.4.4 Removing a DIMM
To remove a DIMM:
1. Simultaneously press the retaining clips
outward to unlock the DIMM.
2. Remove the DIMM from the socket.
Support the DIMM lightly with your
ngers when pressing the retaining
clips. The DIMM might get damaged
when it ips out with extra force.
DIMM notch
1
1
2
DIMM slot key

Asus P8H61-M PLUS V2 Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
Memory Support	2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
CPU Support	Intel Socket 1155 for 2nd and 3rd Generation Core i7/Core i5/Core i3 Processors
Expansion Slots	1 x PCIe 3.0/2.0 x16
Storage	4 x SATA 3Gb/s
USB Ports	8 x USB 2.0 port(s) (4 at back panel, 4 at mid-board)
LAN	Realtek 8111F, 1 x Gigabit LAN Controller(s)
Video Outputs	1 x D-Sub
