Asus P8H61-M PLUS V2 User Manual

1-5Chapter 1: Product introduction

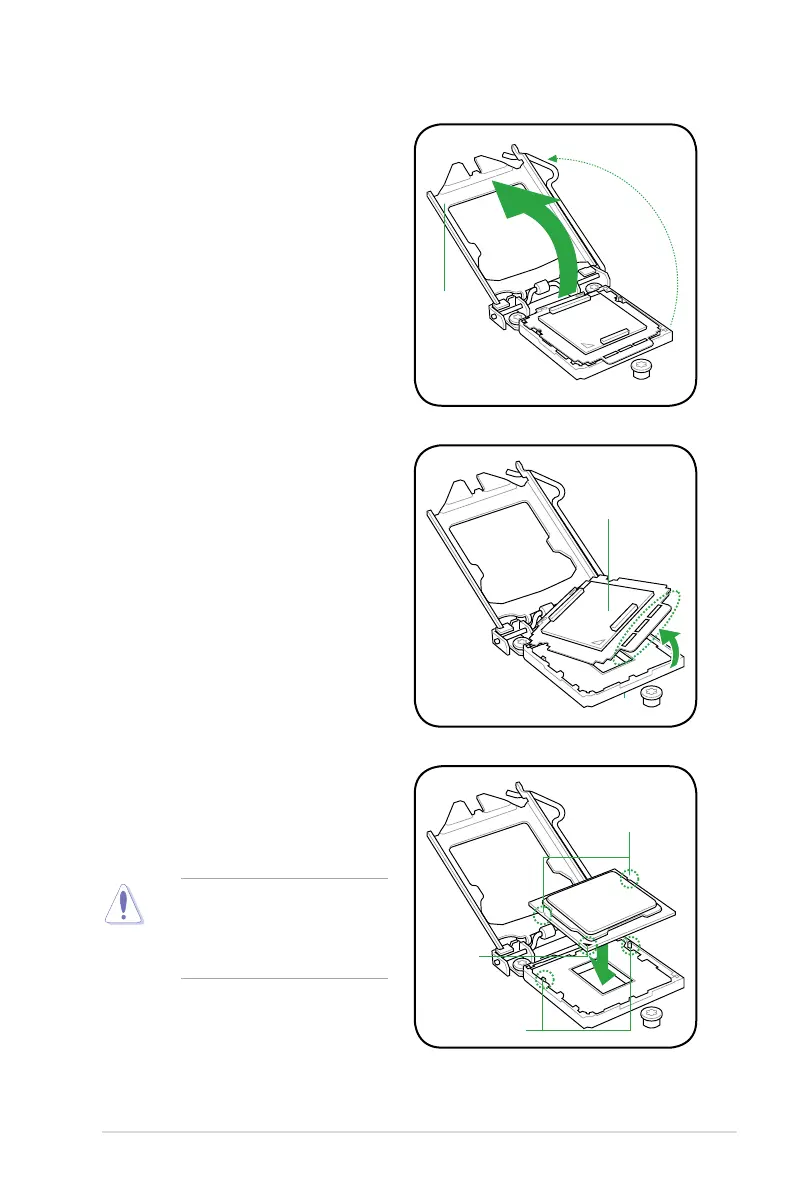

3. Lift the load lever in the direction of the
arrow until the load plate is completely
lifted.
Load plate
4. Remove the PnP cap from the CPU
socket by lifting the tab only.
The CPU ts in only one correct
orientation. DO NOT force the CPU
into the socket to prevent bending
the connectors on the socket and
damaging the CPU!
Gold
triangle
mark
Alignment keys
CPU notches
5. Position the CPU over the socket,
ensuring that the gold triangle is on the
bottom-left corner of the socket, and
then t the socket alignment keys into
the CPU notches.
PnP cap

Asus P8H61-M PLUS V2 Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
Memory Support	2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
CPU Support	Intel Socket 1155 for 2nd and 3rd Generation Core i7/Core i5/Core i3 Processors
Expansion Slots	1 x PCIe 3.0/2.0 x16
Storage	4 x SATA 3Gb/s
USB Ports	8 x USB 2.0 port(s) (4 at back panel, 4 at mid-board)
LAN	Realtek 8111F, 1 x Gigabit LAN Controller(s)
Video Outputs	1 x D-Sub
