4-14
Chapter 4: Software support
Chapter 4
4.3.7 Sensor Recorder
Sensor Recorder monitors the changes in the system voltage, temperature, and fan speed on
a timeline. The History Record function allows you to designate specic time spans on record
to keep track of the three system statuses for certain purposes.
Launching Sensor Recorder
To launch Sensor Recorder, click Tool > Sensor Recorder on the AI Suite II main menu bar.

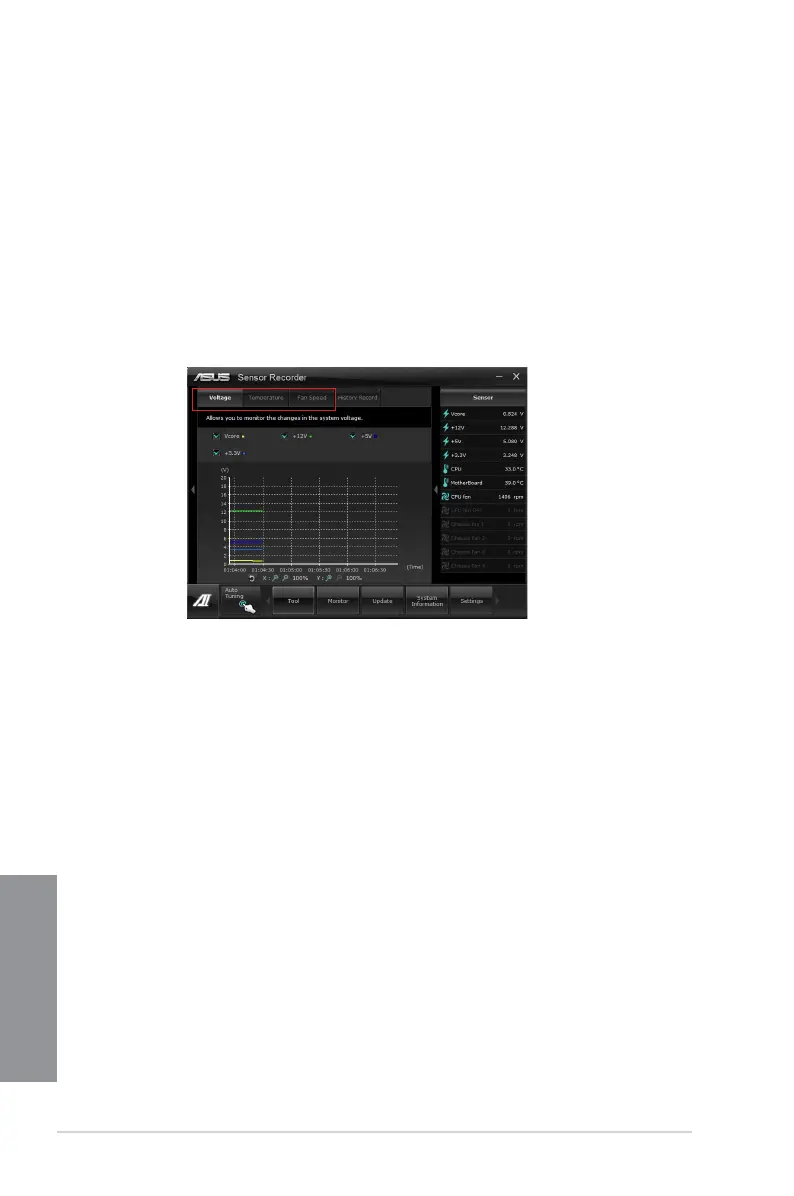

Using Sensor Recorder
Click on Voltage/ Temperature/ Fan Speed tabs for the status you want to monitor. Colored
lines will automatically appear on the diagram to indicate the immediate changes in the
system status.
Using History Record
1. Click the History Record tab and adjust the settings on the left for Record Interval and
Record Duration according to need.
2. Click
Start Recording to start measuring and recording each sensor.
3. To stop recording, click
Recording again.
