Asus P9X79-E WS - Page 49

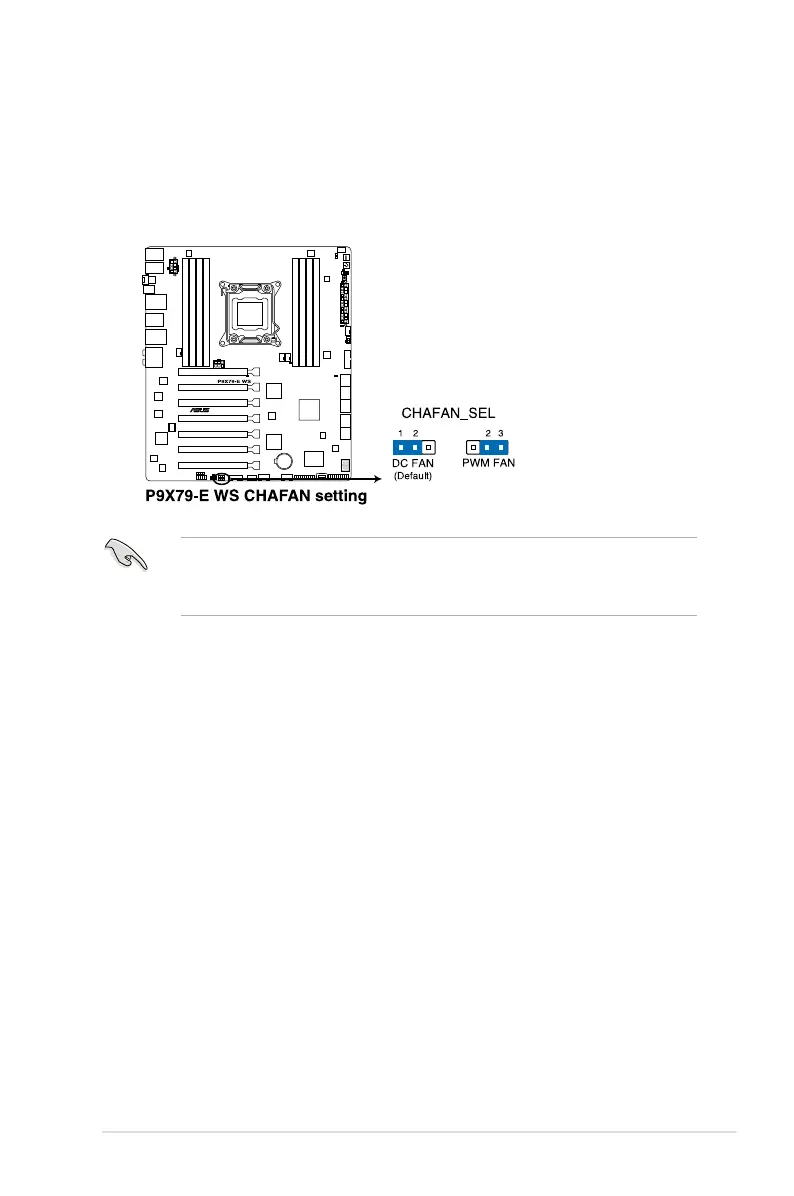

2. Chassis Fan control setting (3-pin CHAFAN_SEL)
These jumpers allow you to switch for fan pin selection. The CHAFAN_SEL jumper is
for the front fans and rear fans control. Set to pins 1–2 when using 3-pin fans or pins
2–3 when using 4-pin fans.
• If you use a 4-pin fan but set the jumper to pin 1-2, the fan you installed may not work.
• If you use a 3-pin fan but set the jumper for a 4-pin fan, the fan control will not work
and the fan you installed will always run at full speed.
ASUS P9X79-E WS
2-25
