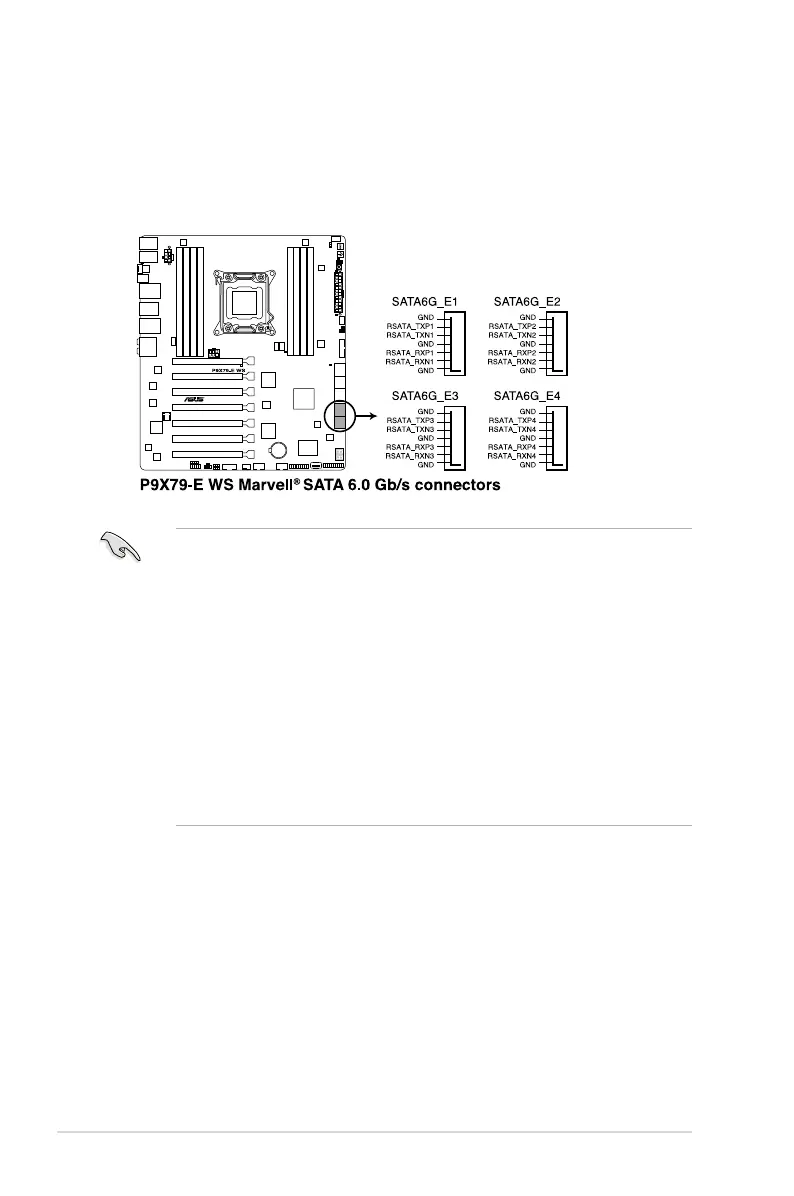

3. Marvell
®
Serial ATA 6.0 Gb/s connectors
(7-pin SATA6G_E1/E2/E3/E4 [gray])
These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0
Gb/s signal cables.
• For high performance of ASUS SSD Caching II, please connect one HDD and one SSD
to Marvell
®
SATA6G_E12/E34 connectors.
• For regular usage, the SATA6G_E12/E34 connectors are recommended for data
drivers.
• You must install Windows
®
XP Service Pack 3 or later versions before using Serial ATA
hard disk drives.
• Press <Ctrl> + <M> during POST to enter the Marvell RAID utility to create or delete a
RAID conguration.
• If you want to install a Windows operating system to a RAID conguration created using
the Marvell SATA controller, you have to create a RAID driver disk using the motherboard
support DVD and load the driver during OS installation. For 32/64bit Windows XP OS,
load rst the Marvell shared library driver, and then load Marvell 92xx SATA Controller
Driver. For Windows 7 / Windows 8 OS, load only the Marvell 92xx SATA Controller
Driver.
