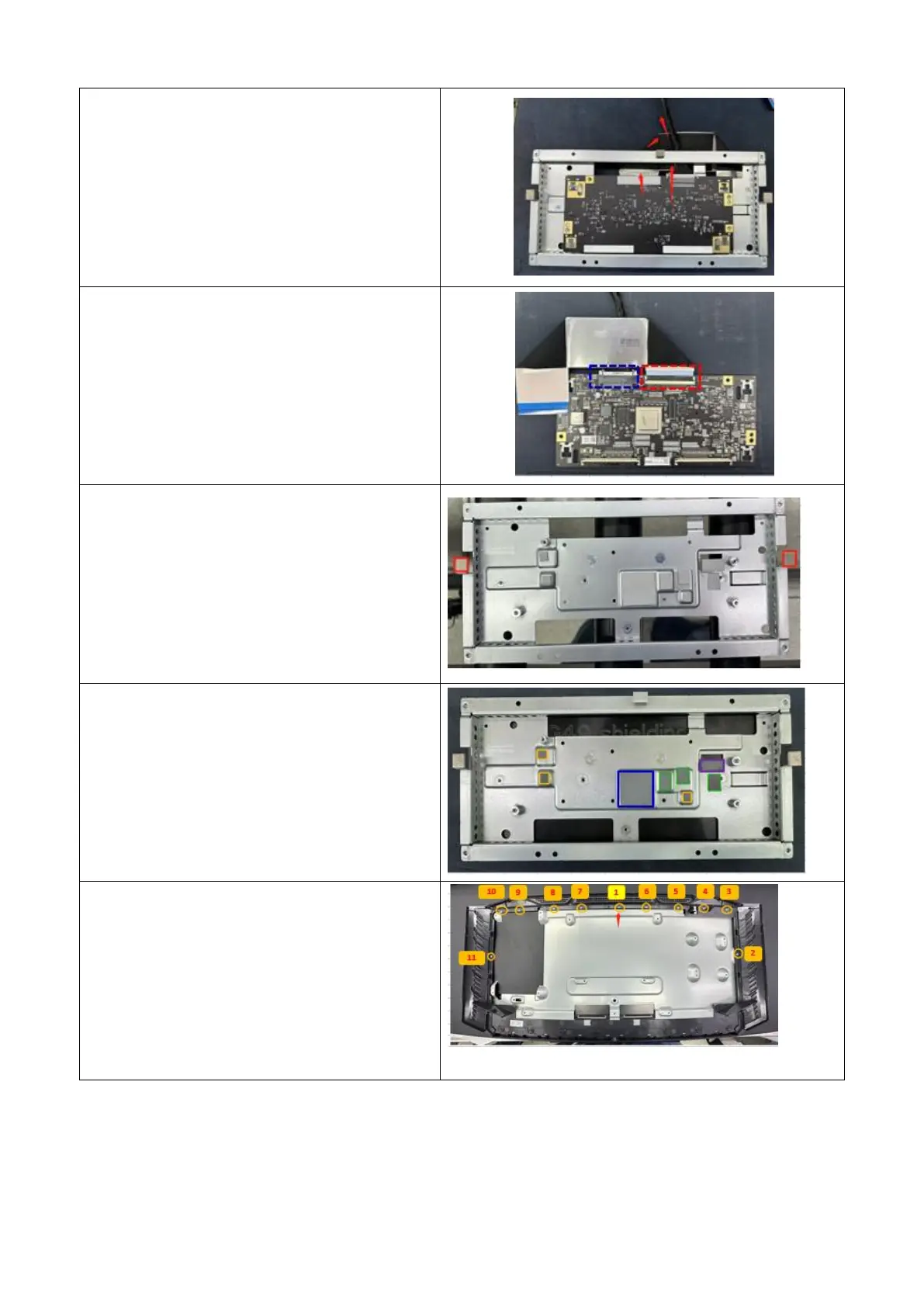

15-1. 拆下 T-CON &排线&FFC 线
15-1. Remove T-CON&flat cable&FFC
cable
16-1.打开钢琴盖拔下 FFC 线与拔下排线
16-1. Open the piano cover, unplug the
FFC cable and unplug the ribbon cable
17-1. 撕掉 BKT 2PCS 导电泡棉
17-1. Tear off BKT 2PCS conductive foam
18-1. 撕掉 BKT 8PCS 散热胶
18-1. Remove BKT 8PCS heat
dissipation adhesive
19-1. 拆中框 11PCS 螺丝
19-1. Remove the 11PCS screws from
the middle frame
