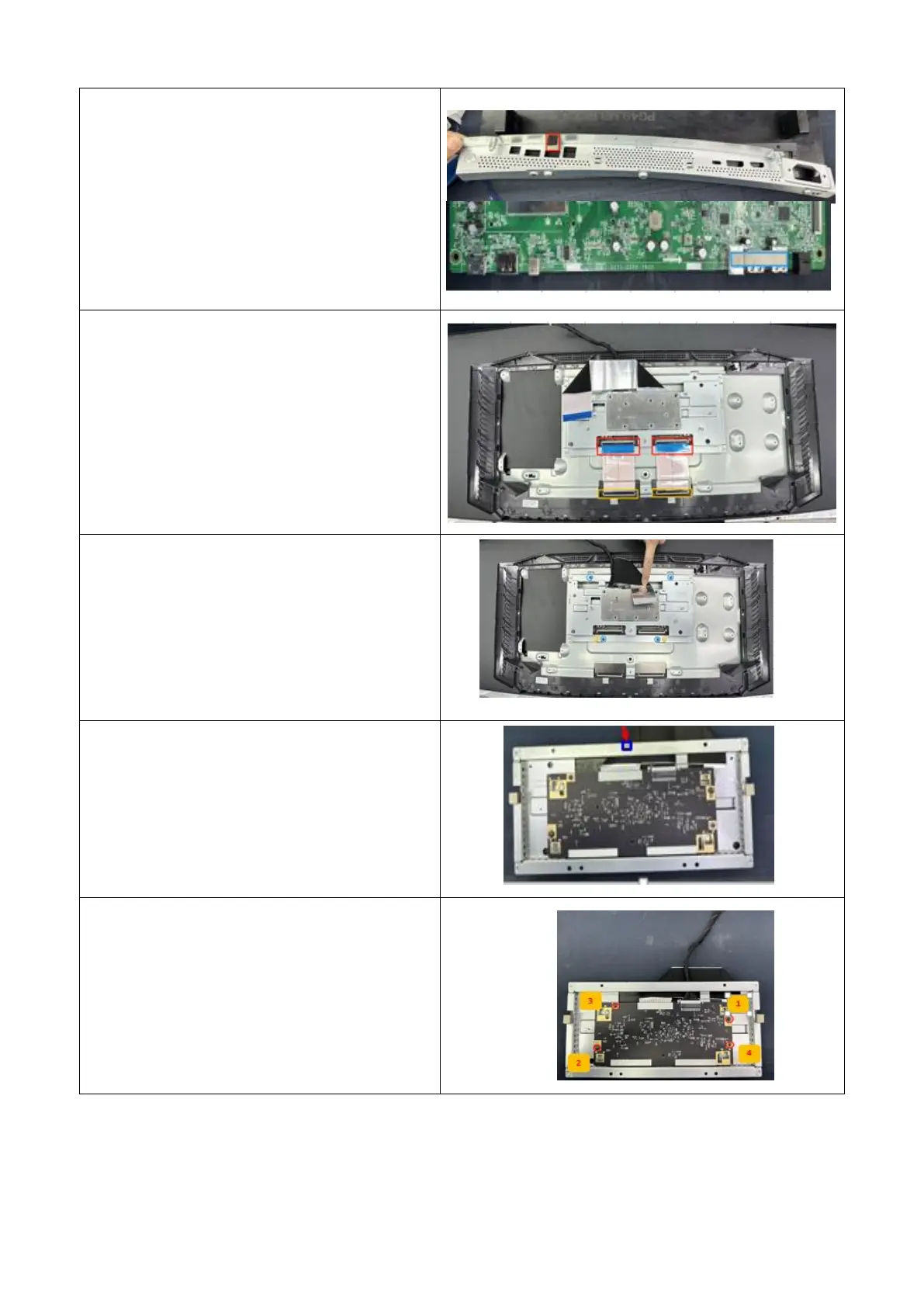

10-1. 撕掉主板 BKT 1pcs 导电泡棉+接口
1PCS 导电布
10-1. Tear off the motherboard BKT 1pcs
conductive foam+interface 1PCS
conductive cloth
11-1. 打开钢琴盖拔下 FFC 线
11-1. Open the piano cover and unplug
the FFC cable
12-1. 拆下 BKT4pcs 螺丝
12-1. Remove the BKT4pcs screws
13-1. 撕掉导电泡棉 1PCS
13-1. Tear off 1PCS of conductive foam
14-1. 拆下 T-CON 板 4PCS 螺丝
14-1. Remove 4 screws from the T-CON
board
