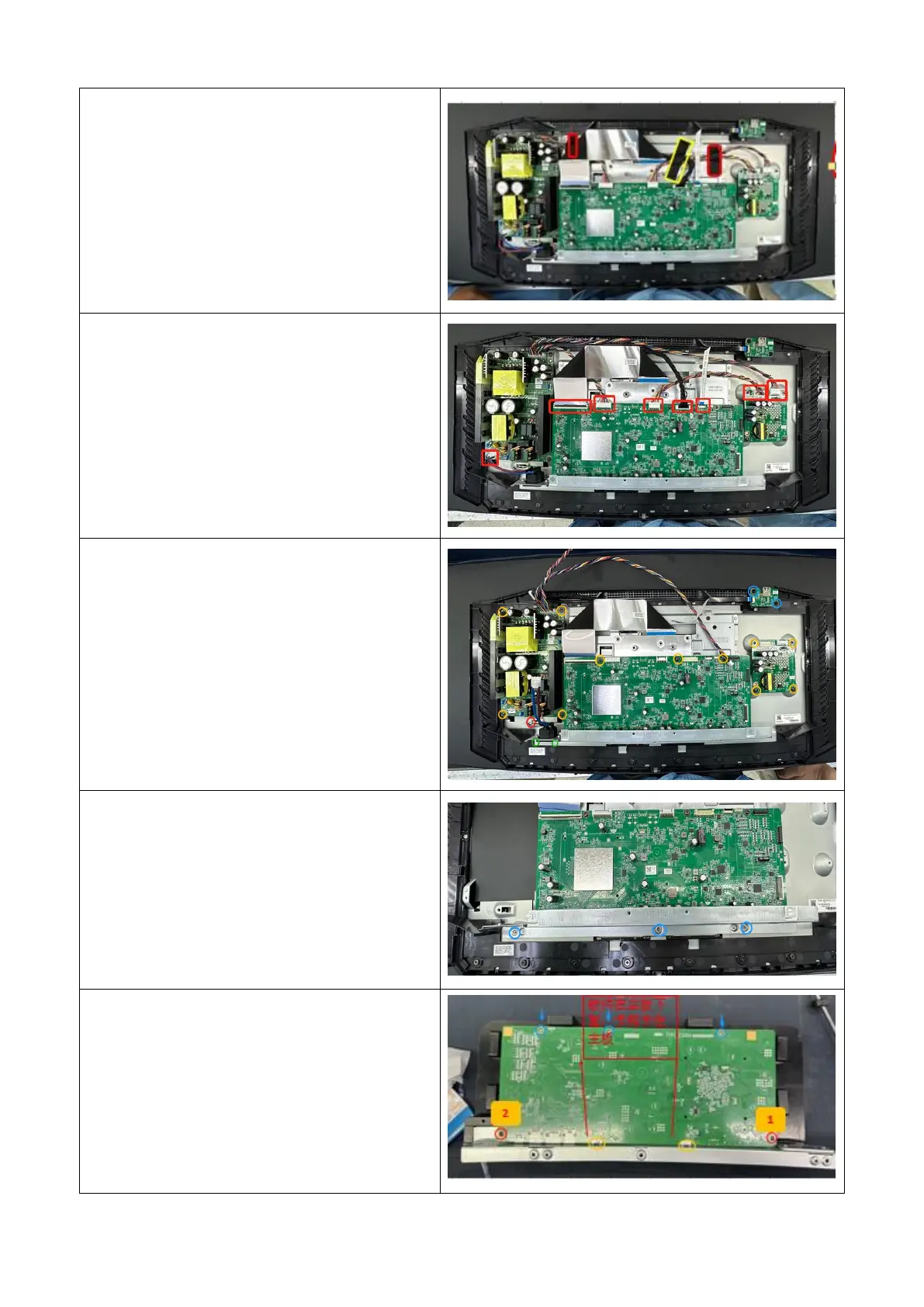

5-1.撕除固定线材 3PCS 胶带
5-1. Tear off 3 pieces of fixed wire and
tape
6-1.打开钢琴盖拔下 2PCS FFC 线，拔电
源排线/排线
6-1. Open the piano cover, unplug 2PCS
FFC cable, and unplug the power
cable/cable
7-1.拆电源板 4pcs+接地 1PCS+AC 接口
2PCS+主板 3pcs+小板 4PCS
7-1. Remove 4pcs of power board+1pcs
of grounding+2pcs of AC interface+3pcs
of motherboard+4pcs of small board
8-1.拆主板 BKT3pcs 螺丝
8-1. Remove the BKT3pcs screws from
the motherboard
9-1.拆主板+BKT2pcs 螺丝,分类摆放
9-1. Remove the BKT3pcs screws from
the motherboard
