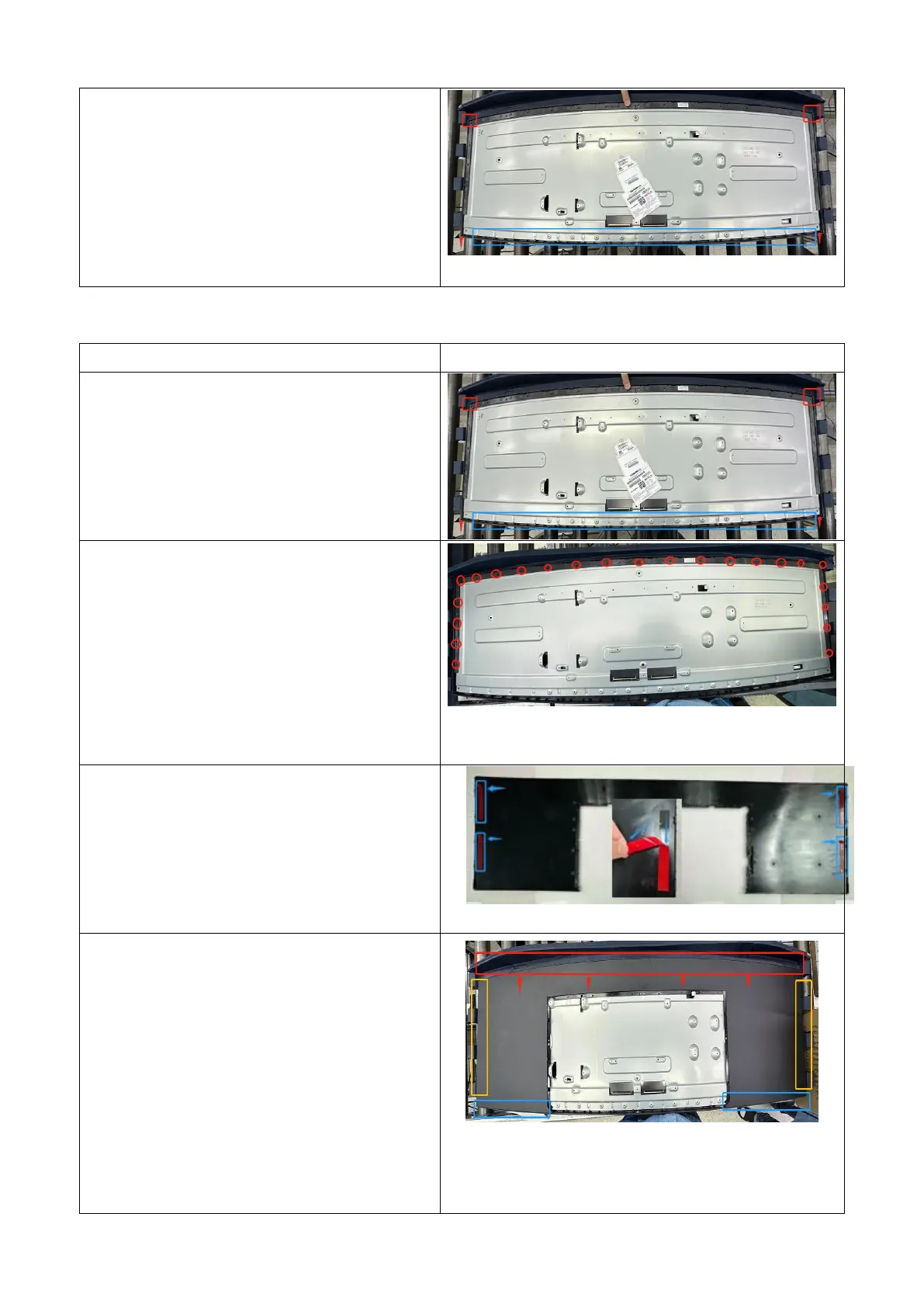

25-1. 取下前框
25-1. Remove the front frame
3.2 Assembly process
Descriptions
Refer photos
1-1. 组装前框，从底部向上卡合
1-1. Assemble the front frame and snap
it from the bottom up
2-1. 锁前框 23PCS 螺丝
2-1. Lock the front frame with 23 screws
3-1. 更换 4PCS 背胶/撕掉离型纸
3-1. Replace 4 pieces of
adhesive/remove release paper
4-1：卡四个角--》安装卡合左右两边从天
向地侧边
4-1. Install and snap the four corners from
the sky to the ground on the left and right
sides
4-2：安装卡合从天侧边向另一边卡合
4-2. Install and snap from the sky side to
the other side
4-3：卡合地侧抬起前框确认到位安装如图
顺序安装
