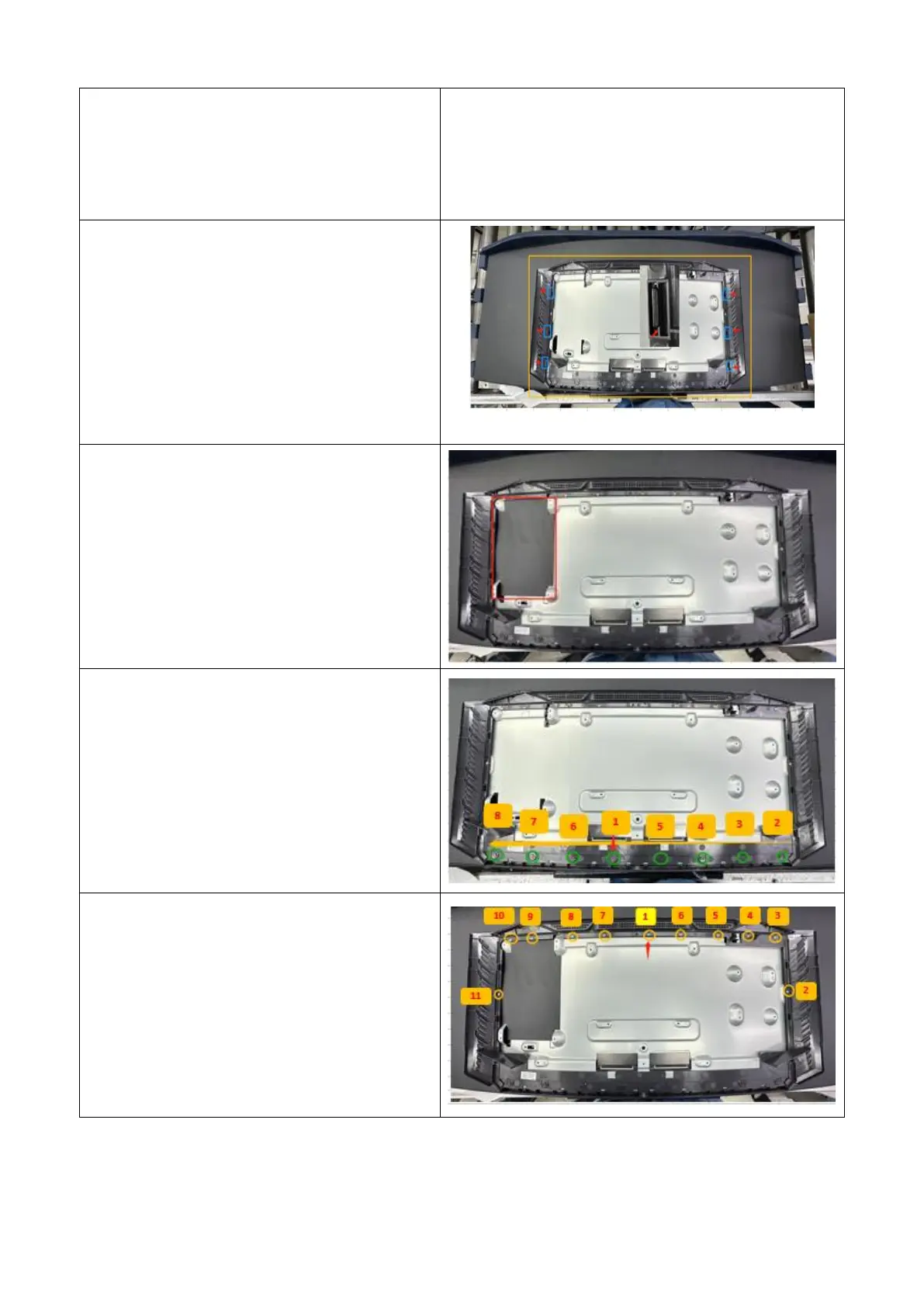

4-3. Engage the ground side and lift the
front frame to confirm it is in place. Install
in the sequence shown in the figure
5-1. 安装中框
5-1. Install the middle frame
6-1. 贴麦拉
6-1. Tiemai La
7-1. 锁中框 8PCS 螺丝
7-1. Lock the middle frame with 8 screws
8-1. 锁中框 11PCS 螺丝
8-1. Lock the middle frame with 11 screws
