ASUS Q87T
1-15

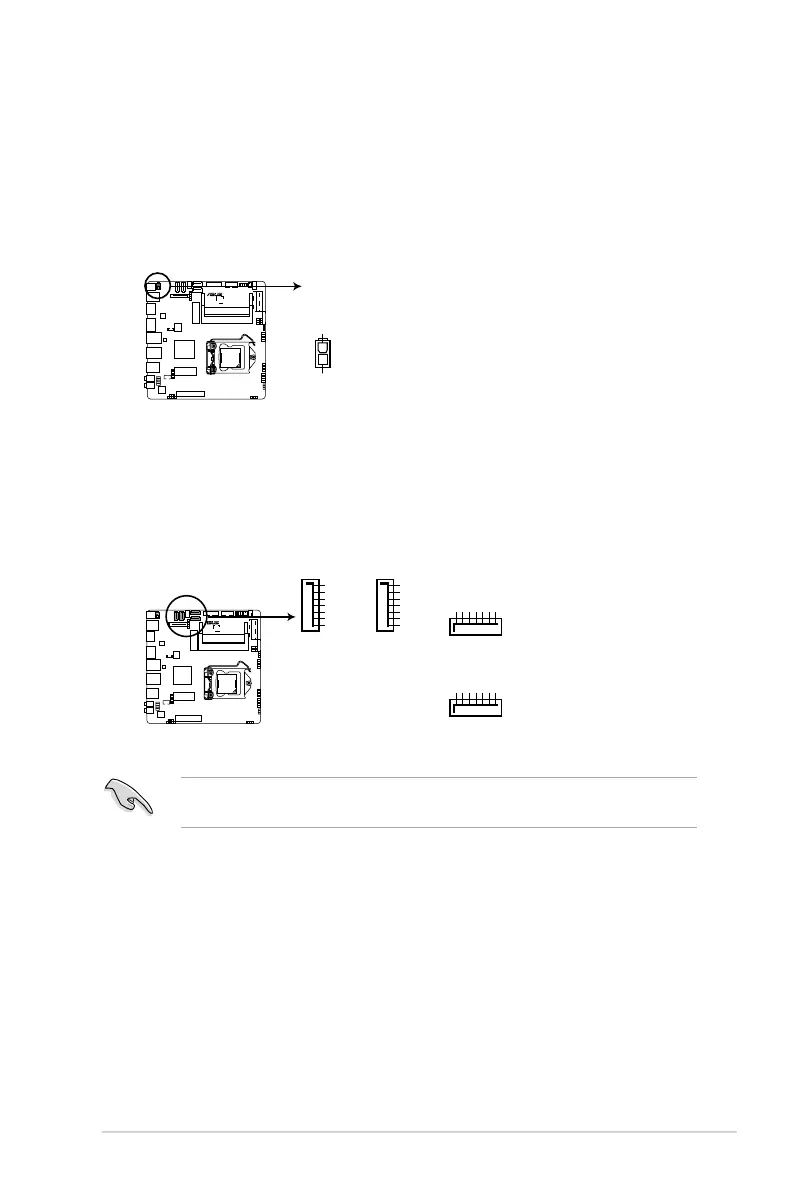

3. ATX power connector (2-pin ATX19V)
This connector is for an ATX power supply. The plug from the power supply is designed
to t this connector in only one orientation. Find the proper orientation and push down
rmly until the connector completely ts.
Q87T
Q87T DC power source
PIN 1
ATX19V
DC_JACK_INGND
4. Serial ATA 6.0 Gb/s connectors (7-pin SATA6G 1~4)
These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial
ATA 6.0 Gb/s signal cables.
When using hot-plug and NCQ, set the type of the SATA connectors in the BIOS to [AHCI].
See section 2.6.4 SATA Conguration for details.
Q87T
SATA6G_3
GND
RSATA_RXP1
RSATA_RXN1
GND
RSATA_TXN1
RSATA_TXP1 GND
SATA6G_1
GND RSATA_RXP3
RSATA_RXN3
GND
RSATA_TXN3
RSATA_TXP3 GND
SATA6G_4
GND
RSATA_RXP2
RSATA_RXN2
GND
RSATA_TXN2
RSATA_TXP2
GND
SATA6G_2
GND
RSATA_RXP4
RSATA_RXN4
GND
RSATA_TXN4
RSATA_TXP4
GND
Q87T SATA 6.0Gb/s connectors
