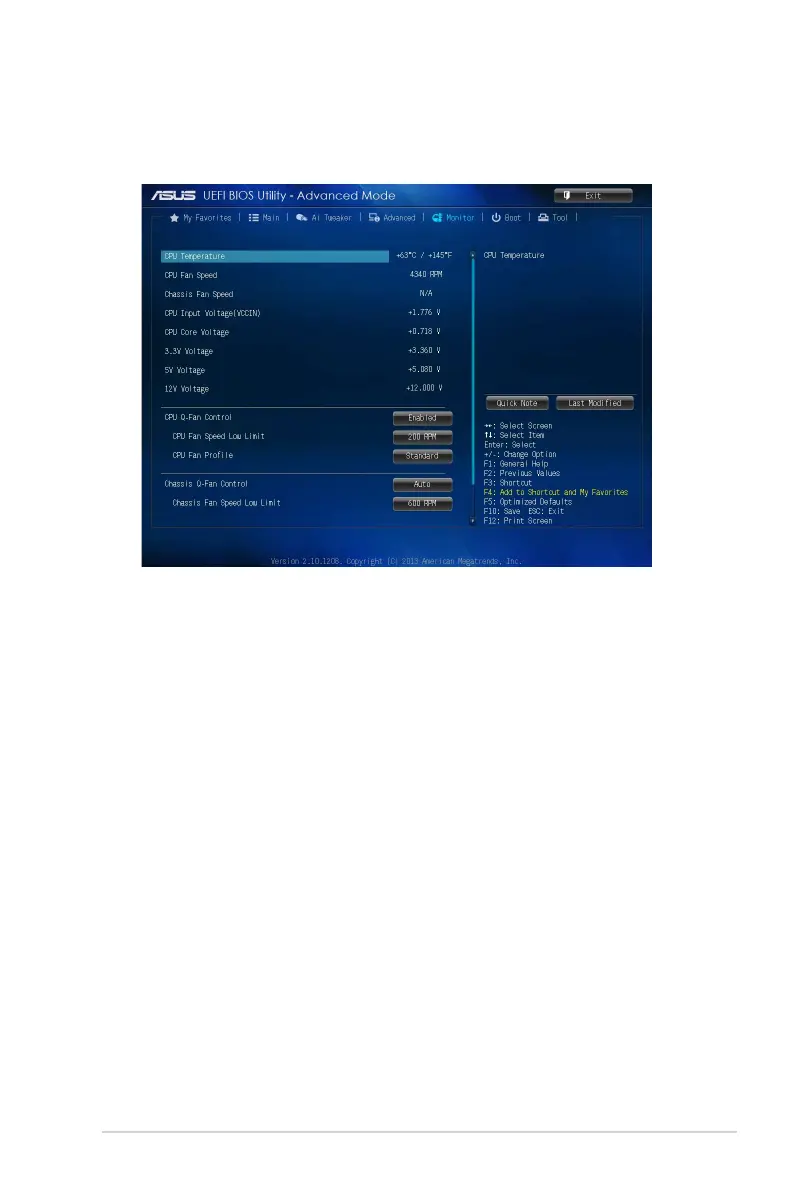

2.7 Monitor menu
The Monitor menu displays the system temperature/power status, and allows you to change
the fan settings.
2.7.1 CPU Temperature [xxxºC/xxxºF]
The onboard hardware monitor automatically detects and displays the CPU temperature.
Select Ignore if you do not wish to display the detected temperature.
2.7.2 CPU / Chassis Fan 1/2 Speed [xxxx RPM] or [Ignore] /
[N/A]
The onboard hardware monitor automatically detects and displays the CPU / chassis fan
1/2speeds in rotations per minute (RPM). If the fan is not connected to the motherboard, the
eld shows N/A. Select Ignore if you do not wish to display the detected speed.
2.7.3 CPU Input Voltage (VCCIN), CPU Core Voltage, 3.3V
Voltage, 5V Voltage, 12V Voltage
The onboard hardware monitor automatically detects the voltage output through the onboard
voltage regulators. Select Ignore if you do not want to detect this item.

Asus Q87T Specifications

General

Form Factor	Mini-ITX
Socket	LGA 1150
Chipset	Intel Q87
Memory Slots	2
Max Memory	16 GB
Memory Type	DDR3
Memory Standard	DDR3 1600/1333/1066 MHz
PCI Express x16	1
mini-PCIe	1
SATA 6Gb/s	4
USB 3.0	4
USB 2.0	6
LAN	Intel I217LM Gigabit LAN
CPU Support	4th Gen Intel Core i7/i5/i3/Pentium/Celeron
Audio	Realtek ALC887 8-Channel High Definition Audio
Video Outputs	HDMI, DVI-D, DisplayPort
Internal I/O Ports	1 x USB 3.0 header (supports 2 USB 3.0 ports)
